Description
Overview
The Universal Rack Mount Cat6 Patch Panel sets you ready for high bandwidth 10-Gigabit Ethernet in the future without re-cabling.
These patch panels are certified for 250Mhz Category 6, which are perfect for Copper Gigabit Ethernet connections. It is ideal for Ethernet, Fast Ethernet and Copper Gigabit Ethernet (1000Base-T) network applications.
Available in 12, 24 and 48 port of 1U and 2U configurations, metal or plastic duct/cover, for horizontal or vertical installation.
Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 Standards. New version 110D IDC type terminal blocks. Color-coded labeling for T568A and T568B wiring schemes. Compatible with Cat. 3, 4, 5, 5e, and 6 cabling

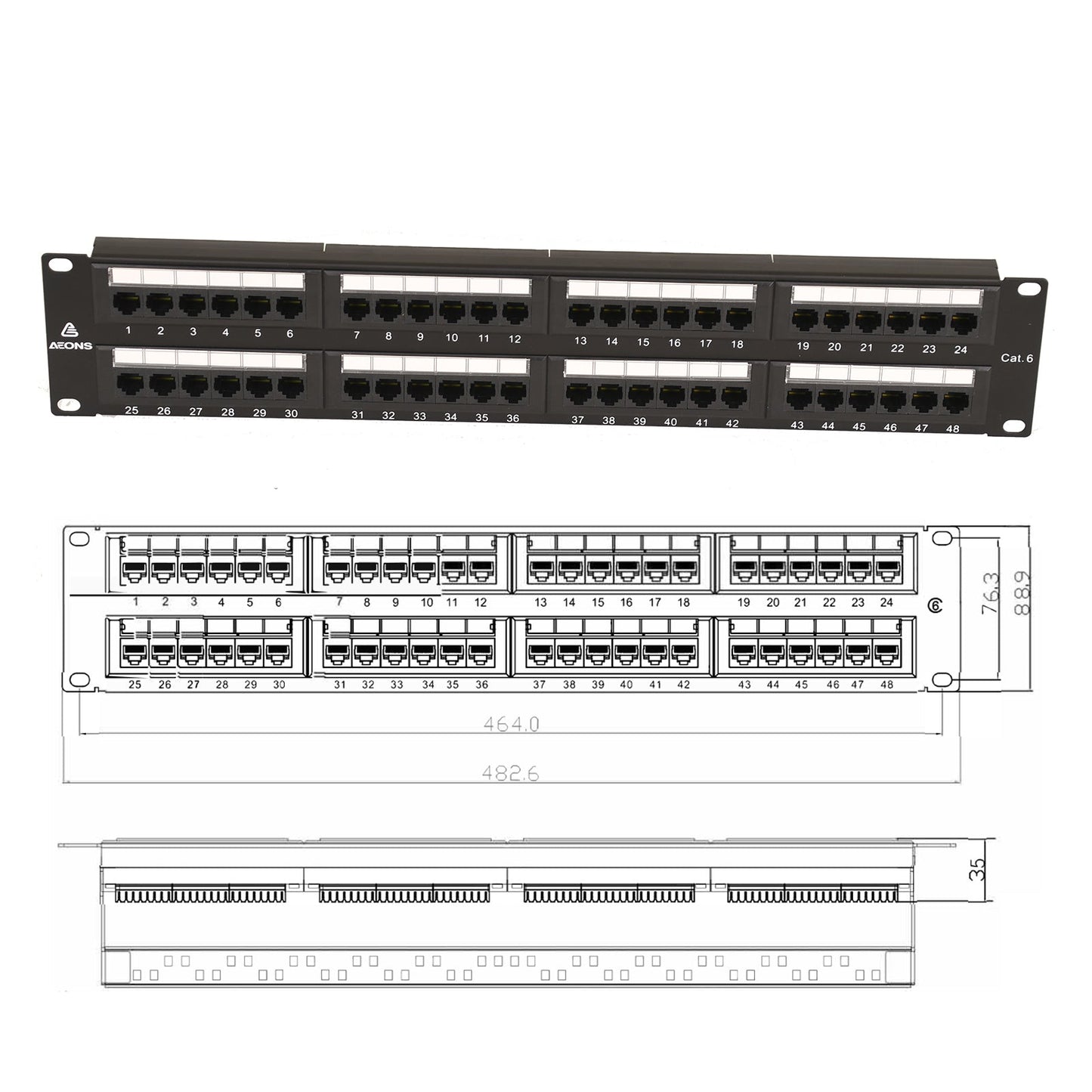

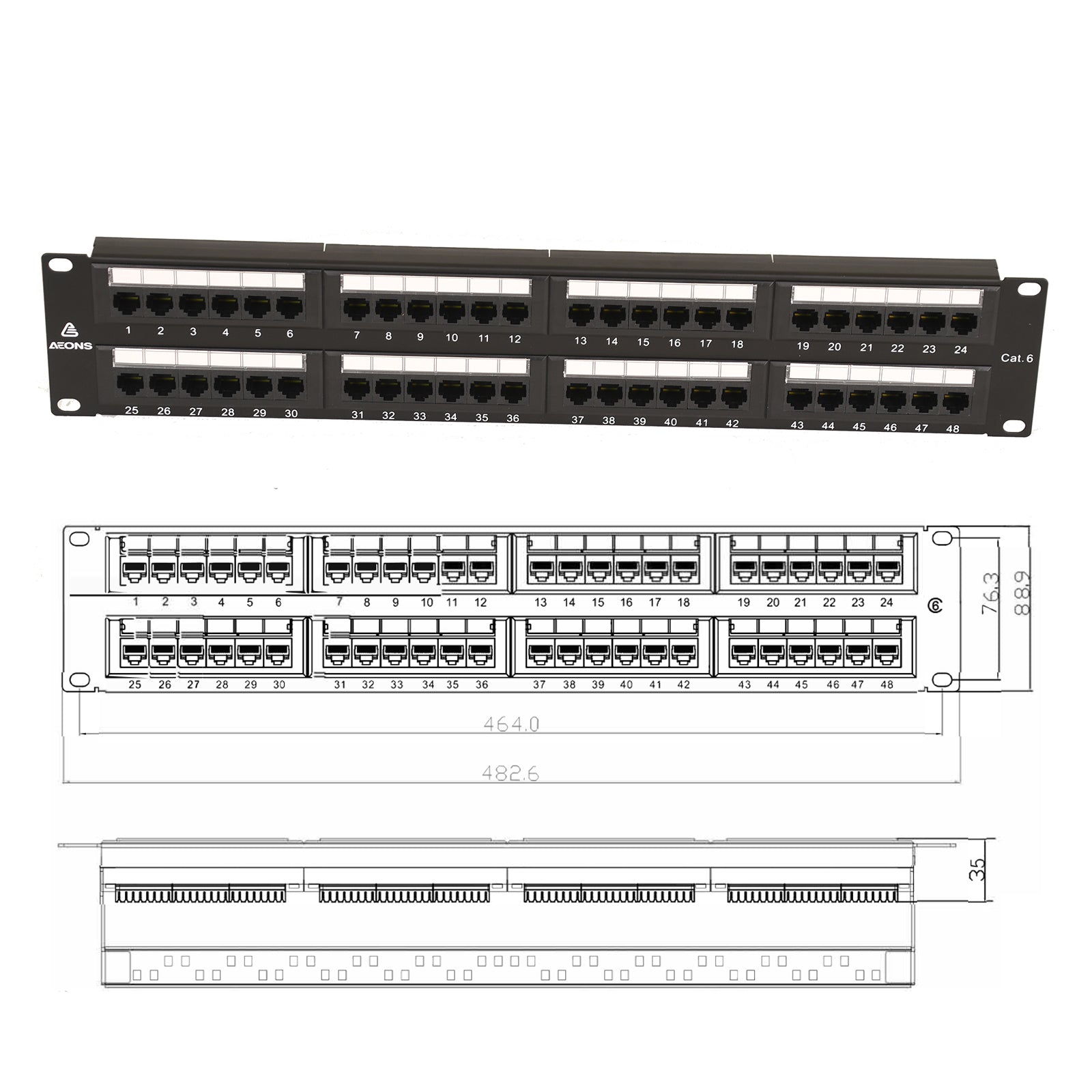

- Heavy duty made and easy Installation of this 48-port patch panel in universal 19" EIA compatible racks, cabinets, or wall mount brackets with 2U (3.5") standard height
- Future-proof your network connection for 10-Gigabit Ethernet with durable RJ45 patch panel, perfect for Copper Gigabit Connections. Made for CAT 6 cabling, backwards compatible with Cat 5e and Cat 5 cabling.

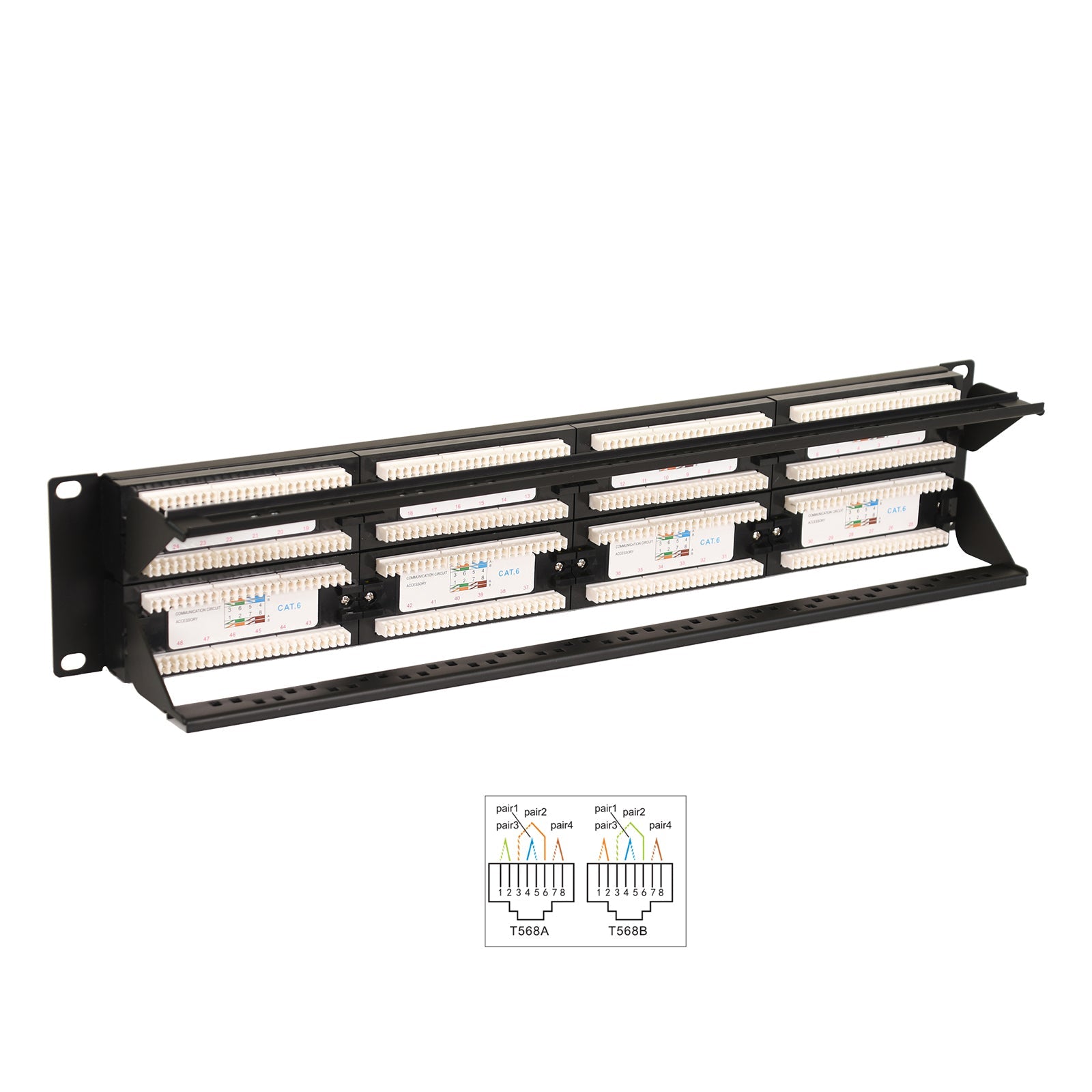

- Color-coded T568A and T568B wiring diagram for and quick reference. Gold plated contacts ensure a correction free connection.

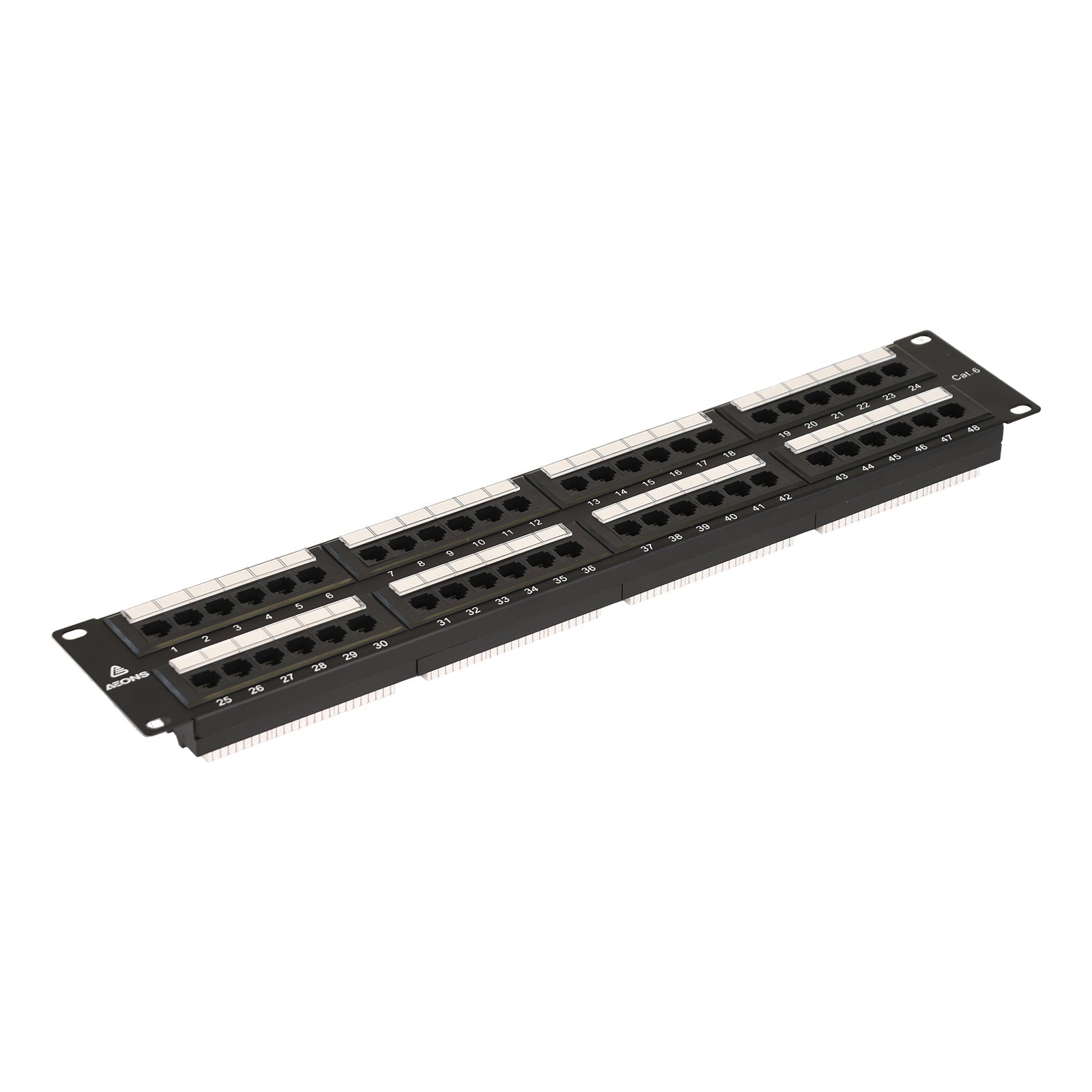

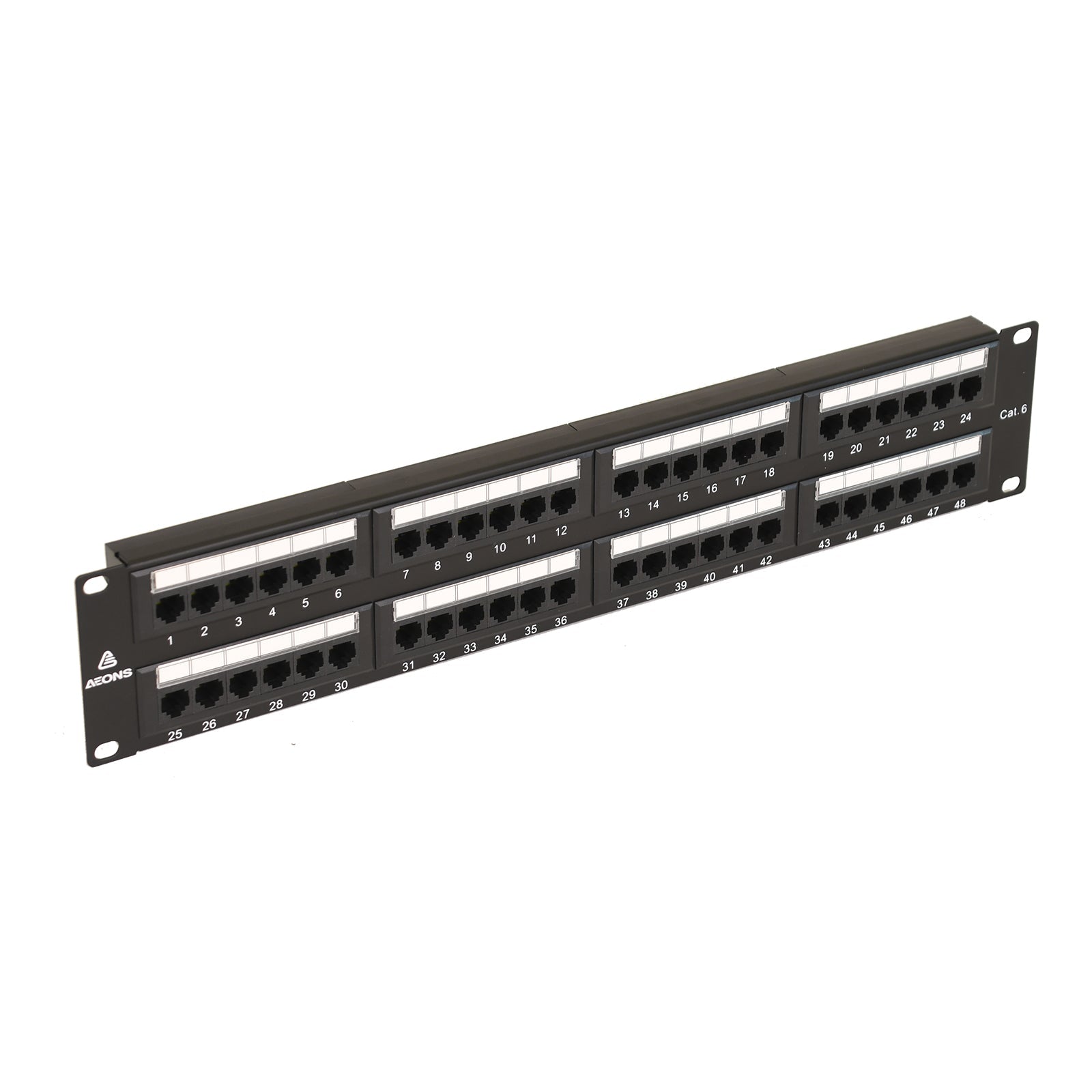

- Easy identification of cable runs with bold numbered ports, organized in groups of 6.

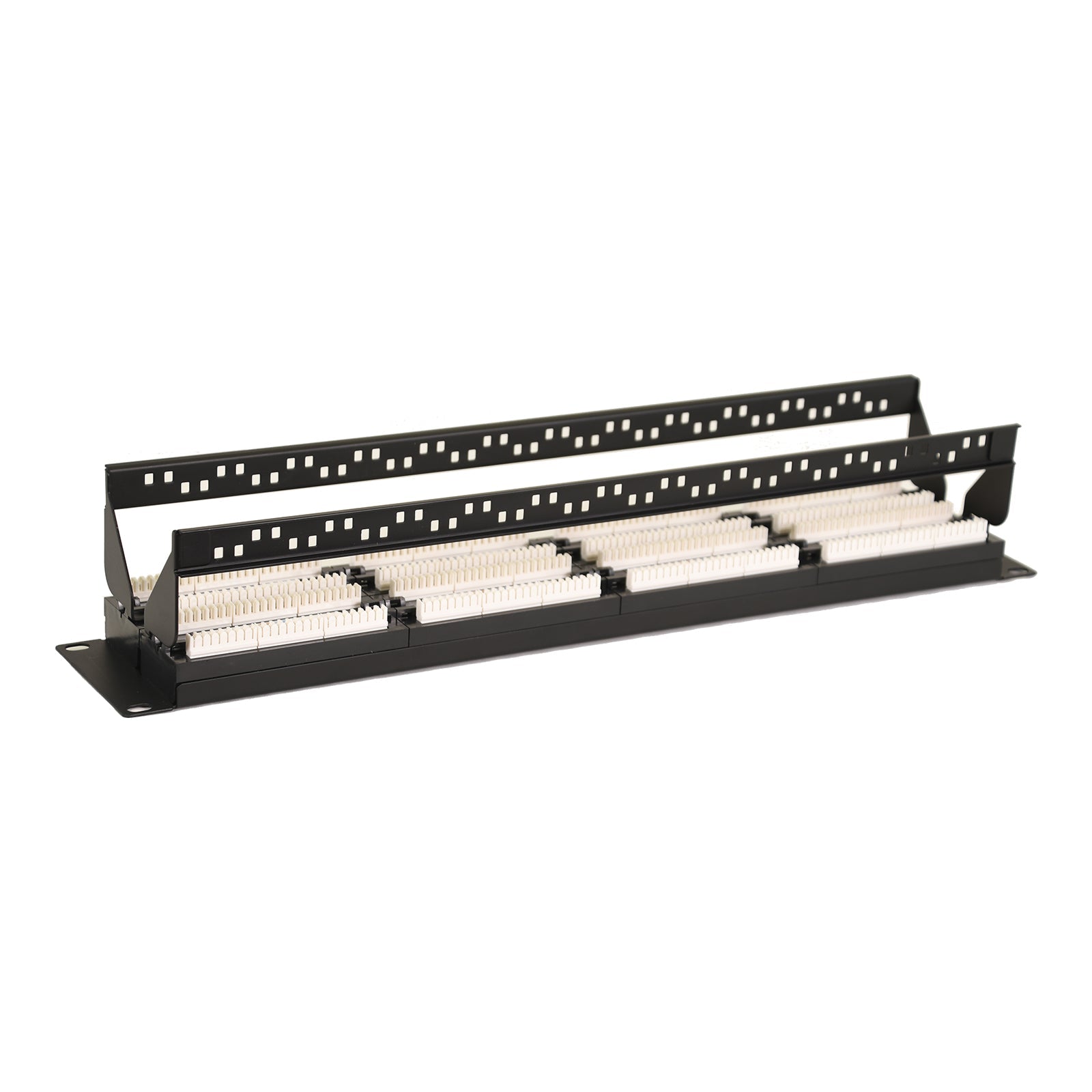

- Rear Cable Management is designed with built-in strain relief bar to secure cable terminations and optimal cable management.
Features
Easy Installation and Accessibility
- Ready to mount with included mounting hardware to a standard 19-inch or 10-inch rack.
- Offers 10-Gigabit Ethernet performance in compliance with the TIA/EIA standard and is backward compatible with previous cabling.

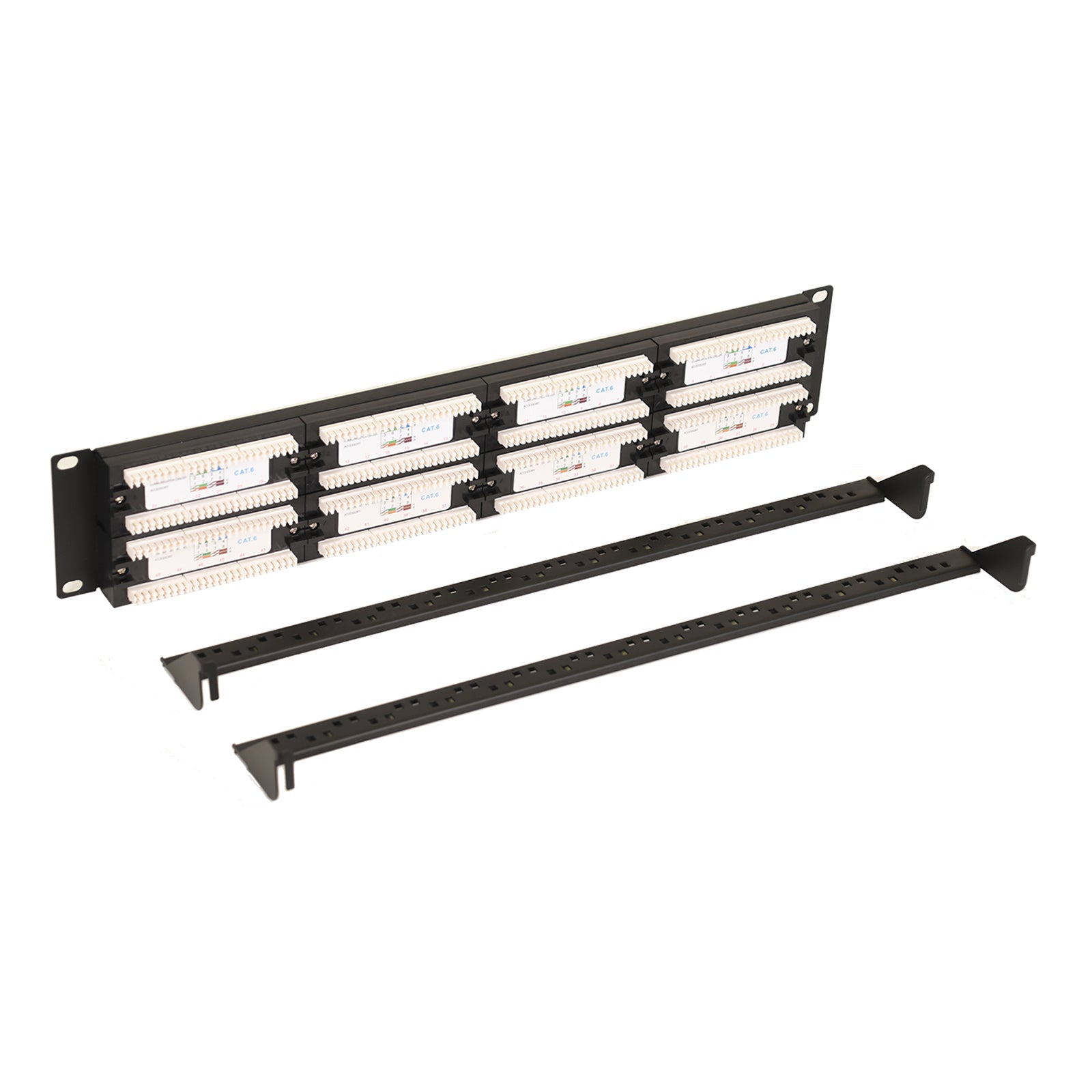

- Designed for rack mount, wall mount, or cabinets and use the build-in Strain relief bar to secure cable termination and reduce cable clutter.
Quality Construction and Durable Solution
- Made of high-quality material. 180-degree patch panel constructed with SPCC 1.5mm steel. Gold-plated RJ45 contacts with pre-umbered ports and label spaces for hand-written or machine-printed labels.
- T568A and T568B labels. Durable IDC terminals and printed circuit board improves signal transmission.
Future-Proof Speed and Reliable Connectivity
- Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 Standards

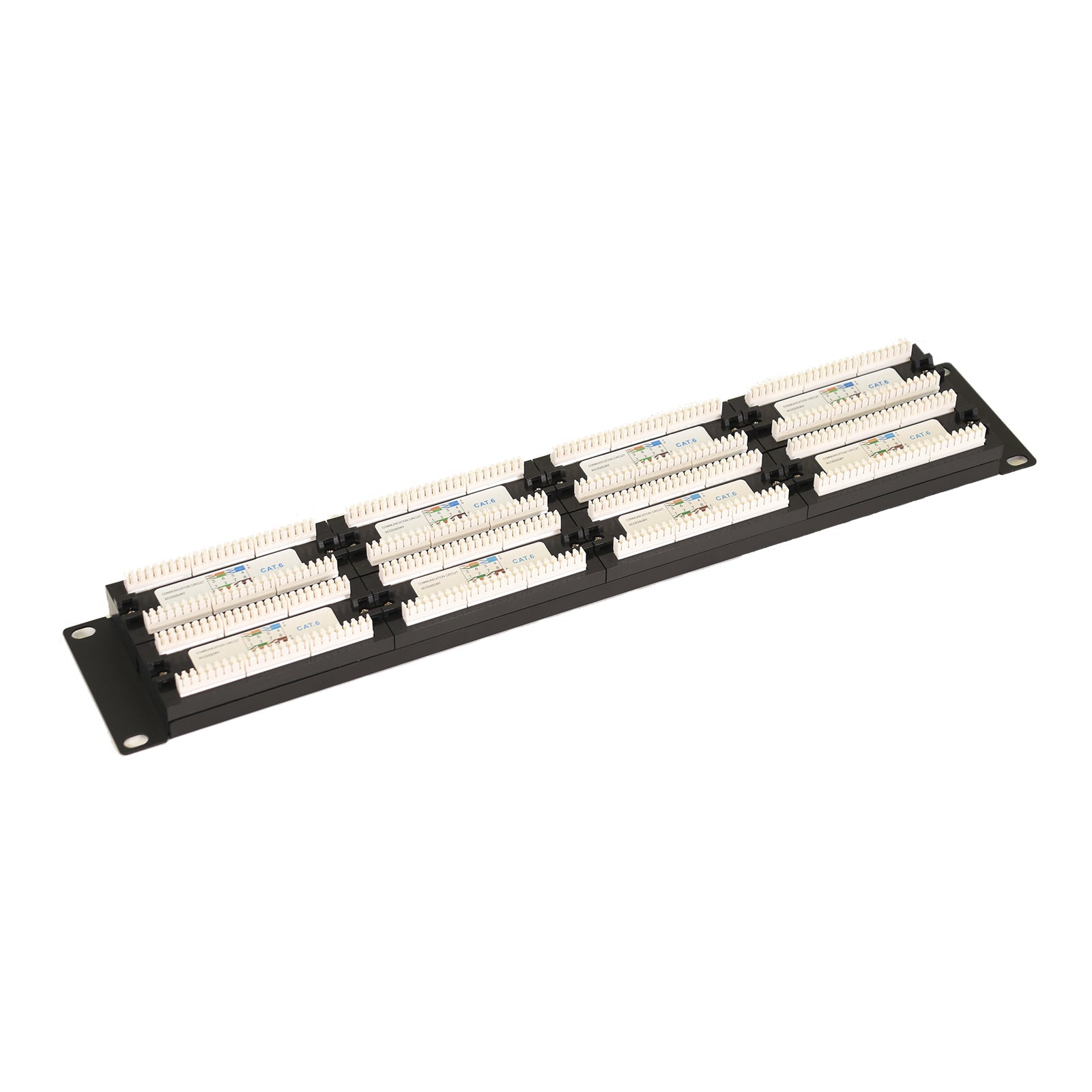

- New version 110D IDC type terminal blocks
- Color-coded labeling for T568A and T568B wiring schemes
- 180° angle type (horizontal)
- 1000Base-T Copper Gigabit Ethernet ready
- Compatible with Cat. 3, 4, 5, 5e, and 6 cabling
- Operating temperature: -40° ~ 80° C (-40° ~ 176° F)
Specification
|
Model |
SW-UTPCAT6PP48-2U |
|
Type |
Patch Panel |
|
Style |
Horizontal 19" |
|
Rack Height |
2U |
|
Rack Depth (in. / mm) |
N/A |
|
Maximum Device Depth (in. / mm) |
N/A |
|
Front Door Type |
N/A |
|
Load capacity (lbs) |
N/A |
|
Number of vertical mounting rails |
N/A |
|
Number of L brackets |
N/A |
|
Shelves |
No |
|
Cable access |
N/A |
|
Unit Dimensions (H x W x D / in.) |
|
|
Unit weight (lbs) |
|
|
Shipping Dimensions (H x W x D / in.) |
|
|
Shipping weight (lbs) |
|
|
Color |
Black |
|
Grounding lug |
No |
|
Grounding Wire kit |
No |
|
Built-in cable management |
No |
|
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E |
|
Warranty Period |
10-year limited warranty |
