Description
Overview

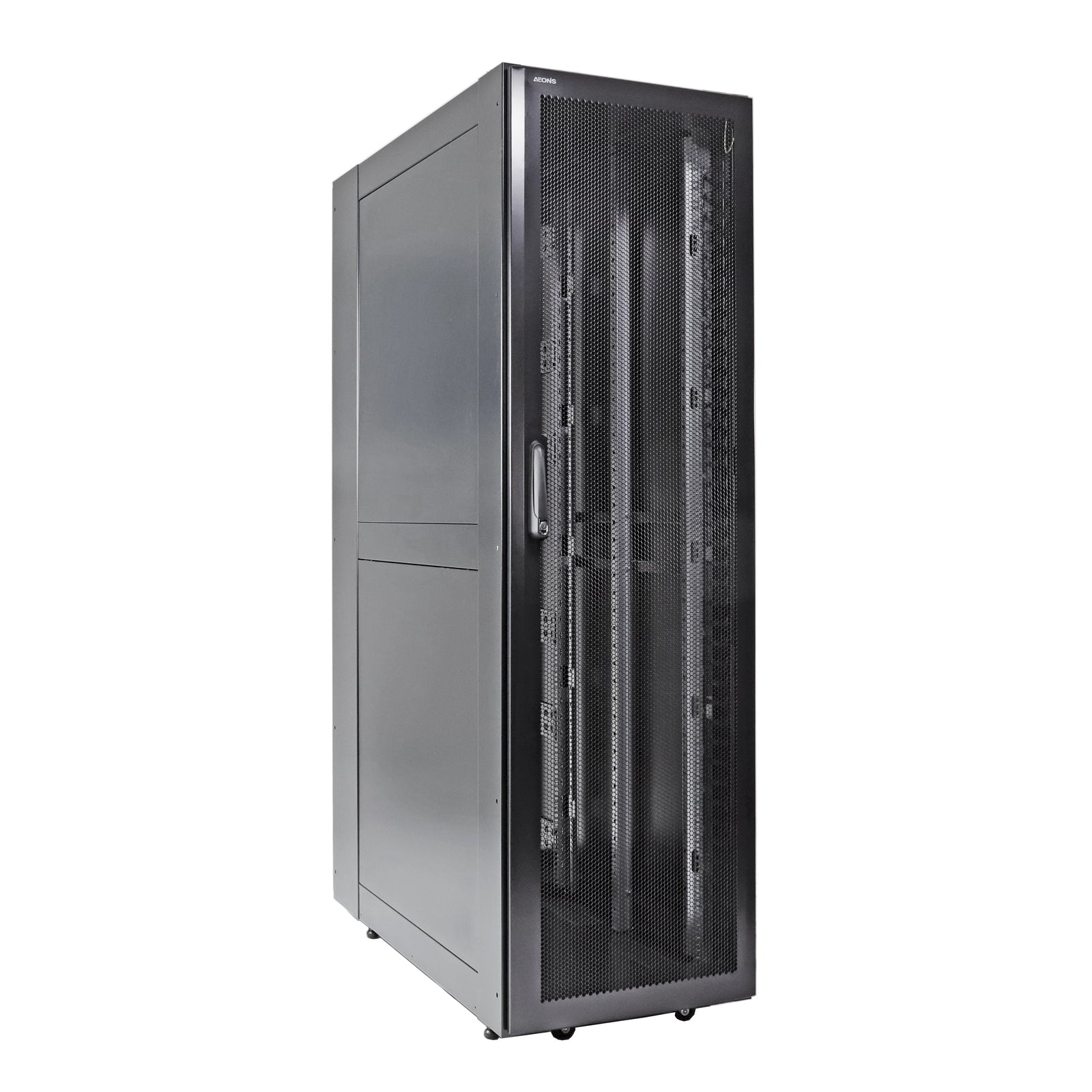

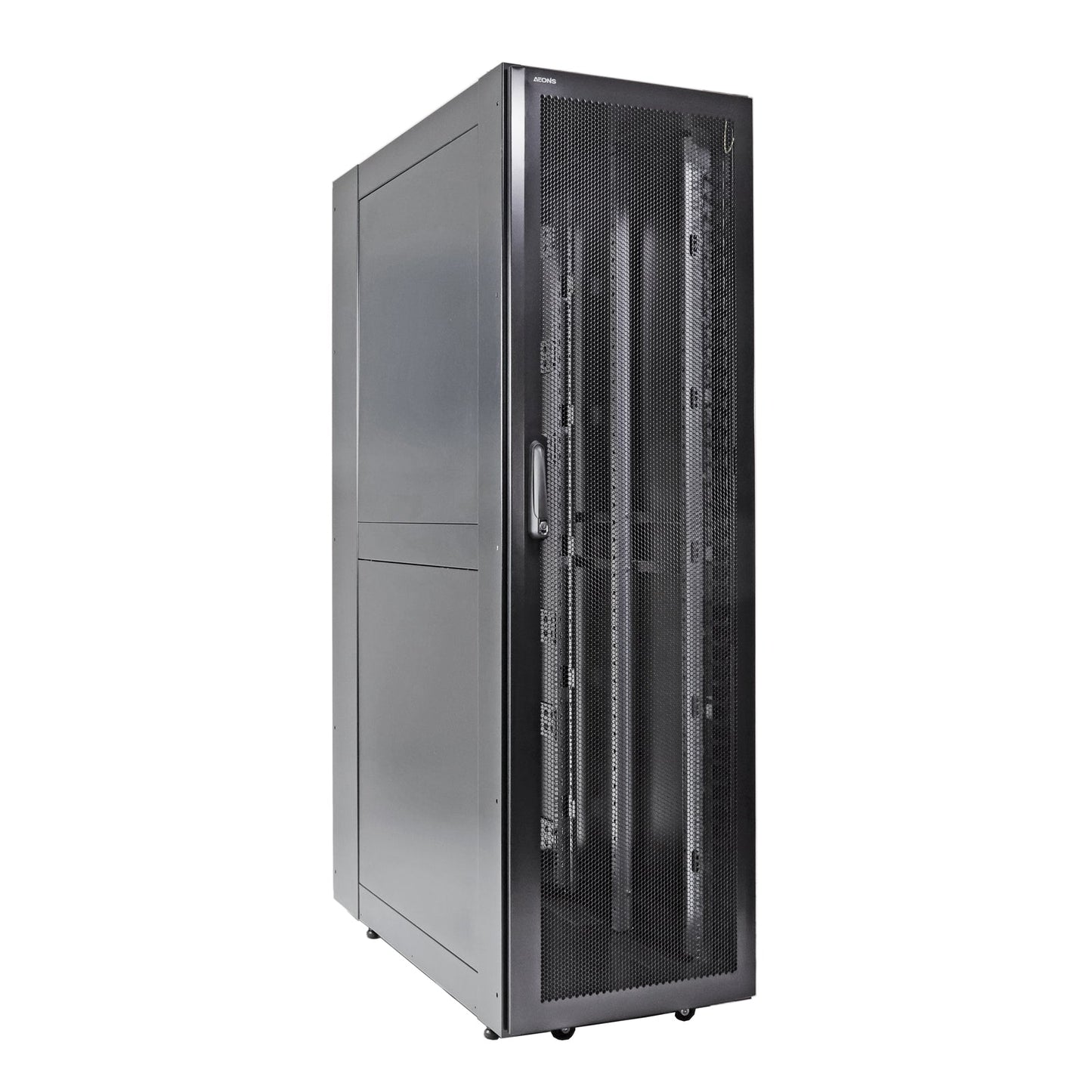

Aeons PF rack enclosures are versatile and feature-rich enclosures engineered for demanding IT environments, including high-density and remote edge environments. These enclosures features enhance frame design, easier equipment rail adjustment, efficient accessory and cable organization, smarter air flow management to facilitate a faster installation, greater flexibility and reduced operating costs.
Best-in-class energy efficiency design
- Innovative AirSeal design for unparalleled cooling performance.
- All cable entry openings come with TrimSleeve grommet for optimized airflow management.
- Support high-density networking applications with easy installation and faster deployment.
Robust and versatile design for maximum flexibility
- Innovative lightweight frame structure design for enhanced stability tested for 4,400 lb (2,000 kg) static and 2,700 lb (1,200 kg) dynamic load rating.
- Tailored solutions with prebuilt or knock-down options to meet demands of any deployment situation.
- Customizable dimensions to fit various IT equipment requirements.
Advanced accessory and Cable management solutions
- Spacious accessory channels and mounting brackets enable zero-U flexible installation of PDUs, cable organizers and other accessories.
- Integrate with vertical finger cable managers and pass-through holes, with TrimSleeve grommets for routing cabling from front-to-back or to adjacent racks in a row while still maintaining proper airflow.
Features
Secure and Flexible

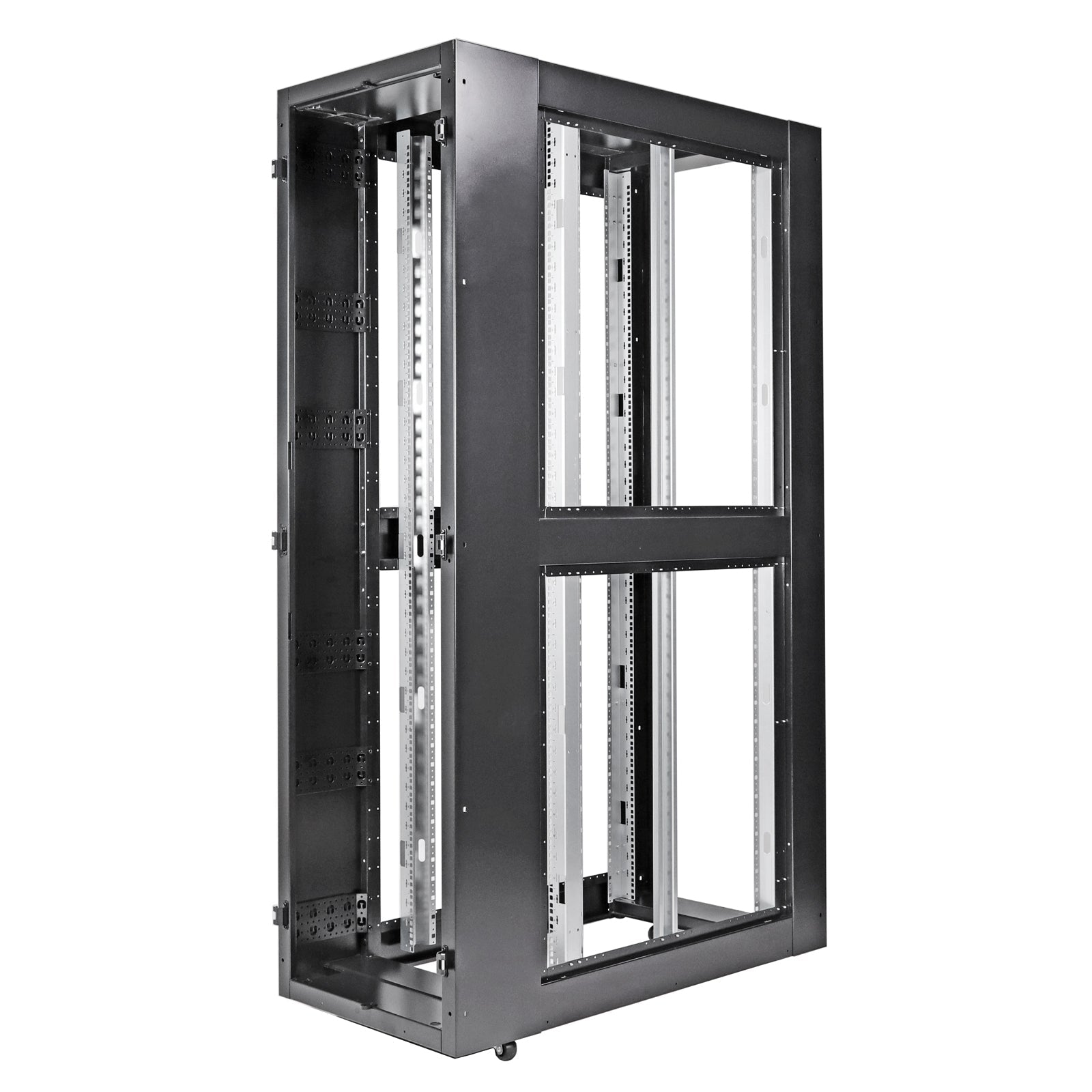

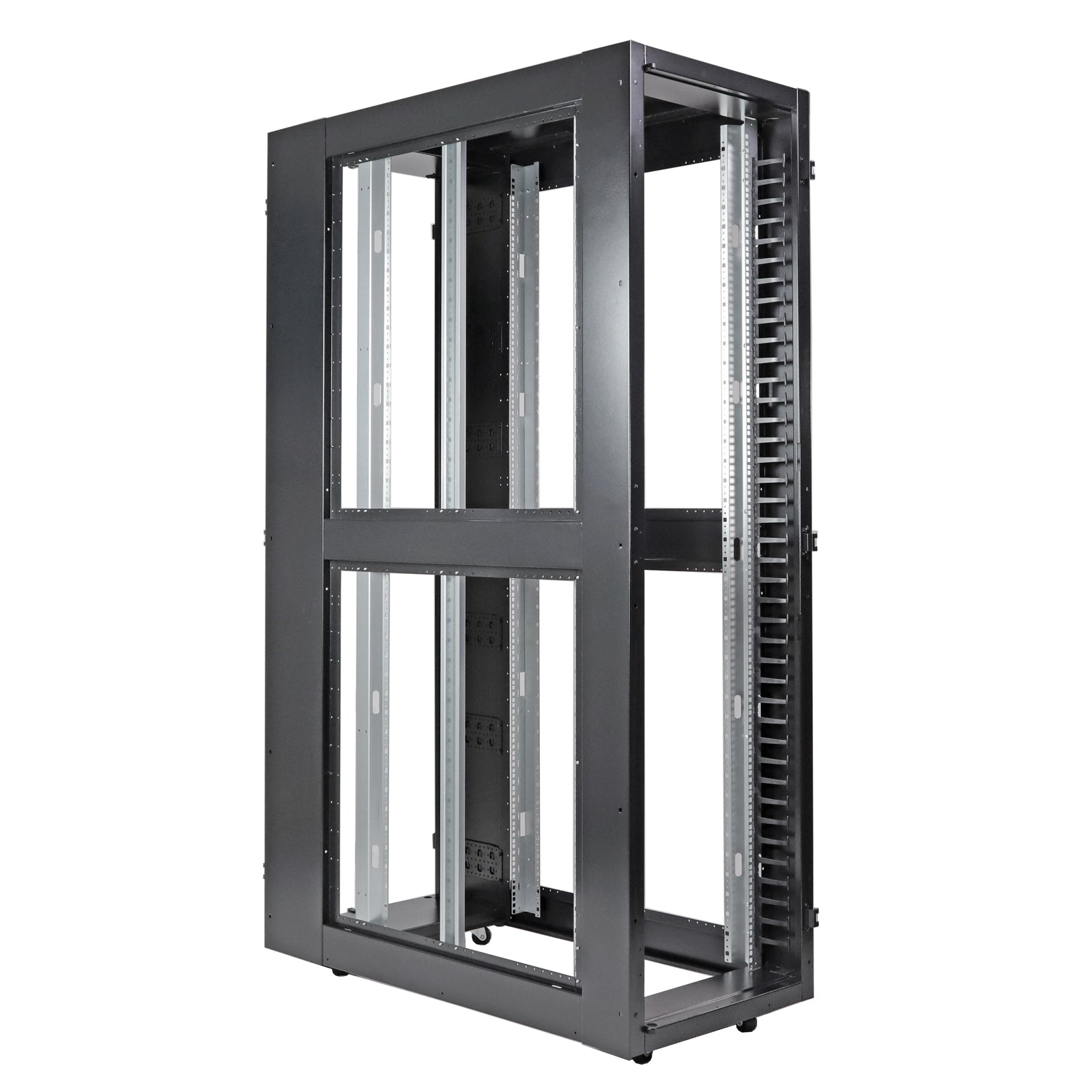

- Innovative lightweight frame structure design for enhanced stability and strength.
- Heavy gauge mounting rails. (
- Tested and approved for 4,400 lb (2,000 kg) static on leveling feet and 2,700 lb (1,200 kg) rolling load on casters. (Enclosure has been tested and approved to be combined with proper bolt down accessories to meet various seismic requirements.)
Energy efficiency
- Built-in front and rear AirSeal design form complete seal around the sides for high efficiency cooling performance*
- Cable entry openings come with TrimSleeve grommet for cable passthrough and provisions for airflow management.

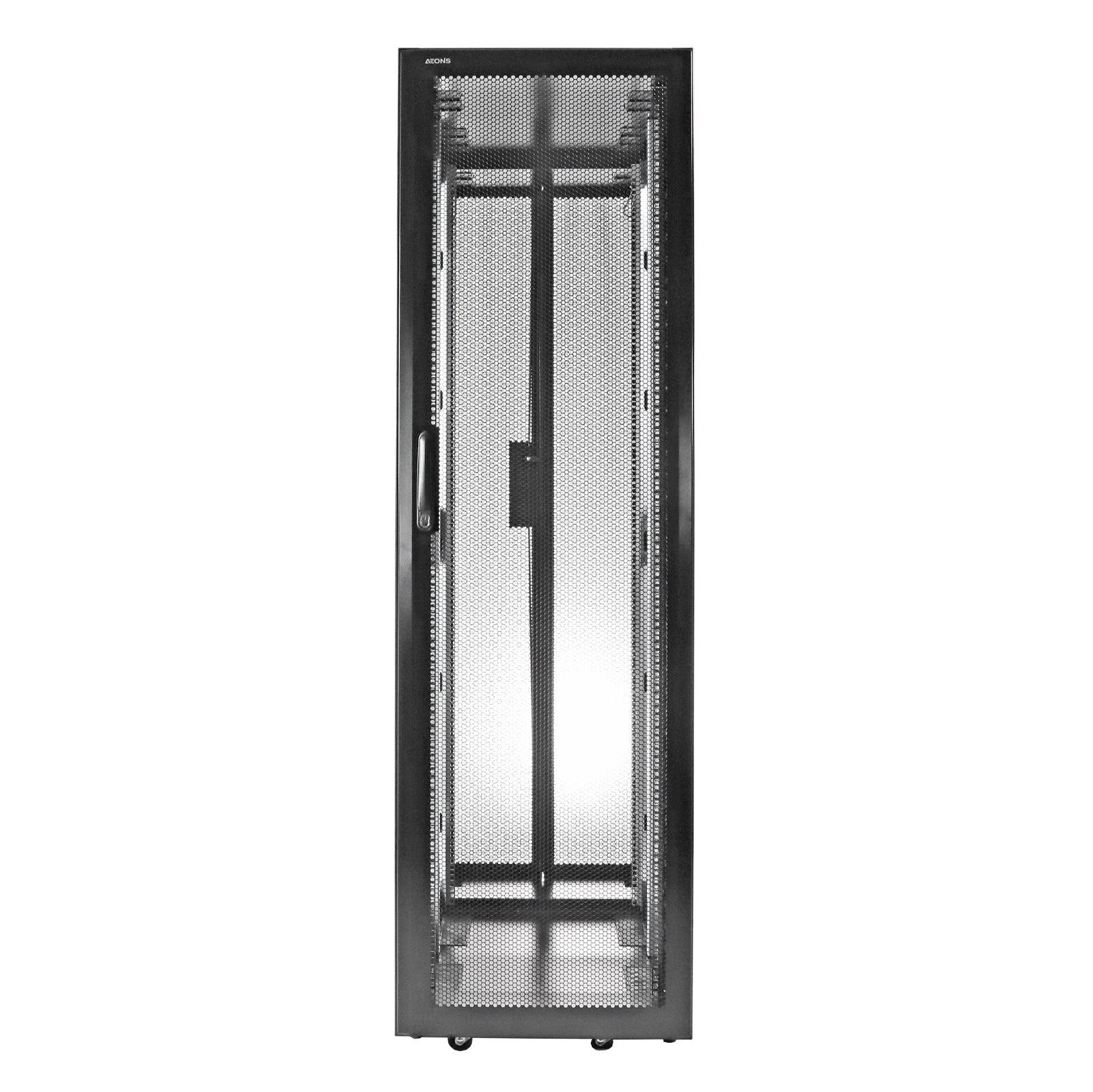

- Perforated front and rear doors optimized for increased ventilation of servers and networking equipment. Perforation rates up to 78%.
Accessory and Cable management
- The full-enclosure height rear accessory channels offer zero-U flush mounting of PDUs, cable organizers and other accessories.
- Mounting rails and enclosure frames integrate with vertical finger cable managers and pass-through holes, with TrimSleeve grommets for routing cabling from front-to-back or to adjacent racks in a row while still maintaining proper airflow.
- 32in (800mm) wide cabinets include zero-U mounting holes besides the EIA 19” mounting space for installation of airflow and cable management accessories.
Modular and Scalable
- Equipped with most standard features that streamline installation and speed up deployment.
- Available in a wide range of heights, widths, and depths, customized up to 55U/2550mm to fully utilize space.
- Built-in baying on front and back frames. Aisle containment design compatible.
Leveling feet and castors
- Leveling feet easily adjustable from within the enclosure. (Leveling feet can be quickly adjusted using a screwdriver or drill from above, eliminating the need to access them from underneath with a wrench.)
- Standard or heavy-duty castors on all enclosures shipped. (Enclosures are shipped standard with both leveling feet and castors.)
Specification
|
Model |
PF6242 |
|
Type |
Enclosure |
|
Style |
Floor-Standing |
|
Rack Height |
42U |
|
Rack Depth (in. / mm) |
47.2 / 1200 |
|
Maximum Device Depth (in. / mm) |
43.3 / 1100 |
|
Front Door Type |
Vented |
|
Load capacity (lbs) |
4,400 |
|
Number of vertical mounting rails |
4 |
|
Number of L brackets |
N/A |
|
Shelves |
N/A |
|
Cable access |
Top, Bottom |
|
Unit Dimensions (H x W x D / in.) |
81 x 23.6 x 47.5 |
|
Unit weight (lbs) |
245 |
|
Shipping Dimensions (H x W x D / in.) |
87 x 28 x 52 |
|
Shipping weight (lbs) |
291 |
|
Color |
Black |
|
Grounding lug |
Yes |
|
Grounding Wire kit |
Yes |
|
Built-in cable management |
Yes |
|
Compliance |
RoHS, CE, EIA/ECA-310-E, IP22 Protection |
|
Warranty Period |
10-year limited warranty |
Q&A
Other Standard Features:
Integrated electrical grounding: the roof, bottom, side panels and front and rear doors are grounded to the frame of the enclosure. Additional grounding inserts are provided for external grounding.

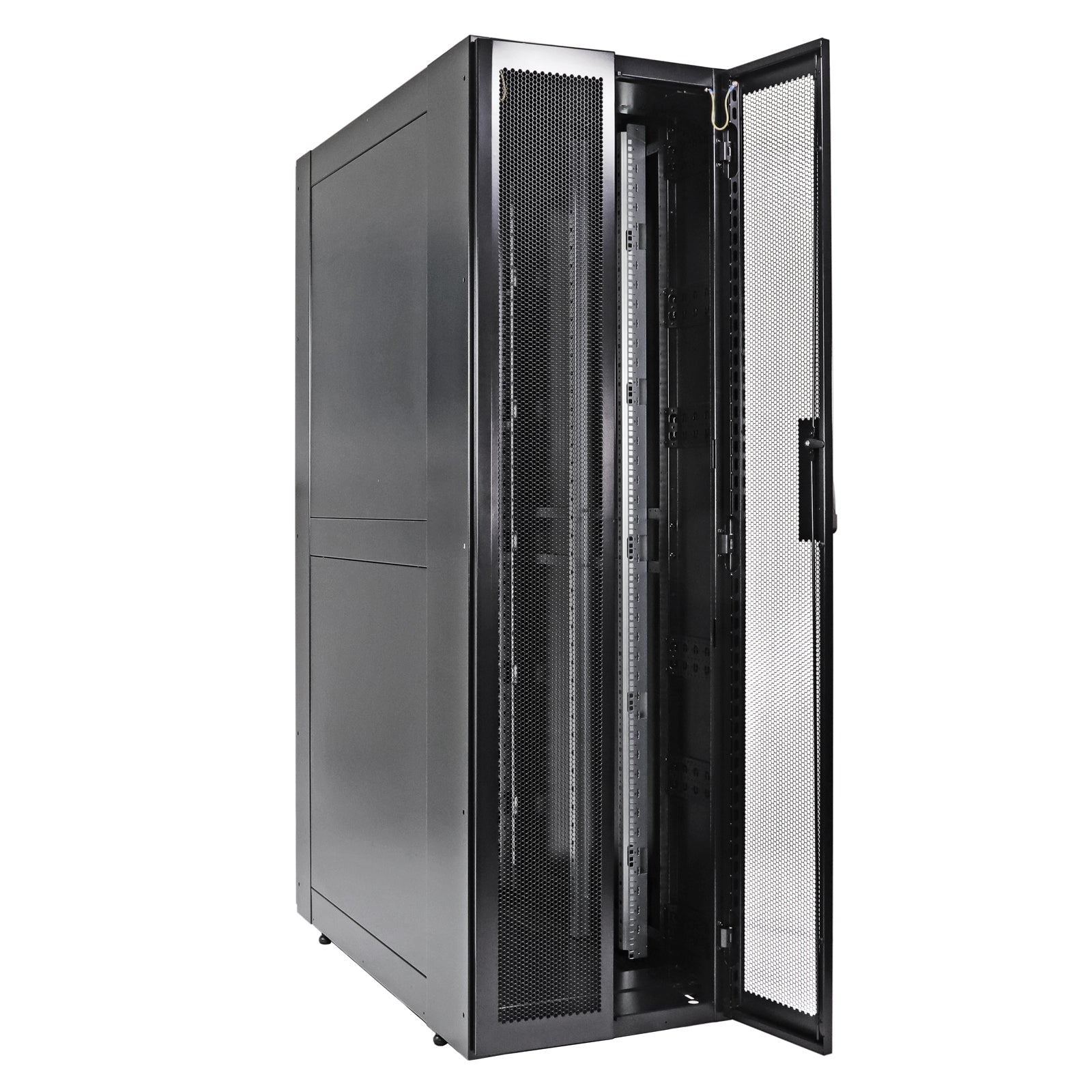

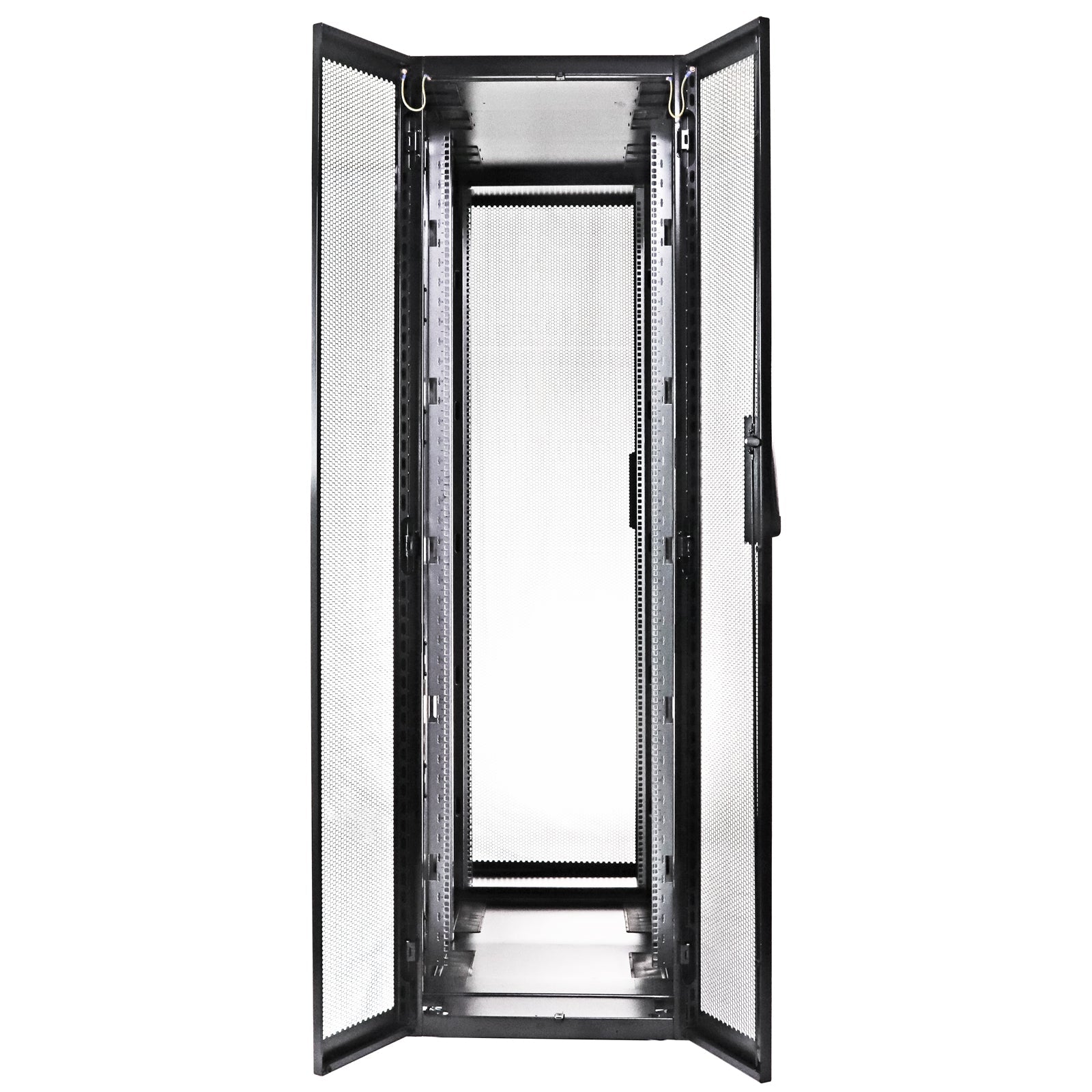

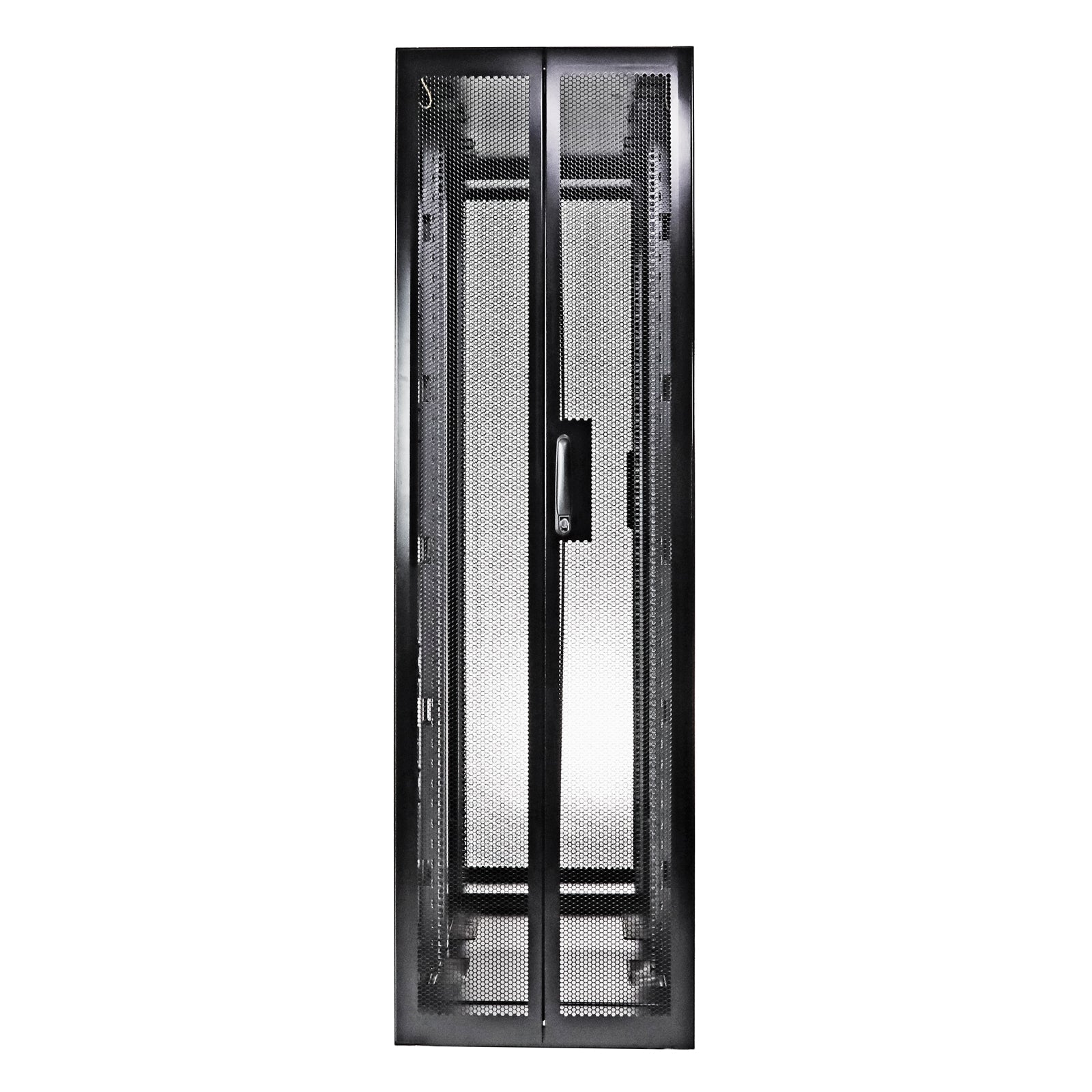

Ventilated front and rear doors: Both front and rear doors feature ample perforations up to 78% to allow for optimal ventilation to keep your equipment cool. Split rear doors for better clearance and easy layout.
Adjustable mounting rails: The vertical mounting rails can be adjusted in 1/2 in (12.7 mm) increments. U positions are numbered front and back for rapid installation of equipment.
Side panels: half-height side panels for easy handling and access to equipment.

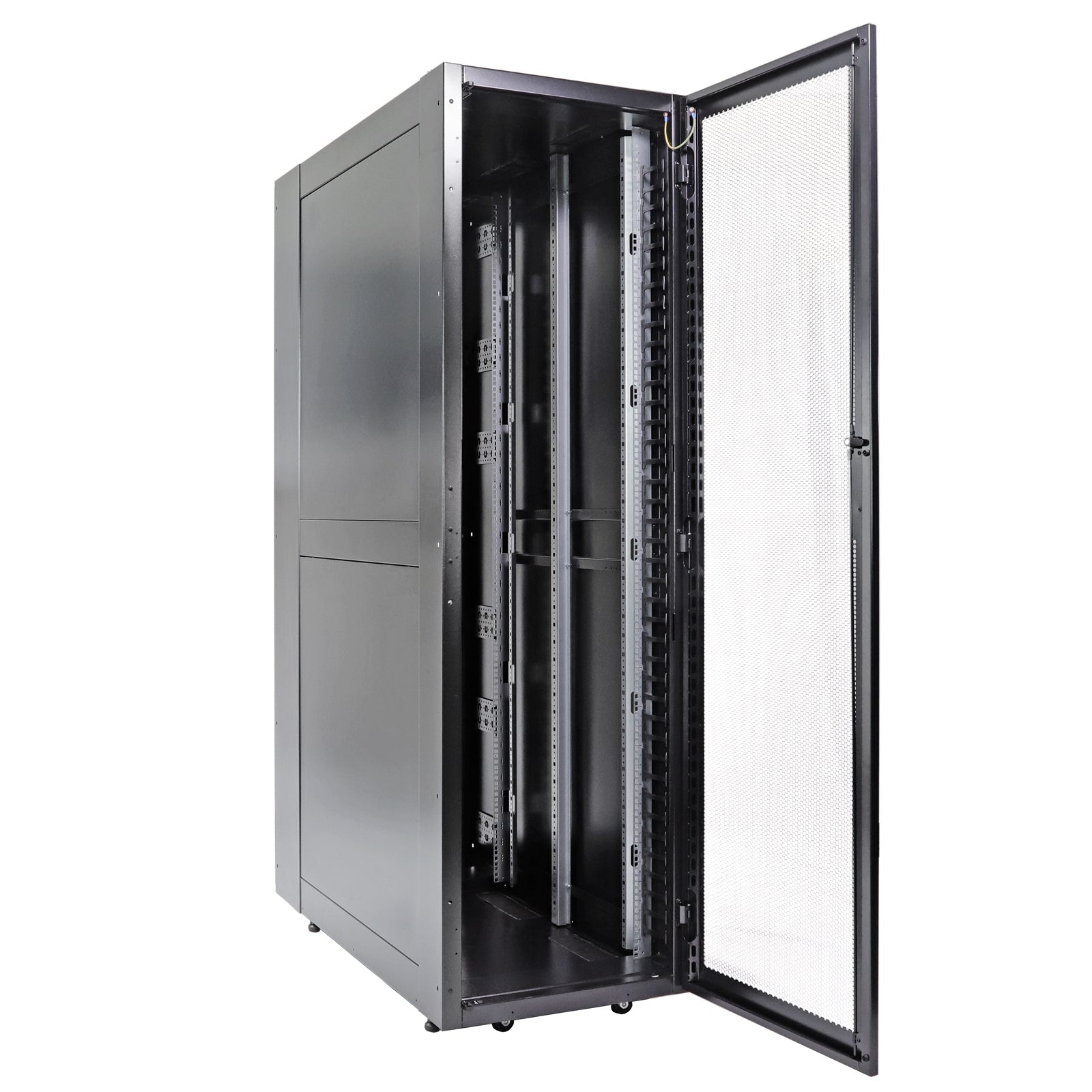

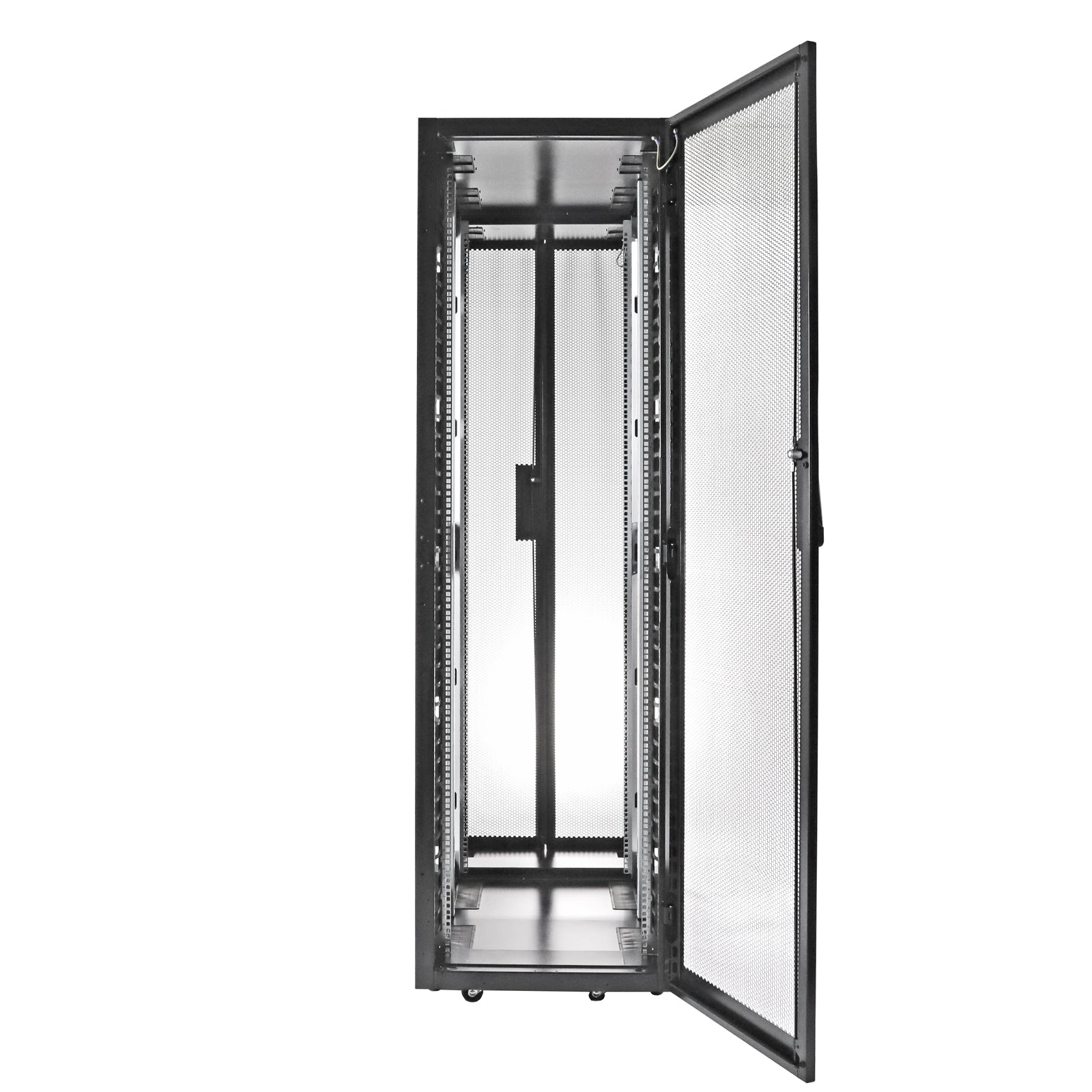

Front and rear doors: Both front and rear doors feature ample perforation to allow for optimal airflow to keep your equipment cool.
Cable Access: Large cable access slots in the roof and bottom panels. All openings come with installed TrimSleeve grommet for cable passthrough and provisions for airflow management.
Eyebolt Holes: Built-in eyebolt holes at the top of the enclosure frame enable easy lifting and repositioning of the enclosure using eyebolt lifting mechanisms.
Compliance: Electronic Industries Association (EIA)/ECA-310-E compliant. Meets IBC® seismic requirements with proper bolt-down hardware.
