Description
Overview

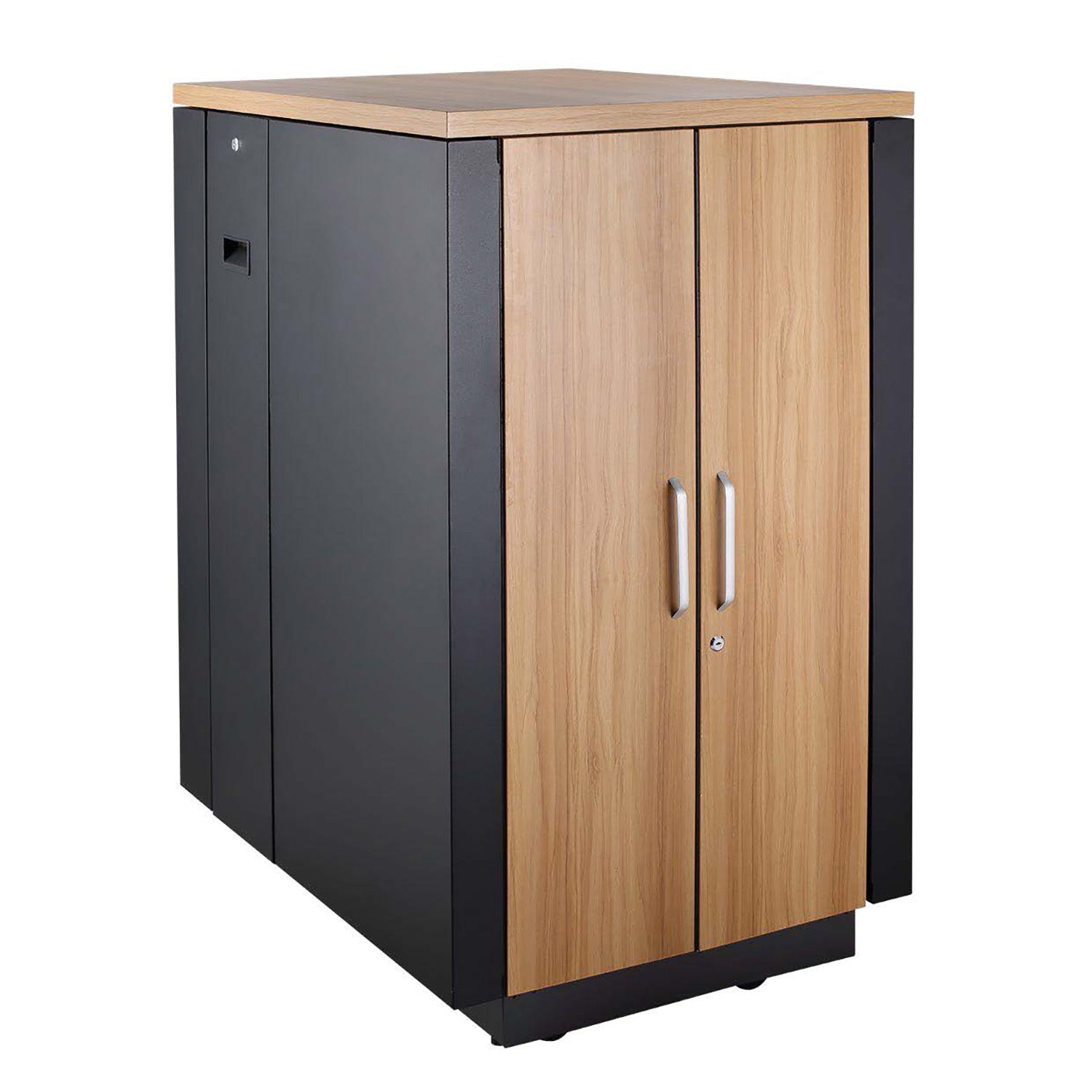

The SSP acoustic server cabinet is engineered to reduce external noise from server and network equipment. Perfect for small offices, studios, retail spaces, classrooms and other settings where equipment organization and noise reduction are important. The SSP acoustic rack features built-in sound-dampening foam baffles on the front and rear doors and side panels, reducing noise levels by up to 28 decibels for a more peaceful and productive work environment. Meanwhile, the unique ventilation design of this server rack maximizes cooling efficiency.- RU heights from 18U to 42U
- up to 28 decibels of equipment noise reduction
- Built-in quiet ventilated cooling system
- Rear and side access panels
- Zero-U rack PDU and accessory channels
- Ships fully assembled for immediate deployment
Features
Noise reduction:
- Sound-dampening design eliminates up to 28 decibels of equipment noise for a quieter workspace.
- Special sound-dampening foam baffles built into the doors and side panels.
Secure and Organize:
- Accommodates all EIA-standard 19-inch rack-mount equipment up to 37 inches deep.
- It has a maximum stationary load capacity of 1,000 pounds (453.6 kilograms) and a rolling load capacity of 1,000 pounds.
- Constructed from heavy-duty steel with a durable black powder-coated finish and a professional MDF overlay that blend seamlessly into any room décor.
Adjustable Mounting Rails:
- Square mounting holes and numbered rack spaces make equipment installation easy.
- The vertical mounting rails adjust in 3/8-inch increments to accommodate equipment up to 37 inches deep.

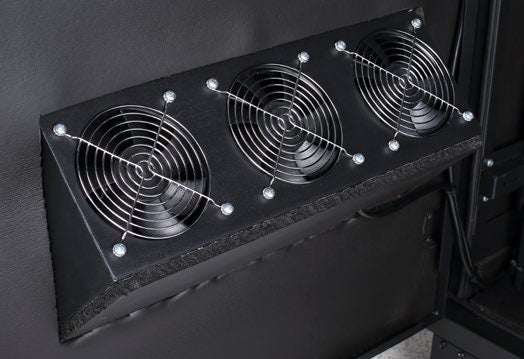

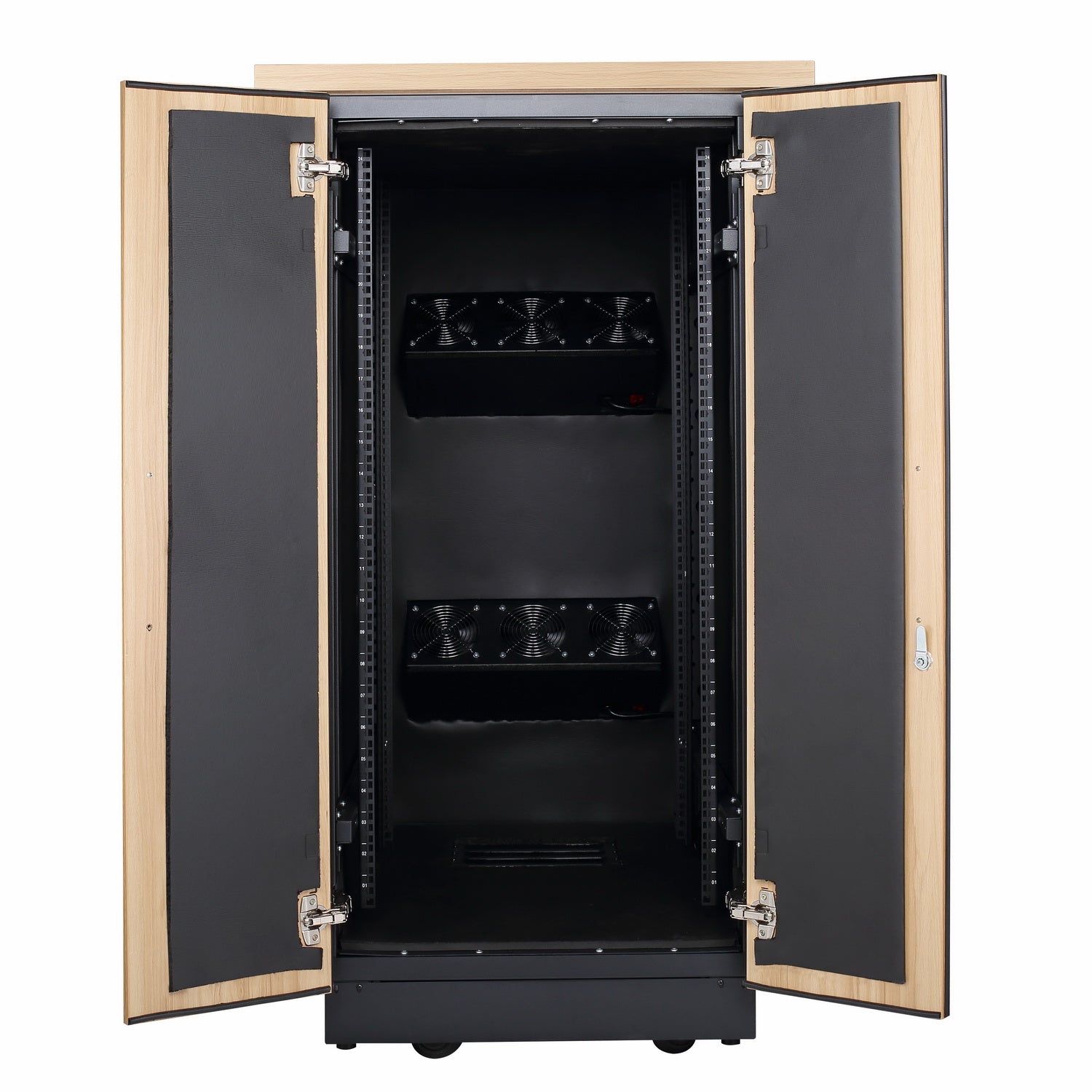

Cooling System:
- Enhanced equipment performance and reliability with floor panel intakes and built-in fans for optimal cooling.
- Unique airflow design maximizes cooling by drawing in cool air through the bottom panel intake, passing it horizontally through the enclosure, and using built-in electric fans to push warm air out through the side panels.
Zero-U Rack PDU:
- Built-in 15A power strip for fan banks as well as connecting other equipment or accessories.
Locking Doors:
- The split front and rear doors lock securely to help prevent tampering or theft.

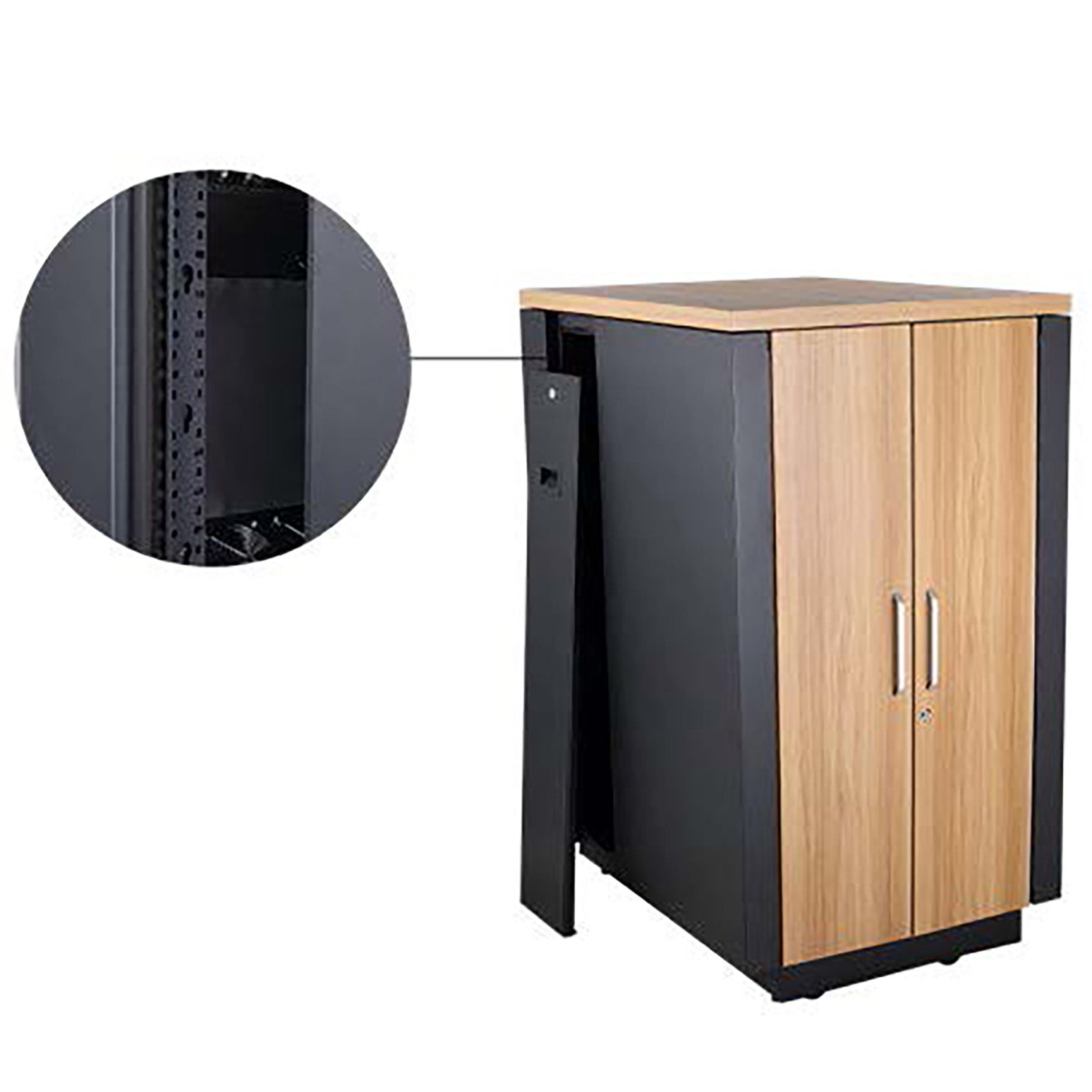

Panels and access:
- Side panels open for equipment installation and maintenance.
Cable Management:
- Vertical zero-U accessory channels located at side at the front, middle, and rear.
- The top and bottom panel cable brush strip allows for easy cable routing while promoting efficient cooling and keeping dust out.
Mobility:
- Pre-installed four heavy-duty castors, front wheels 360-degree rotation, rear fixed for stability.
- Ships Fully Assembled for Immediate Deployment and Equipment Installation
Specification
|
Model |
SSP7118 |
|
Type |
Enclosure |
|
Style |
Floor-Standing |
|
Rack Height |
18U |
|
Rack Depth (in. / mm) |
44.5 / 1130 |
|
Maximum Device Depth (in. / mm) |
34.6 / 880 |
|
Front Door Type |
Solid |
|
Load capacity (lbs) |
1,000 |
|
Number of vertical mounting rails |
4 |
|
Number of L brackets |
N/A |
|
Shelves |
N/A |
|
Cable access |
Bottom, Side |
|
Unit Dimensions (H x W x D / in.) |
42.5 x 29.5 x 44.5 |
|
Unit weight (lbs) |
|
|
Shipping Dimensions (H x W x D / in.) |
|
|
Shipping weight (lbs) |
|
|
Color |
MDF |
|
Grounding lug |
Yes |
|
Grounding Wire kit |
Yes |
|
Built-in cable management |
Yes |
|
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E, IP20 Protection |
|
Warranty Period |
10-year limited warranty |
