Description
Overview

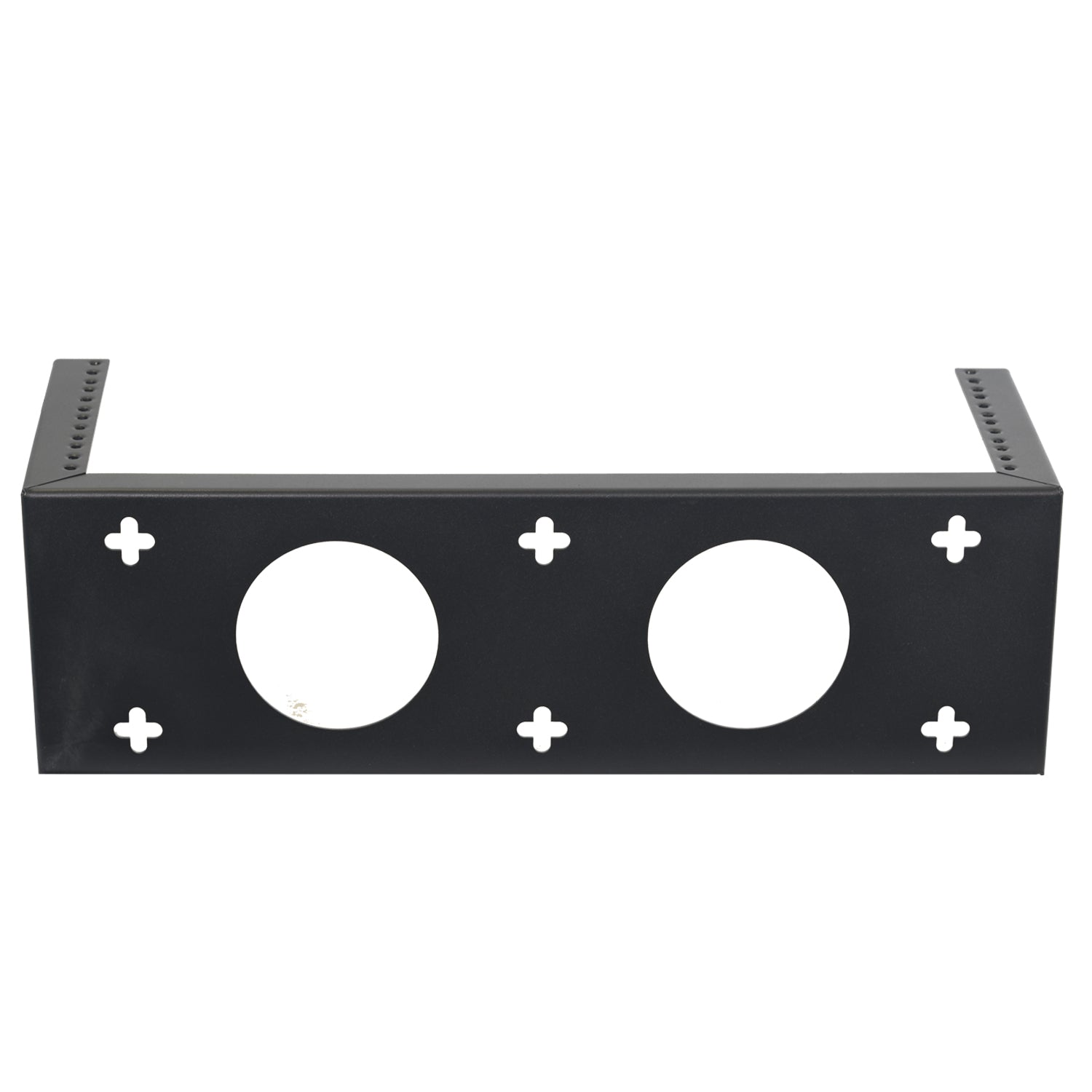

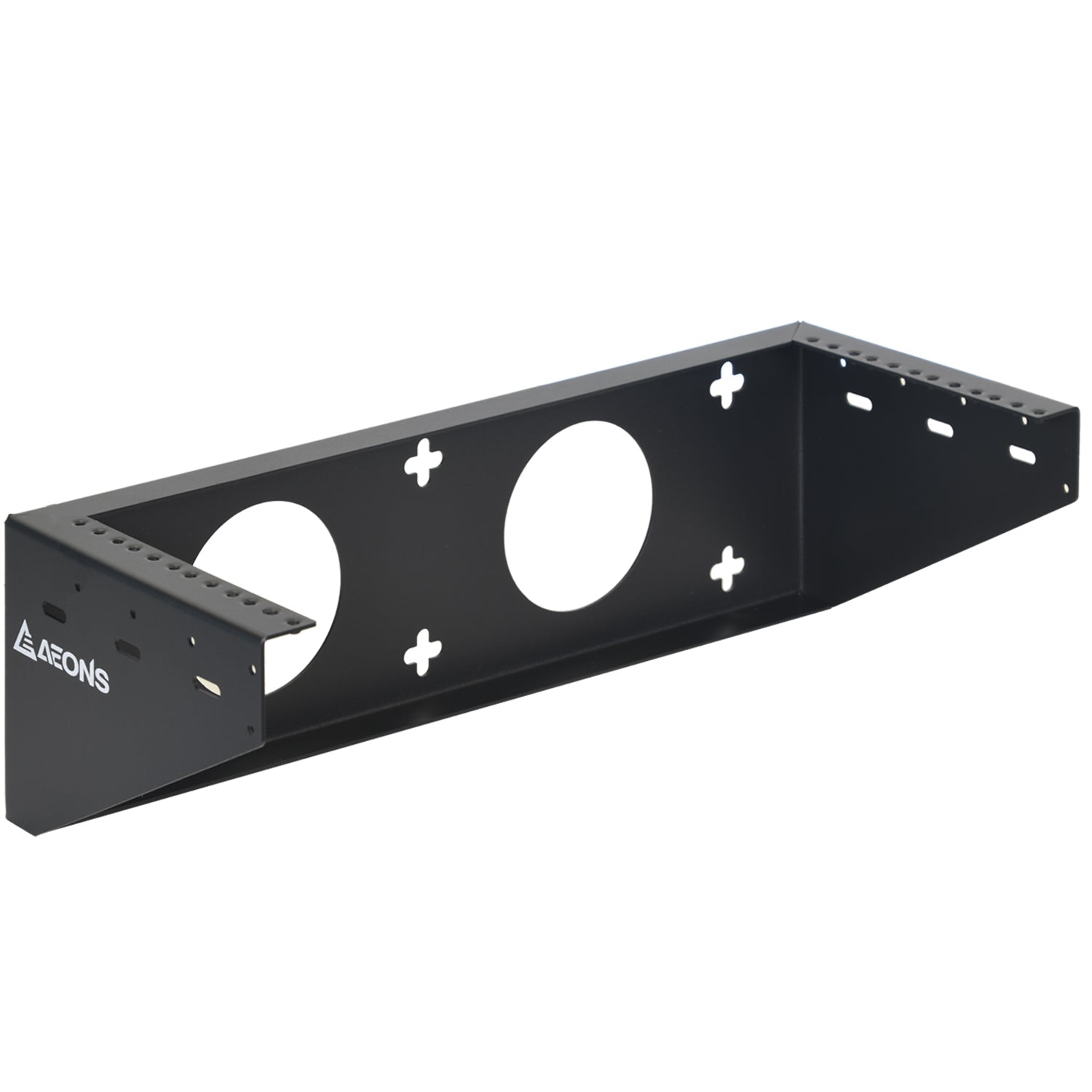

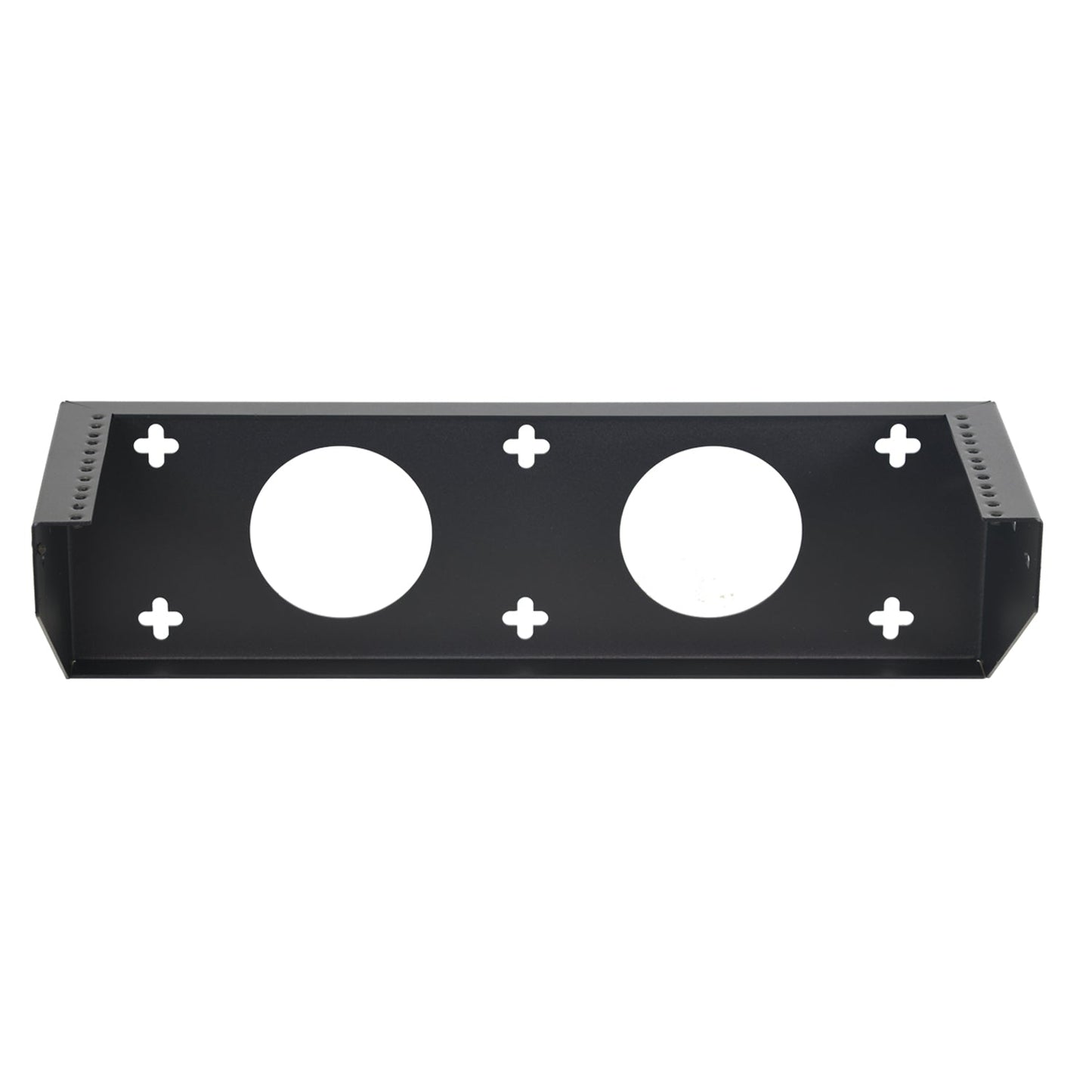

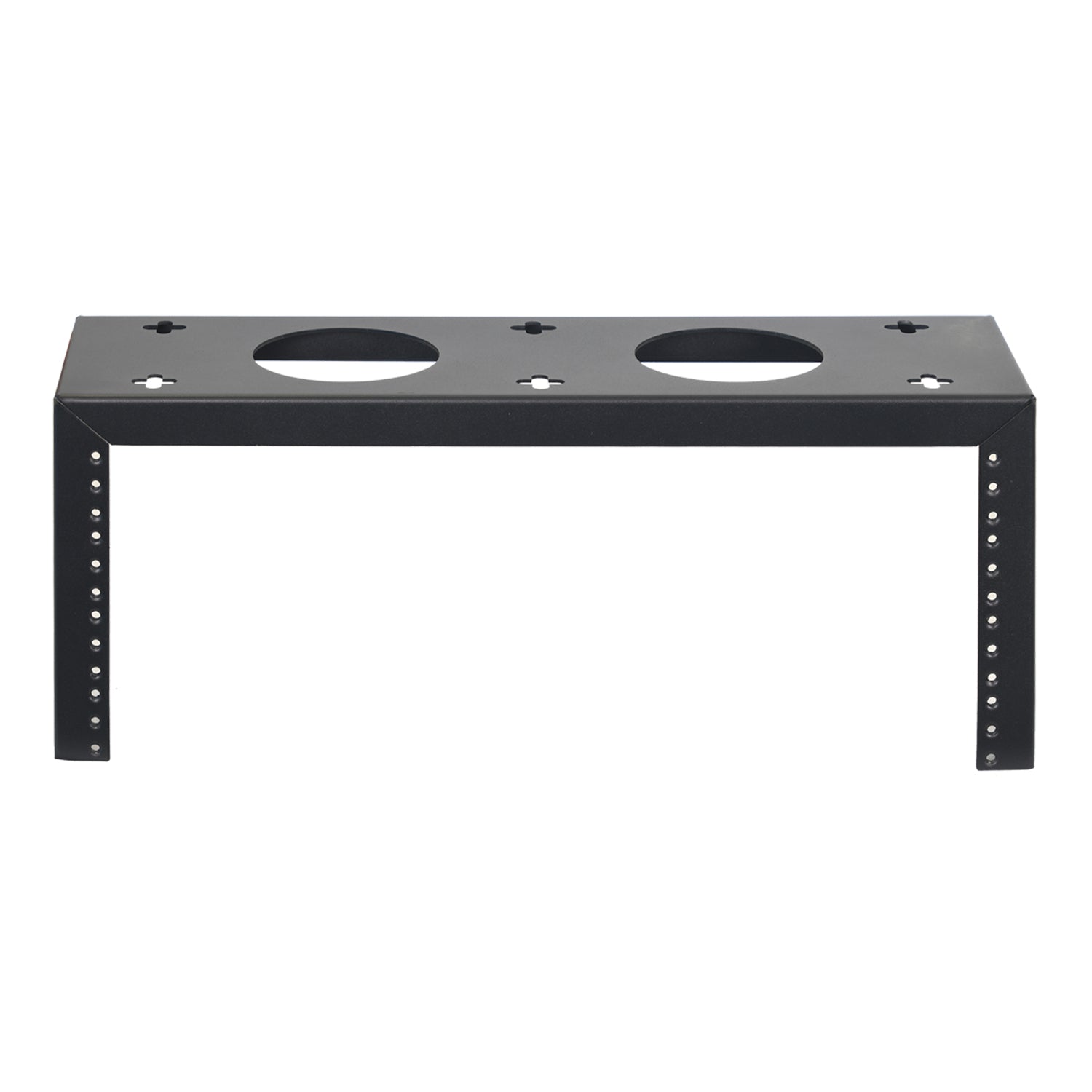

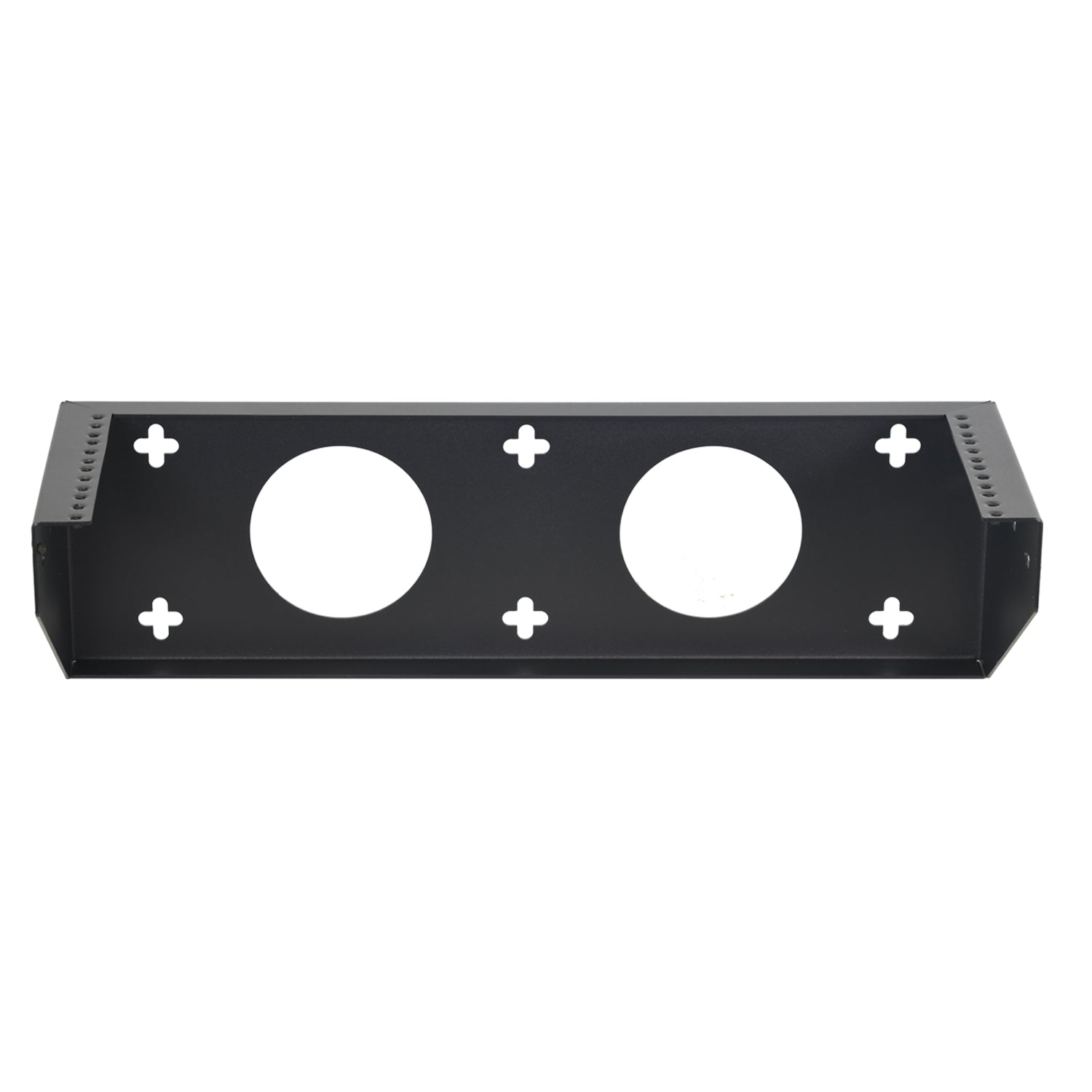

Our Vertical Wall-Mount Bracket is for storing EIA-standard 19-inch rack equipment if you don’t have enough space for a full-size rack or cabinet in network closets, offices, classrooms, retail stores and other areas with limited floor space but high demand for secure and organized storage.
These low-profile bracket saves space by extending only minimal depth from the wall while housing the length of your equipment vertically.
Sturdy welded frame construction made of high quality SPCC Cold Rolled Steel with durable powder coating finish.
Available in 1U to 6U configurations.
- Versatile and lightweight Bracket fits all standard 19" rack mount devices, such as audio video, media, data, computer, network, and IT equipment. Mount vertically to save space or horizontally under a surface/desk.
- Improved efficiency with vertical wall mount space saving design, with cable pass through holes for easy cable management. Features threaded #12-24 mounting holes ready for installation.
- Sturdy heavy duty welded frame cold rolled steel construction built for durability.
- No assembly required. Arrive fully assembled with screws and all installation hardware.
- Dimensions: 6"H x 20.25"W x 8.25"D / Max Load Capacity: 45 lbs.
Package Includes
- 1 x Vertical Wall Mount Bracket
- 1 x Screw package
Features
Space-Saving Design
- Convenient low profile vertical mount space-saving designed for a versatile storage solution:
- Allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space.
- Also suitable for installation under a desk for instant access to the installed equipment.
Versatility and Equipment Security
- Versatile, sturdy yet lightweight bracket fits all standard 19" rack mount devices, such as audio video, media, data, computer, network, and IT equipment.
- Ideal for SoHo (small office, home office) environments lacking the footprint space for a full-size server equipment rack.
Easy Equipment Installation
- The rack comes fully assembled and ready to mount to the wall, including all the necessary hardware to install equipment.
- Suitable for mounting on virtually any wall/ceiling surface. Cable pass through holes for easy cable management.
Specification
|
Model |
SBA5304 |
|
Type |
Open-Frames |
|
Style |
Wall-Mount |
|
Rack Height |
4U |
|
Rack Depth (in. / mm) |
N/A |
|
Maximum Device Depth (in. / mm) |
N/A |
|
Front Door Type |
N/A |
|
Load capacity (lbs) |
45 |
|
Number of vertical mounting rails |
2 |
|
Number of L brackets |
N/A |
|
Shelves |
N/A |
|
Cable access |
Unrestricted |
|
Unit Dimensions (H x W x D / in.) |
6 x 20.25 x 8.25 |
|
Unit weight (lbs) |
|
|
Shipping Dimensions (H x W x D / in.) |
|
|
Shipping weight (lbs) |
|
|
Color |
Black |
|
Grounding lug |
No |
|
Grounding Wire kit |
No |
|
Built-in cable management |
No |
|
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E |
|
Warranty Period |
10-year limited warranty |
