Aeons SBC Seires 6U Wall-Mount Open-Frame Rack, Adjustable-Depth, Swing Out Hinged Gate

Overview

Our Open Frame Depth Adjustable Wall Rack is perfect for mounting servers and other networking equipment not requiring a lockable enclosure. It helps IT managers to better organize their equipment array while having space-saving and unrestricted access for equipment and cabling. The depth adjustable frames offer versatile solution for network server and other equipment.

• Durable high-quality cold rolled steel construction. Fits all standard 19" rack mount devices

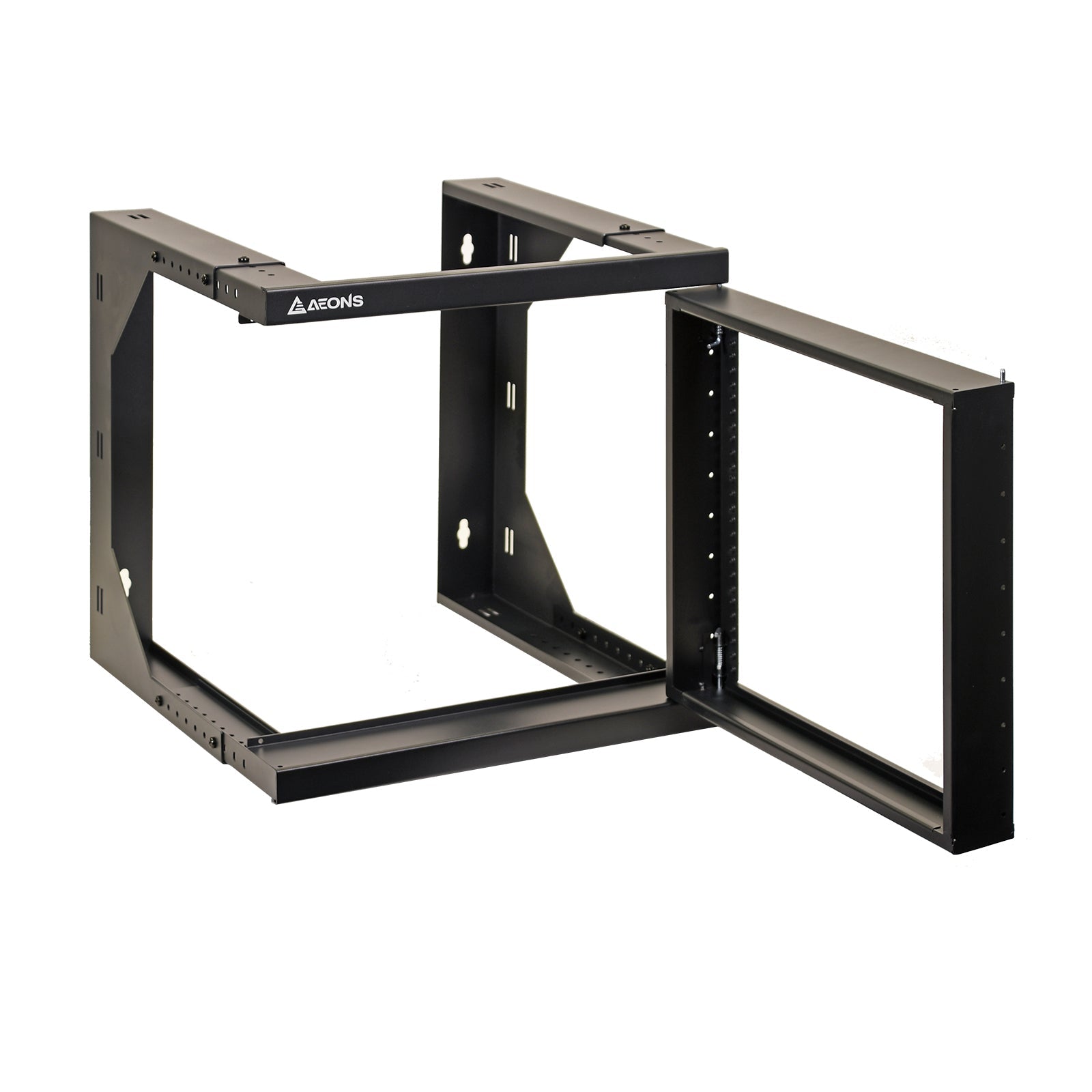

• Swing-out hinged front mounting rails enables easy access to equipment sides and rear panel. Front rail threaded 12-24 ready for installation.
• Depth adjustable: 18"- 26". Dual-hinged removable front gate opens 190 degrees from either left or right.
• Dimensions: 14.5"H x 20.5"W x (18"-26")D, 55 lbs. weight capacity.
• Ships flat pack; Easy assembly required, including screw package.

Package Includes

• 1 x Wall-mount open frame rack (Easy Assembly Required)
• 1 x Screw package

Features

• Durable high-quality 1.5mm cold rolled steel construction in a classic black powder coated finish.
• Open frame rack with ample ventilation and unobstructed air flow.
• Dual-hinged front swing-out gate opens 180 degrees from either side, left or right, enables easy access to the side and rear panels for servicing and management even after the rack is wall mounted.
• The depth adjustable frames and rails can accommodate various depth rack equipment.
• Hardware is included for wall and equipment mounting.

Specification

Q&A

Resources

• Owner's Manual
