Description
Overview

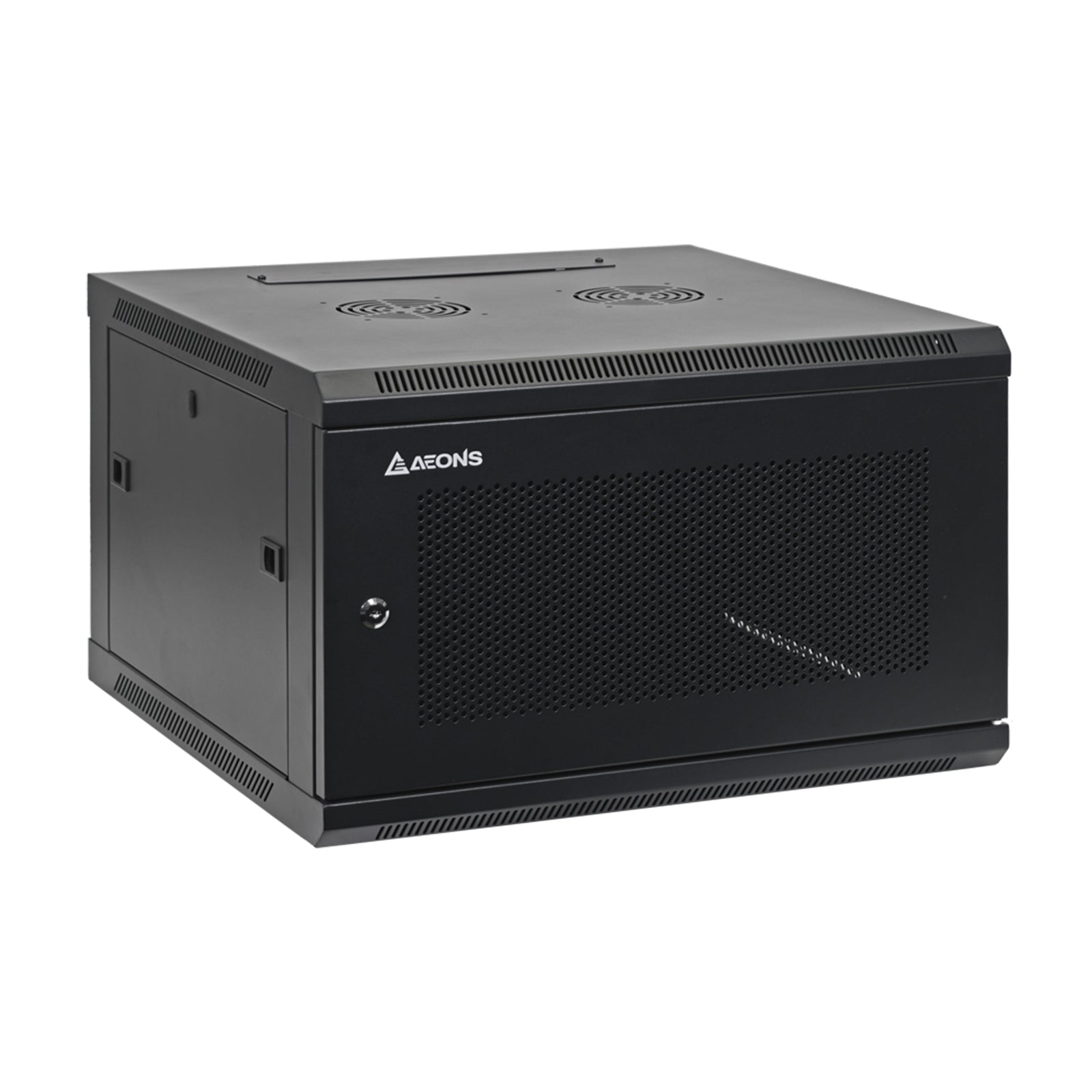

Aeons Signature SC-Series Wall Mount Cabinets is your turnkey solution for EIA-standard 19-inch rackmount equipment in network closets, offices, classrooms, and other locations with limited floor space. Fully assembled for quick and easy deployment. Removable side panels, top and bottom cutouts allow access for equipment and cabling. The front and rear doors lock securely. The vented frames and optional cooling fans provide excellent air ventilation.- Fits rack equipment up to 22.5 in deep. Maximum load capacity of 200 lbs.
- Reinforced lockable door and main chassis for increased security.
- Removable door and side panel; Cable pass-through on top and bottom.
- Rugged welding frame structure with ventilation at front, sides, top and bottom.
- Ships fully assembled with hardware package for quick deployment.
- 10-year limited warranty
Package Includes
- Wall mount network server cabinet (fully assembled)
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- (2) Keys
Features
Contemporary Aesthetic Design
- Save valuable workspaces; design for network wiring in closets, offices, classrooms, and other areas with limited floor space but needs to keep everything organized, secure and efficient.

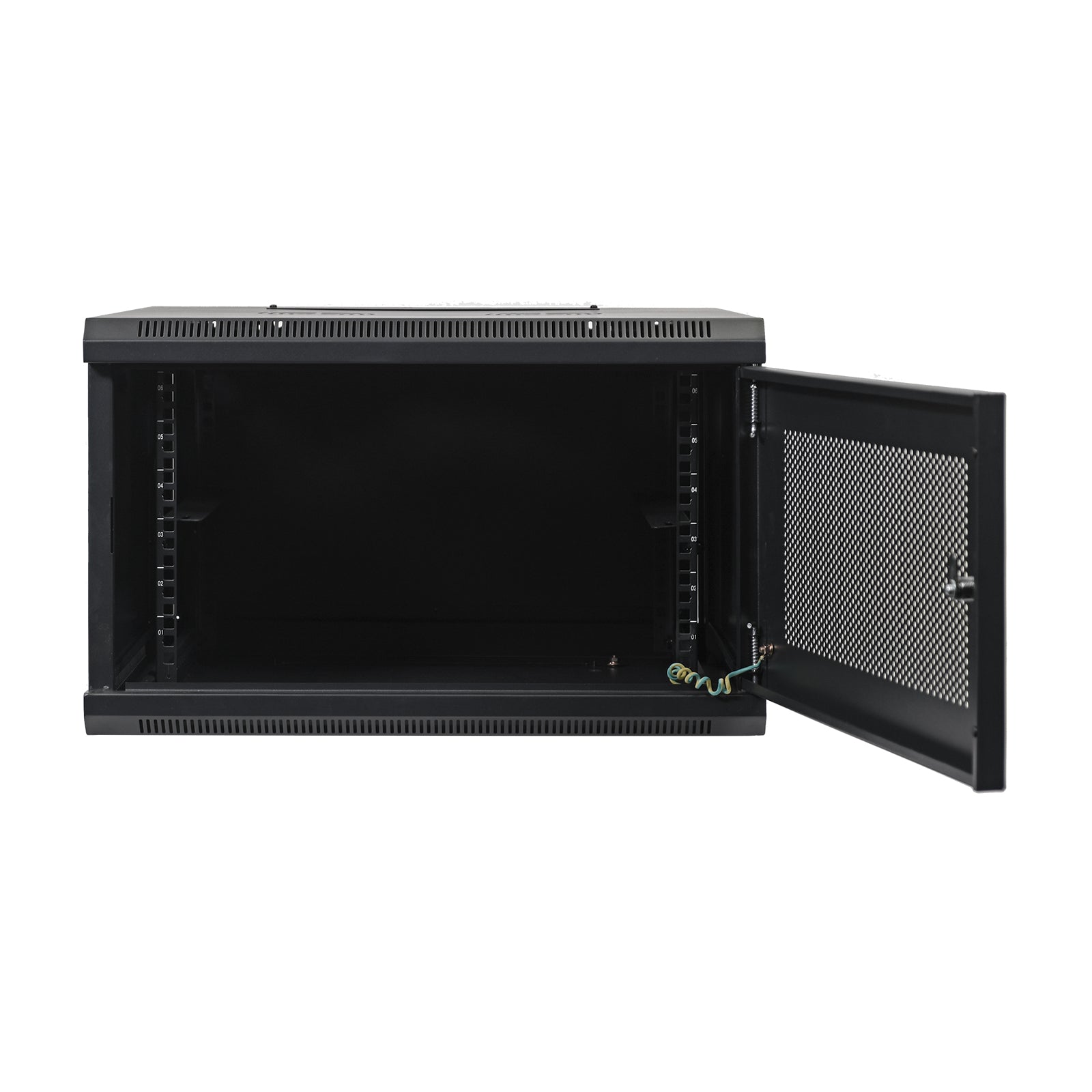

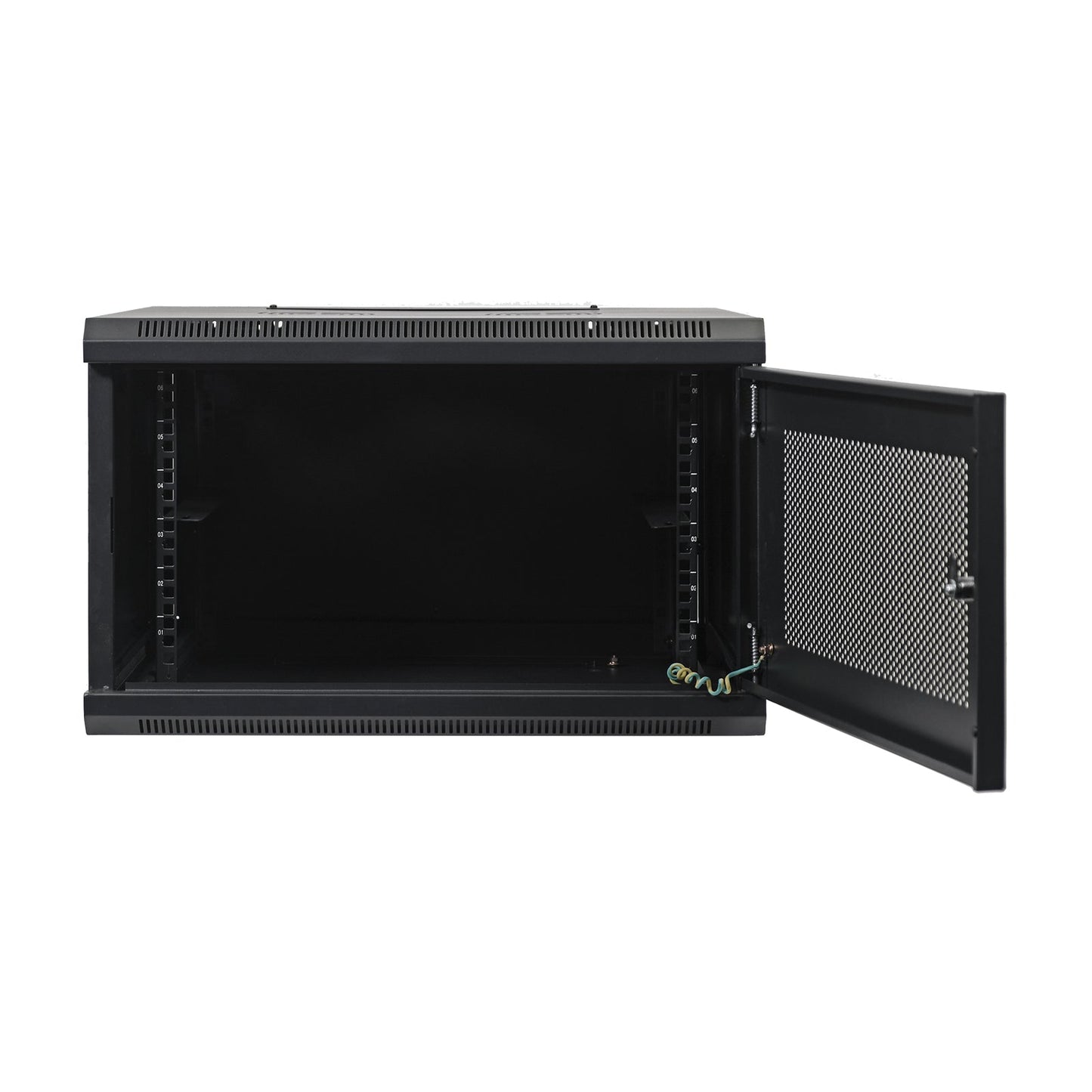

- Removable and reversible front door and removable side panel design, each with quick-release mechanism allows easy access to equipment.
- Wall mounting or floor standing with optional casters to turn it into a mobile rolling rack.
Quality Construction and Equipment Security
- Heavy-duty cold rolled steel and sturdy welded frame construction with durable powder coating finish.
- Reinforced, lockable front door and side panel (optional lock) ensure equipment security.

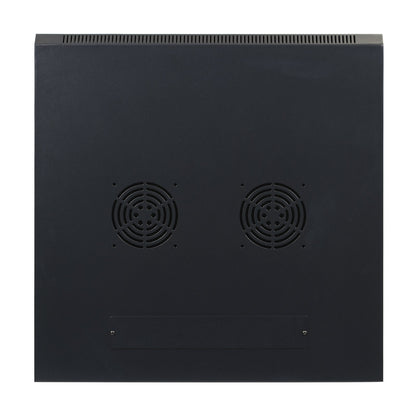

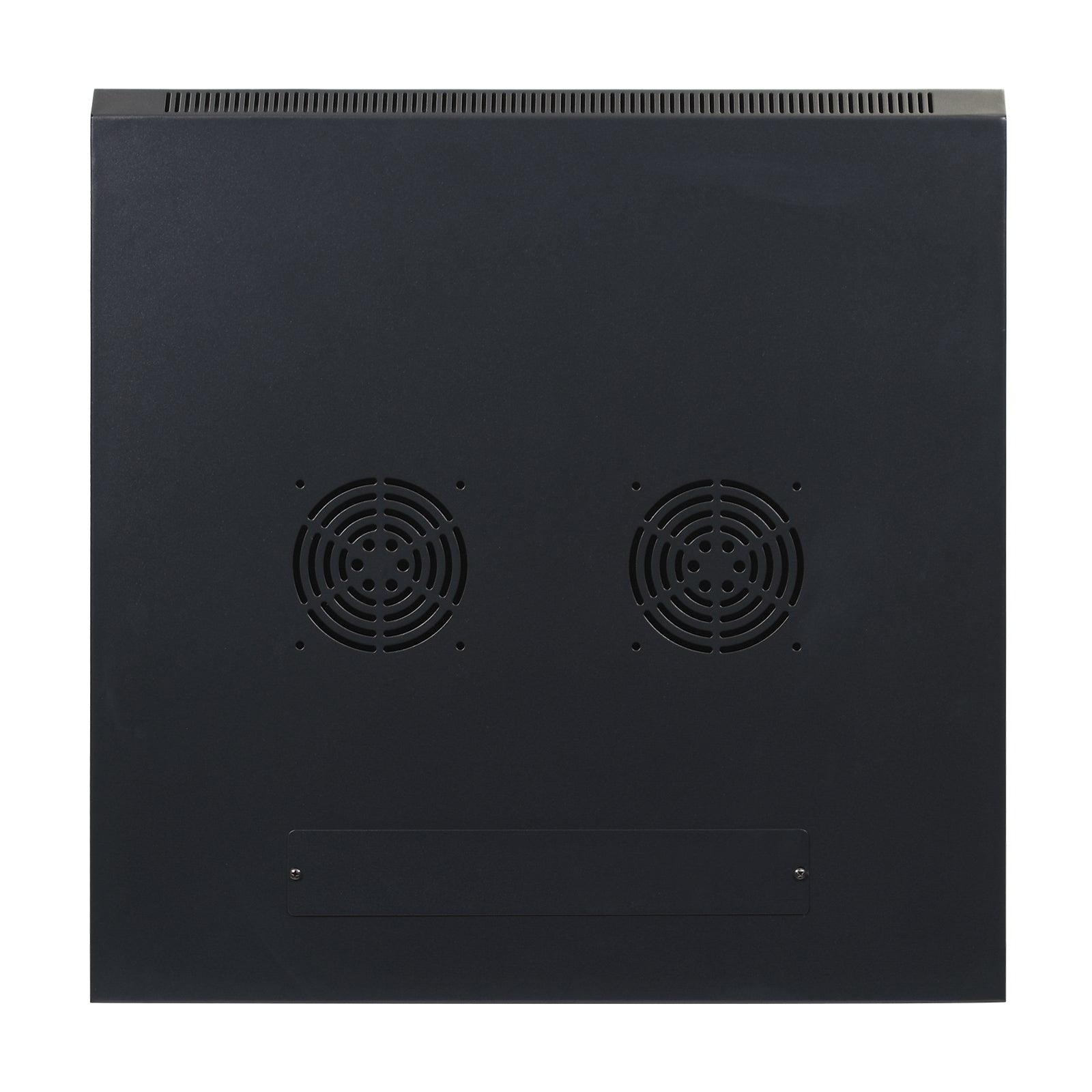

- The vented frames and optional cooling fans provide excellent air ventilation. Vented door with permeability up to 80%.
Easy installation and quick deployment
- Ergonomic knock-down design for quick and easy deployment and assembly to job sites.

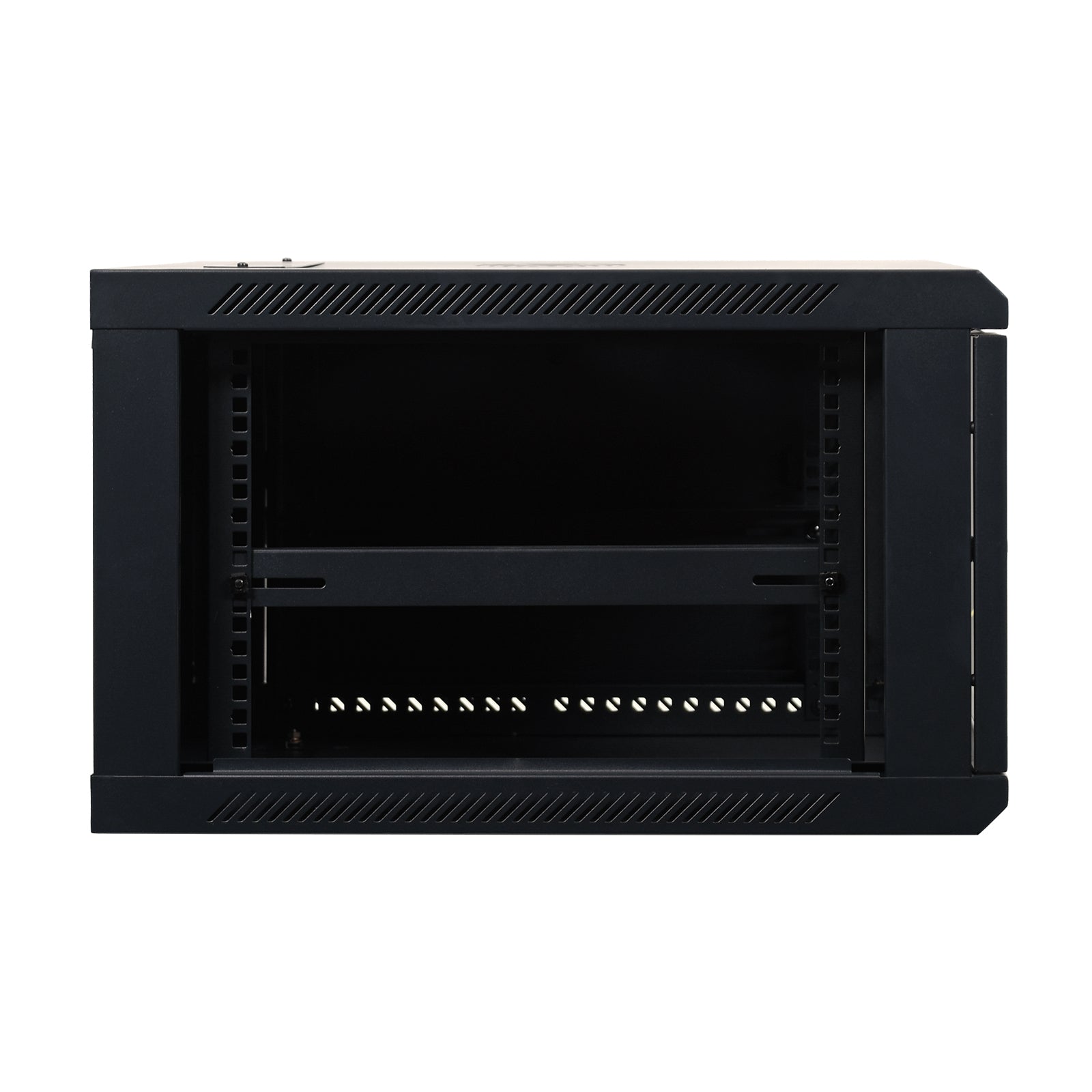

- Adjustable vertical mounting rails can accommodate various depth rack equipment.
- Top and bottom panels have cable pass-through knockouts help keep cable neat and organized.
Specification
Model |
SC6606F |
Type |
Enclosure |
Style |
Wall-Mount |
Rack Height |
6U |
Rack Depth (in. / mm) |
23.5 / 600 |
Maximum Device Depth (in. / mm) |
22.5 / 565 |
Front Door Type |
Vented |
Load capacity (lbs) |
200 |
Number of vertical mounting rails |
4 |
Number of L brackets |
2 |
Shelves |
No |
Cable access |
Top, Bottom |
Unit Dimensions (H x W x D / in.) |
14.5 x 23.5 x 23.5 |
Unit weight (lbs) |
39 |
Shipping Dimensions (H x W x D / in.) |
17 x 26 x 26 |
Shipping weight (lbs) |
41 |
Color |
Black |
Grounding lug |
Front, bottom and back panels |
Grounding Wire kit |
Yes |
Built-in cable management |
No |
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E, IP20 Protection |
Warranty Period |
10-year limited warranty |
