Description
Overview

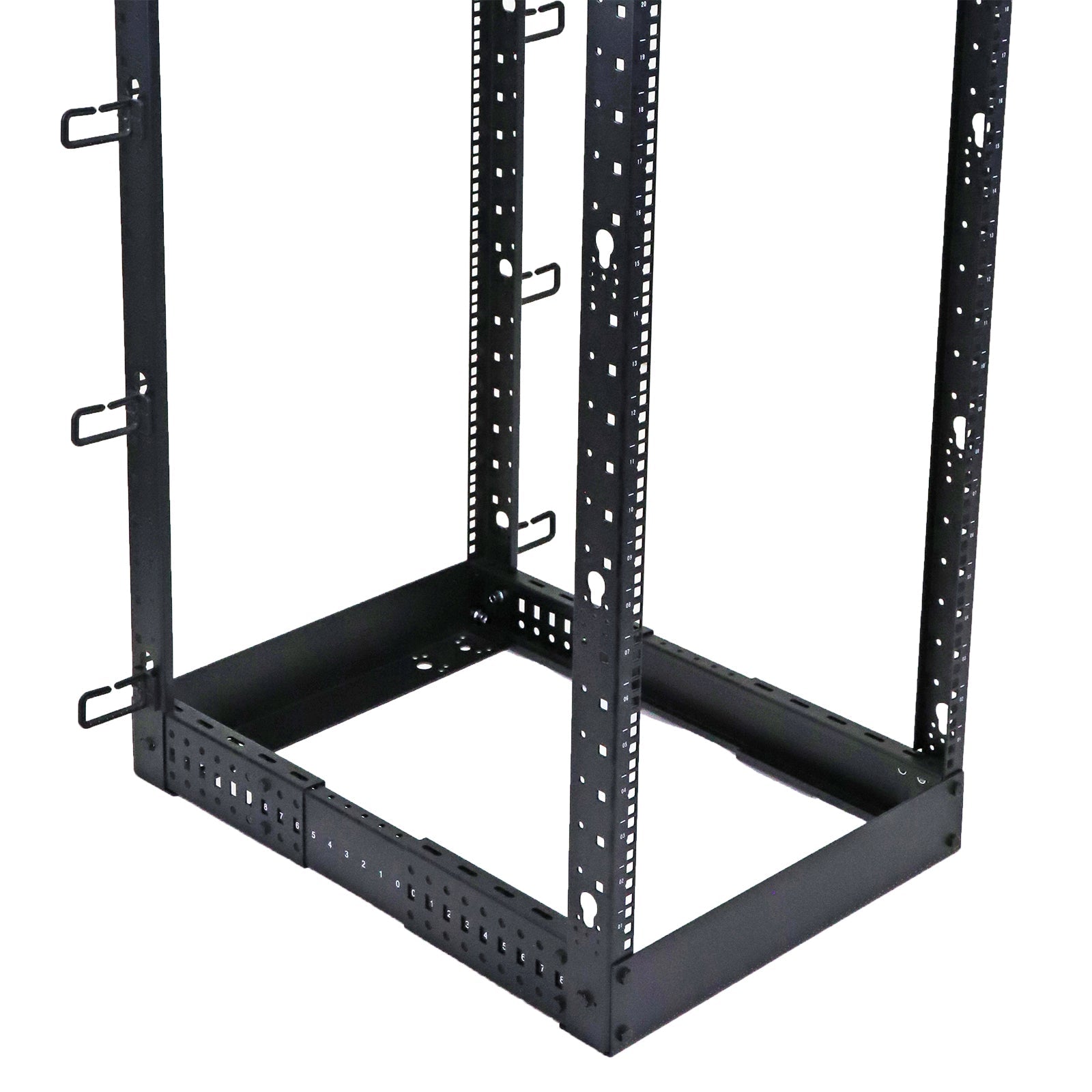

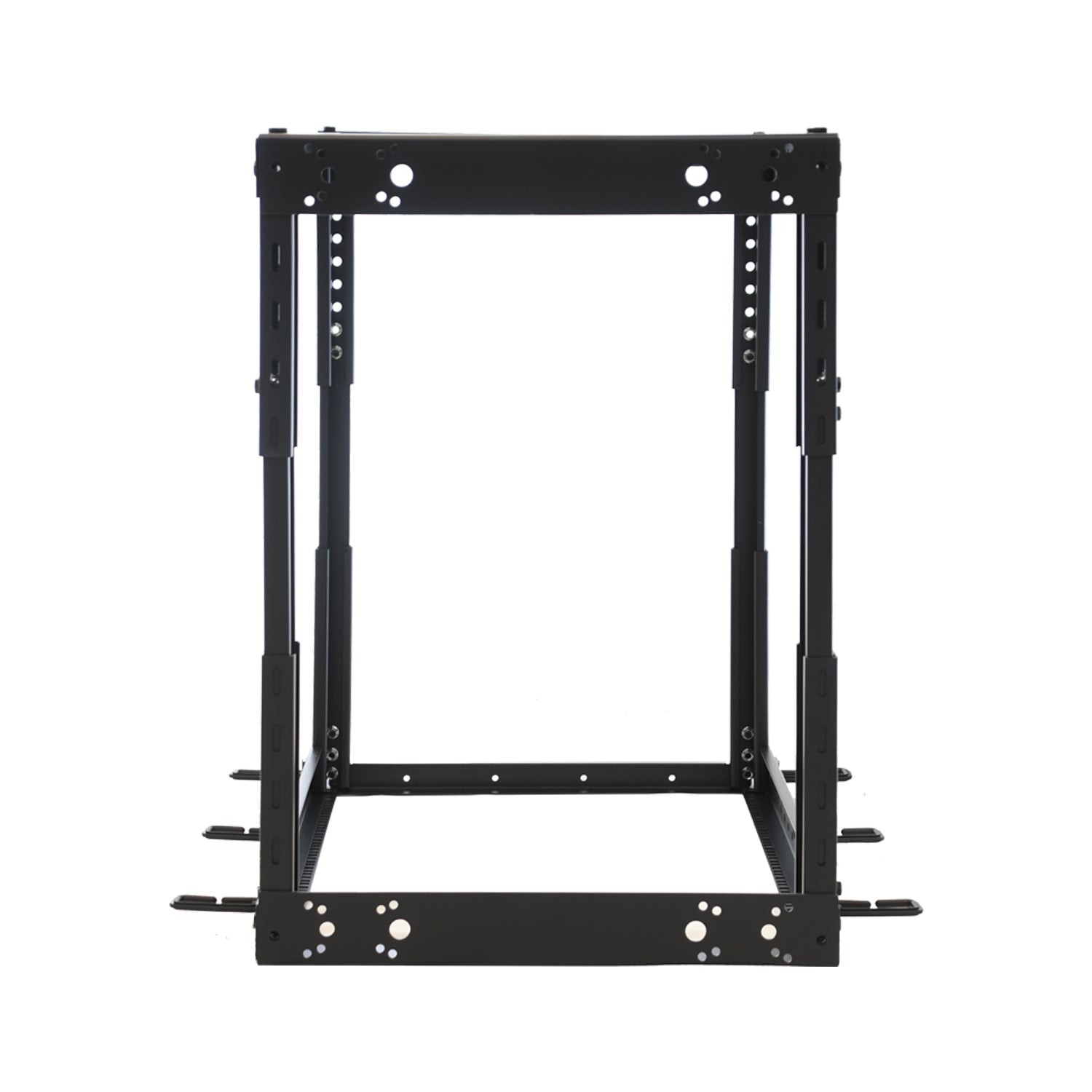

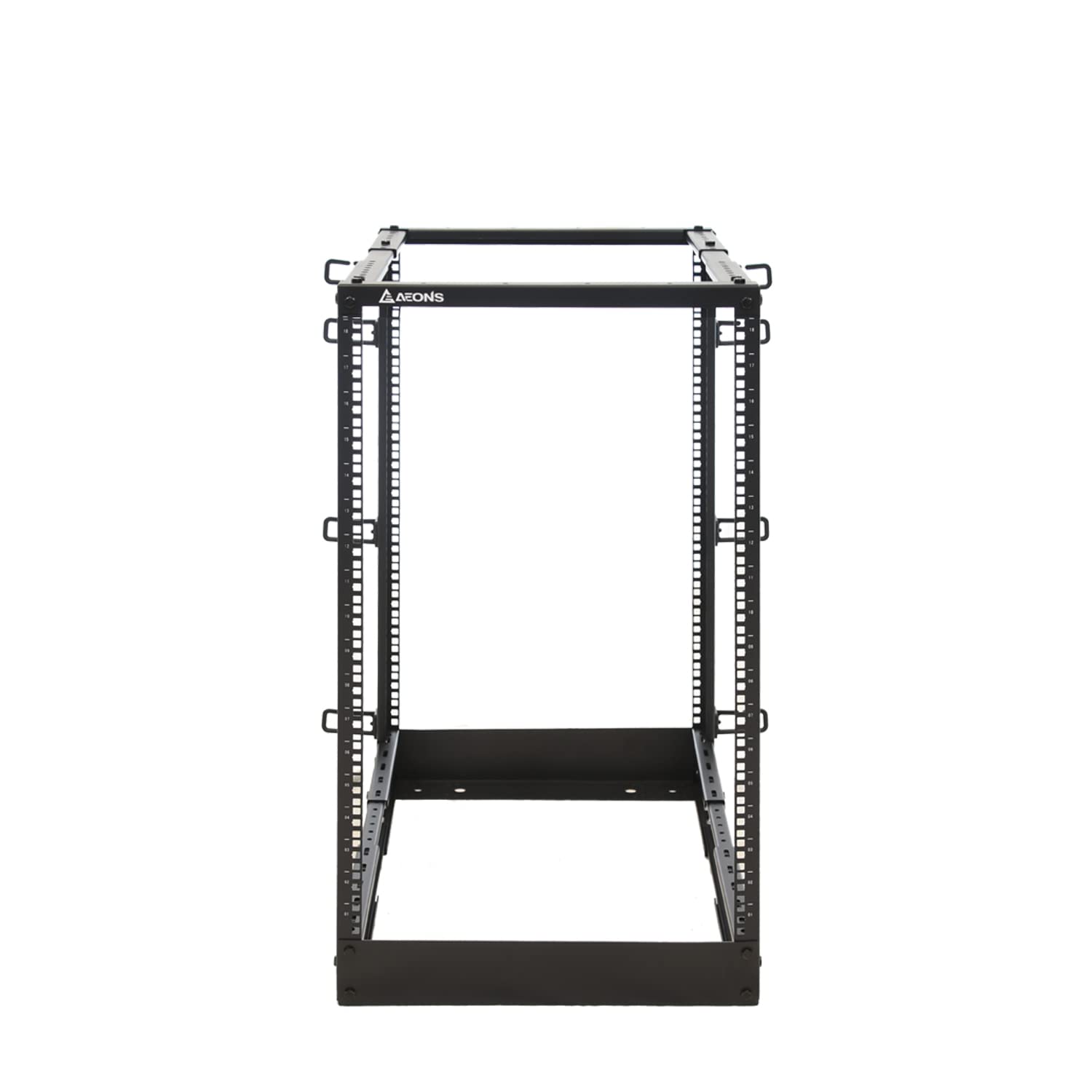

Aeons SR-Series 4-Post open frame rack is a simple solution for housing servers and other networking IT equipment that don’t require a lockable enclosure. It helps IT managers to better organize their equipment array while simplifying access for equipment installation and servicing. The depth adjustable frames with industry standards offer versatile solution for network server and other equipment. Made of high-quality SPCC Cold Rolled Steel with a powdered coated finish for durability.
Available in a variety of heights and depths. Comes flat-packed for easy assembly. Hardware is included for hassle-free installation.
- Adjustable mounting depth from 22" to 40". Maximum load capacity of 790 lbs.
- Heavy duty cold rolled steel with powder coated finish. Fits all standard 19" rack mount devices.

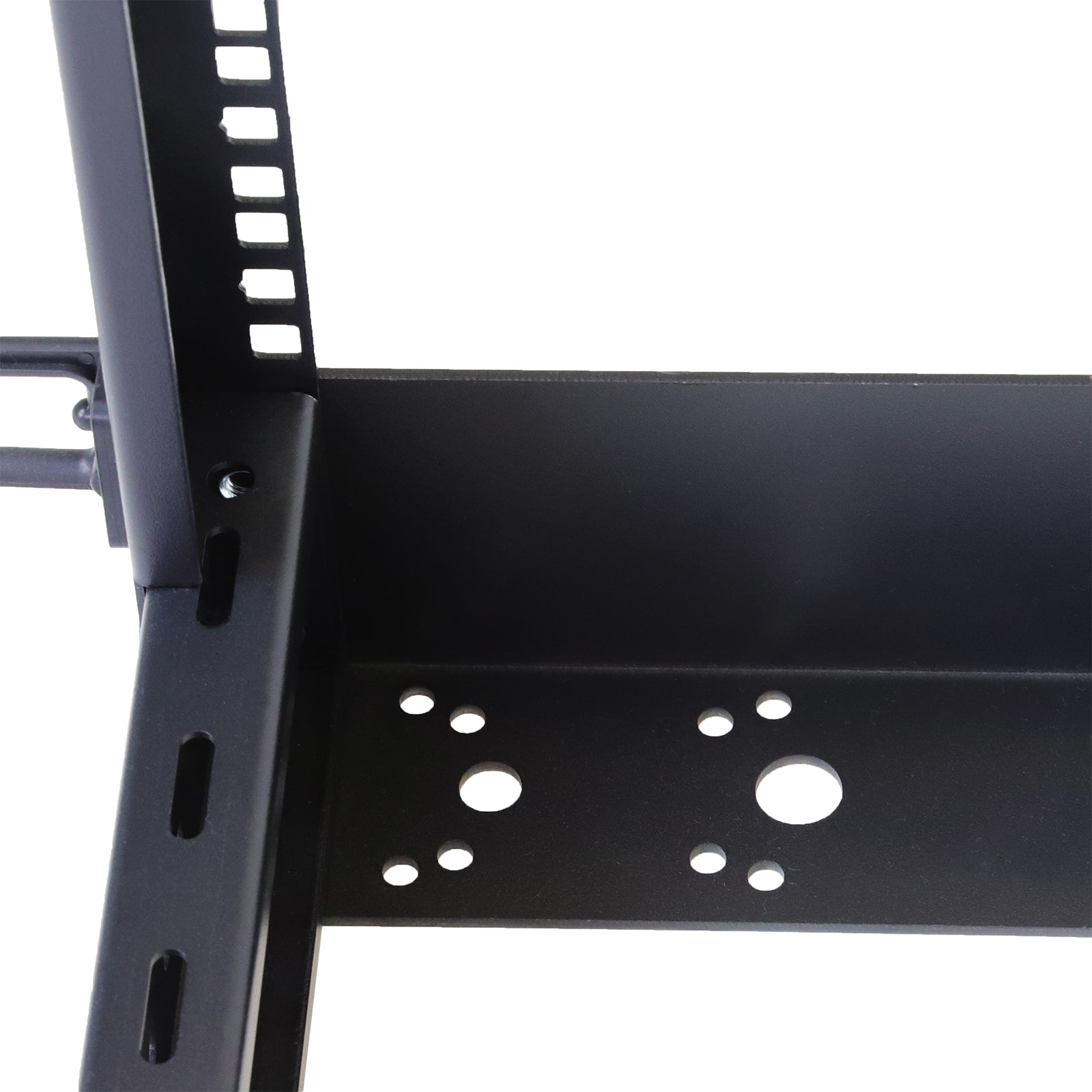

- Base mounting plate for securely fastening to the floor, or for casters and leveling feet.

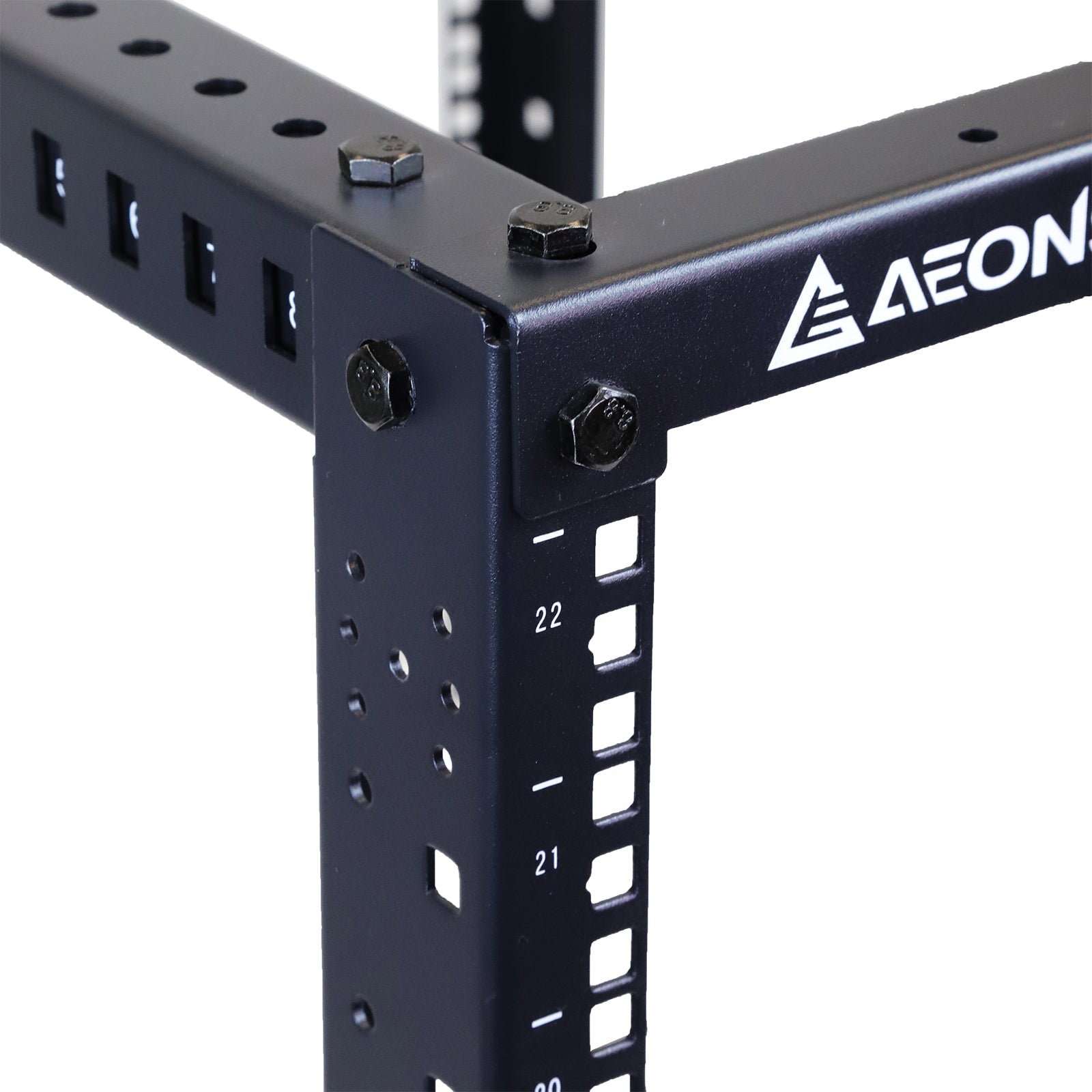

- Numbered square-hole mounting positions.

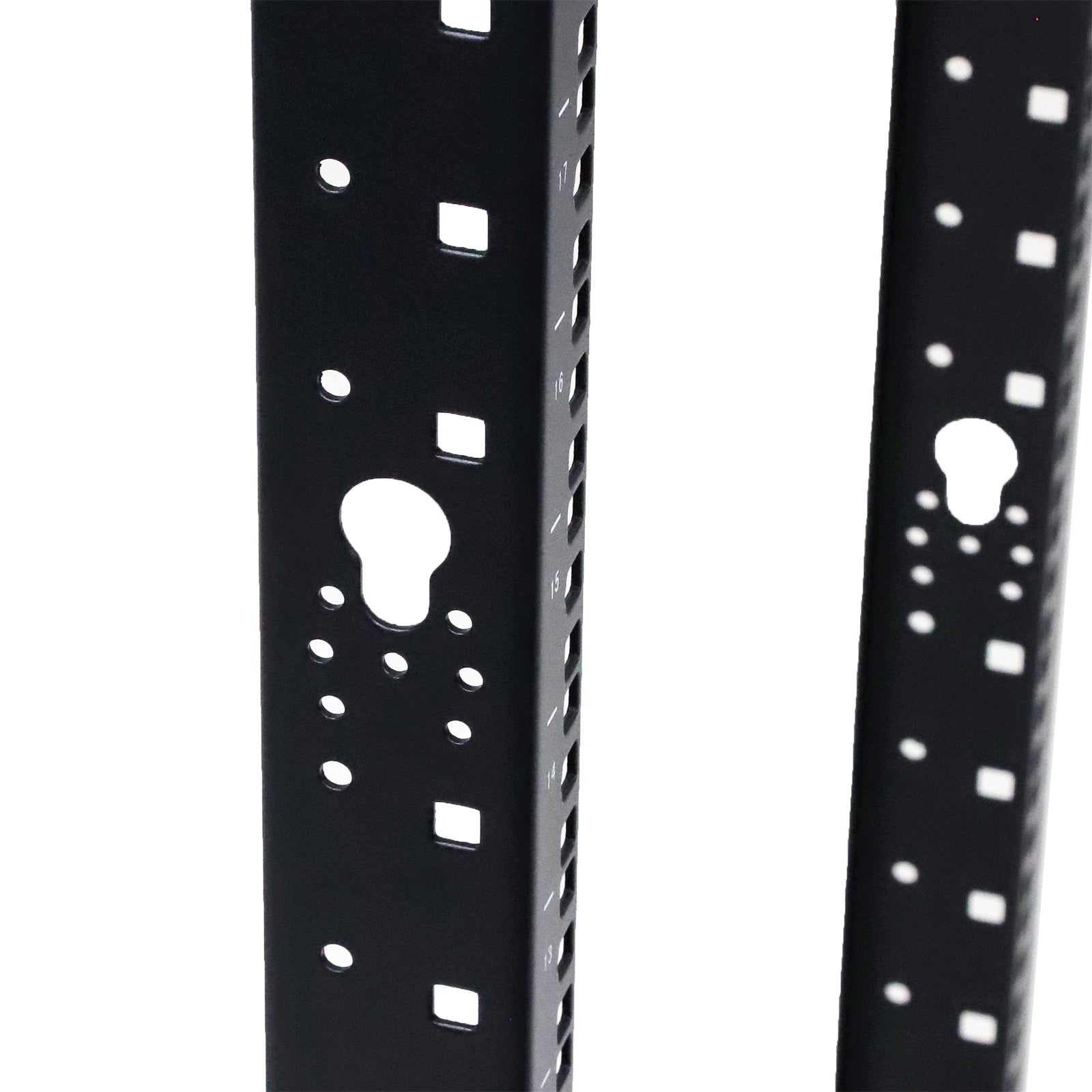

- Toolless button-hole mounting for vertical PDUs and cable managers.
- 10-year limited warranty.
Package Includes
- SR open frame rack (flat pack)
- Installation hardware
- (32) M6 screws, cage nuts and washers for equipment mounting.

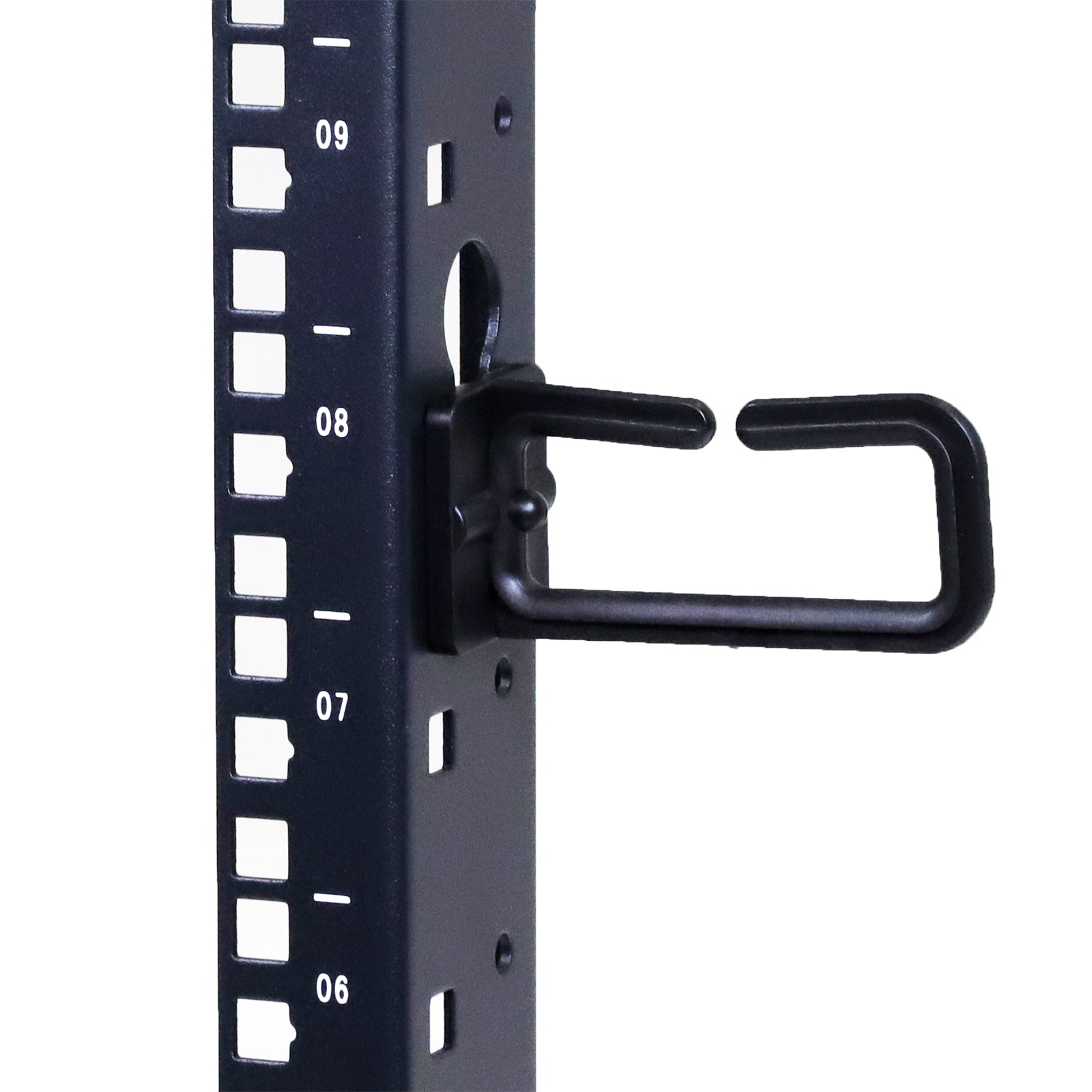

- (18) Cable management hooks
- Wrench tool
- Owner’s manual

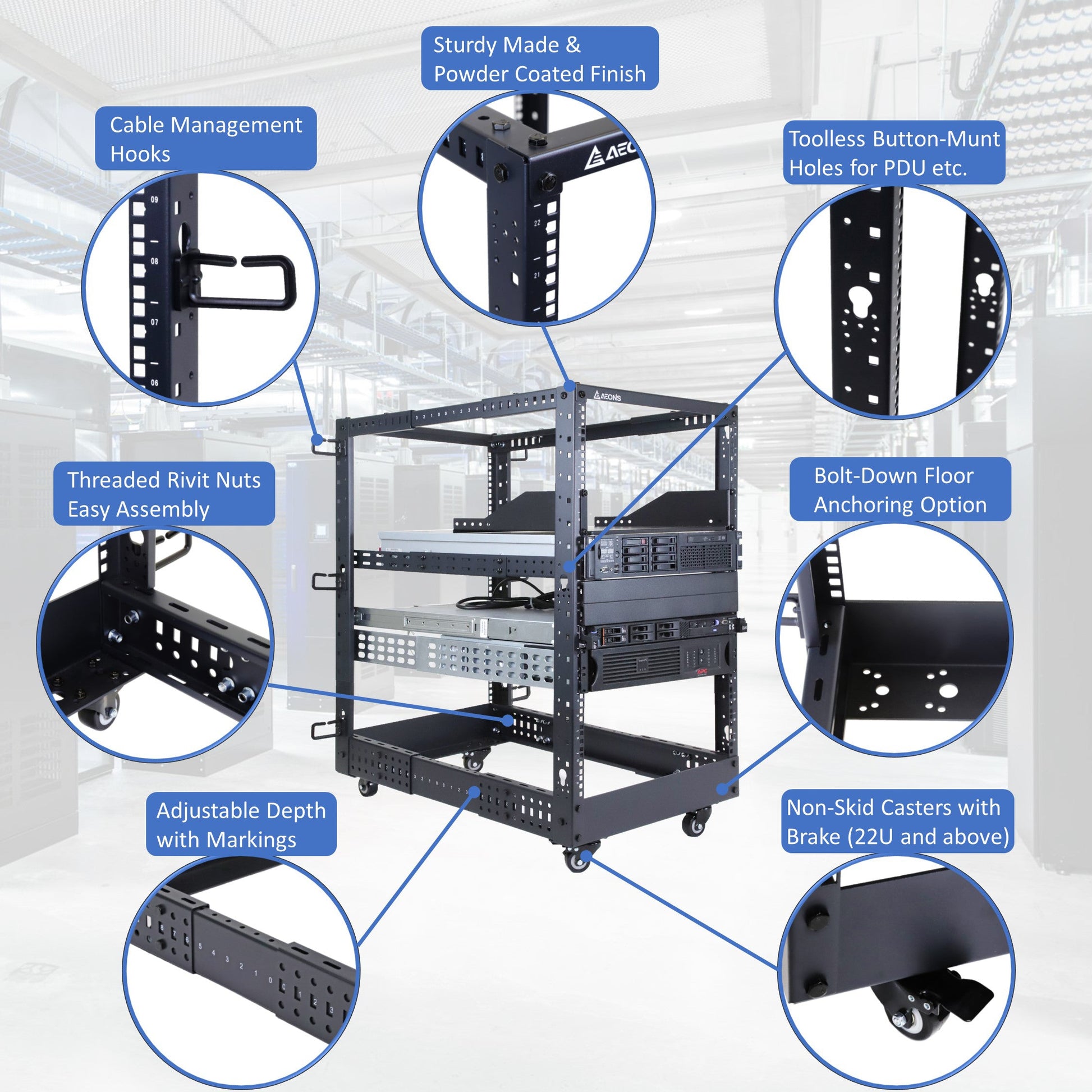

Features
Universal and Expandable Design
- Saves valuable workspaces and helps better organize equipment array while simplifying access for equipment installation and servicing.
- The open frame design provides unobstructed airflow and easy access to equipment and cabling.
Quality Construction and Equipment Security
- Heavy-duty cold rolled steel frame construction with powder-coated finish for durability.
- Supports stationary loads up to 790 lbs (358 Kgs).
- comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions.
Easy installation and quick deployment

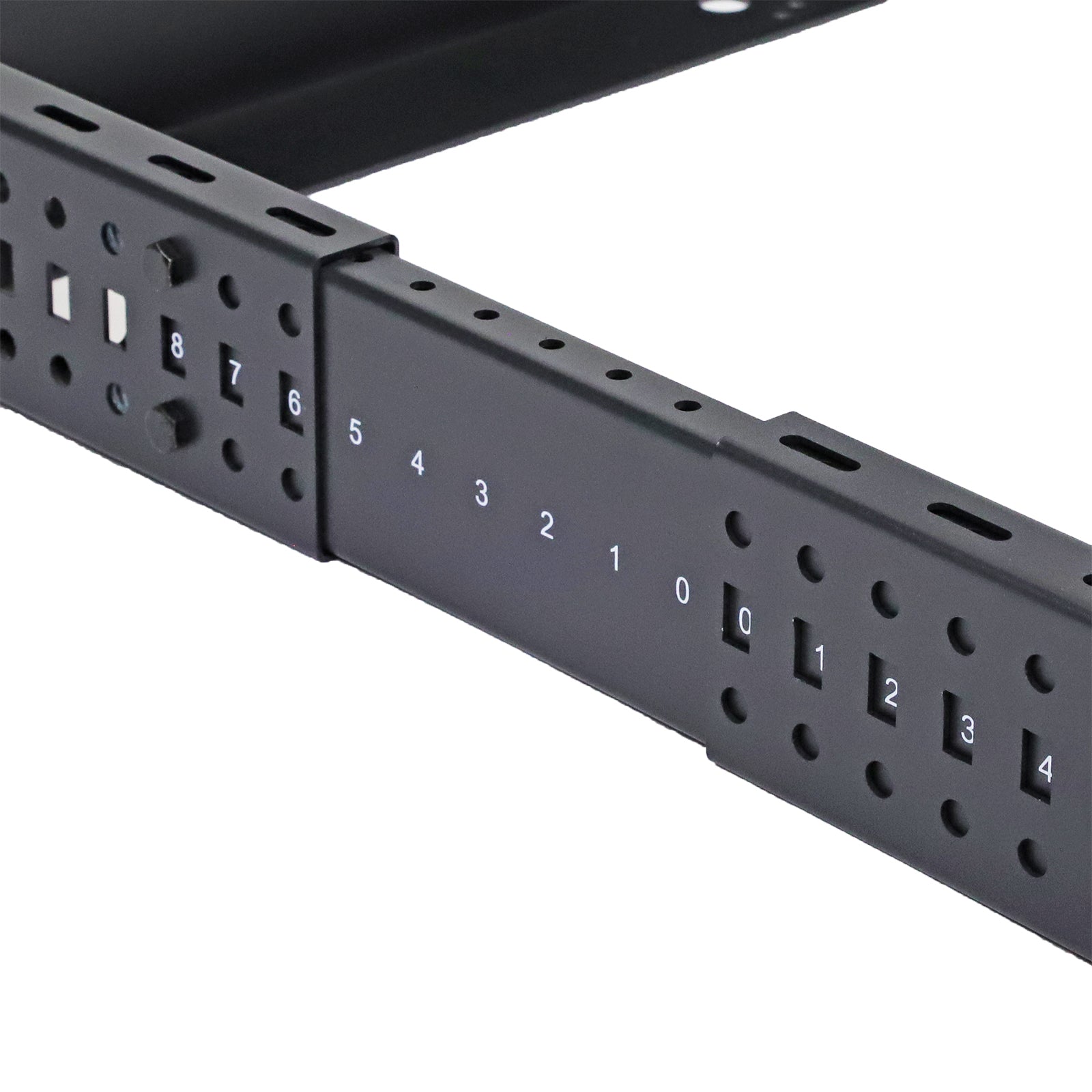

- Adjustable vertical mounting rails can accommodate various depth rack equipment.
- Numbered square-hole mounting positions for easy installation of standard 19-inch rack equipment.
- Accommodates toolless button-hole mounting for vertical PDUs and cable managers.
Specification
|
Model |
SR5515 |
|
Type |
Open-Frames |
|
Style |
4-Post; Floor-Standing |
|
Rack Height |
15U |
|
Rack Depth (in. / mm) |
Standard |
|
Maximum Device Depth (in. / mm) |
40 / 1000 |
|
Minimum Device Depth (in. / mm) |
22 / 455 |
|
Load capacity (lbs) |
790 |
|
Number of vertical mounting rails |
4 |
|
Number of L brackets |
0 |
|
Shelves |
No |
|
Door Type |
No |
|

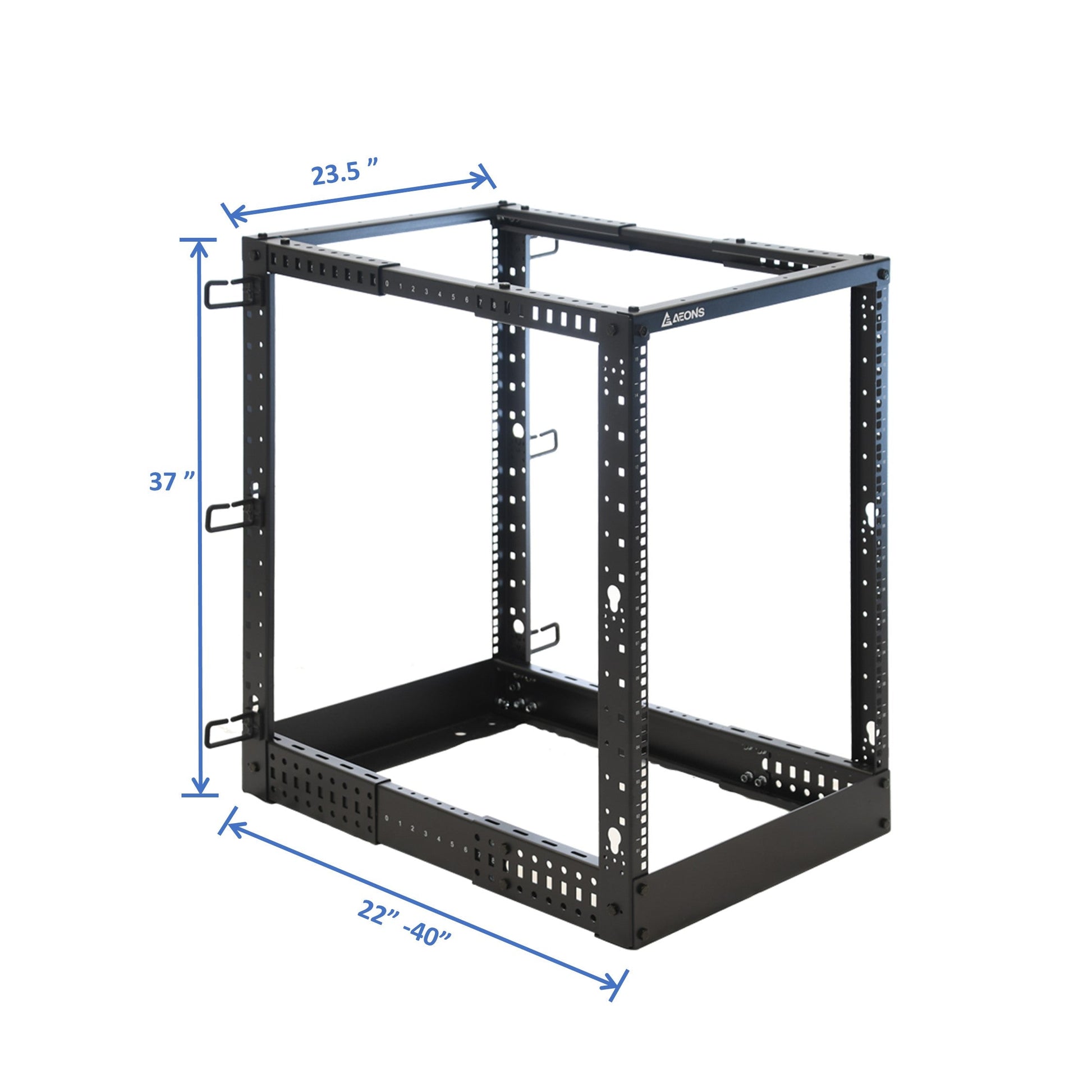

Unit Dimensions (H x W x d / in.) |
37 x 23.5 x 22-40 |
|
Unit weight (lbs) |
55 |
|
Shipping Dimensions (W x D x H / in.) |
26 x 26 x 23 |
|
Shipping weight (lbs) |
61 |
|
Color |
Black |
|
Grounding lug |
Included screws, nuts, and washers secure user-supplied grounding wire to Front or Back frames |
|
Grounding Wire kit |
No |
|
Built-in cable management |
Yes |
|
Compliance |
RoHS, CE, EIA/ECA-310-E |
|
Warranty Period |
10-year limited warranty |
