Aeons SRC Series 15U 4-Post Wall-Mount Open Frame Rack, Side Mount, Floor-Standing, Rack Shelves

Aeons SRC Series 15U 4-Post Wall-Mount Open Frame Rack, Side Mount, Floor-Standing, Rack Shelves

Get Brochure Get Manual

Key Benefits

View full details

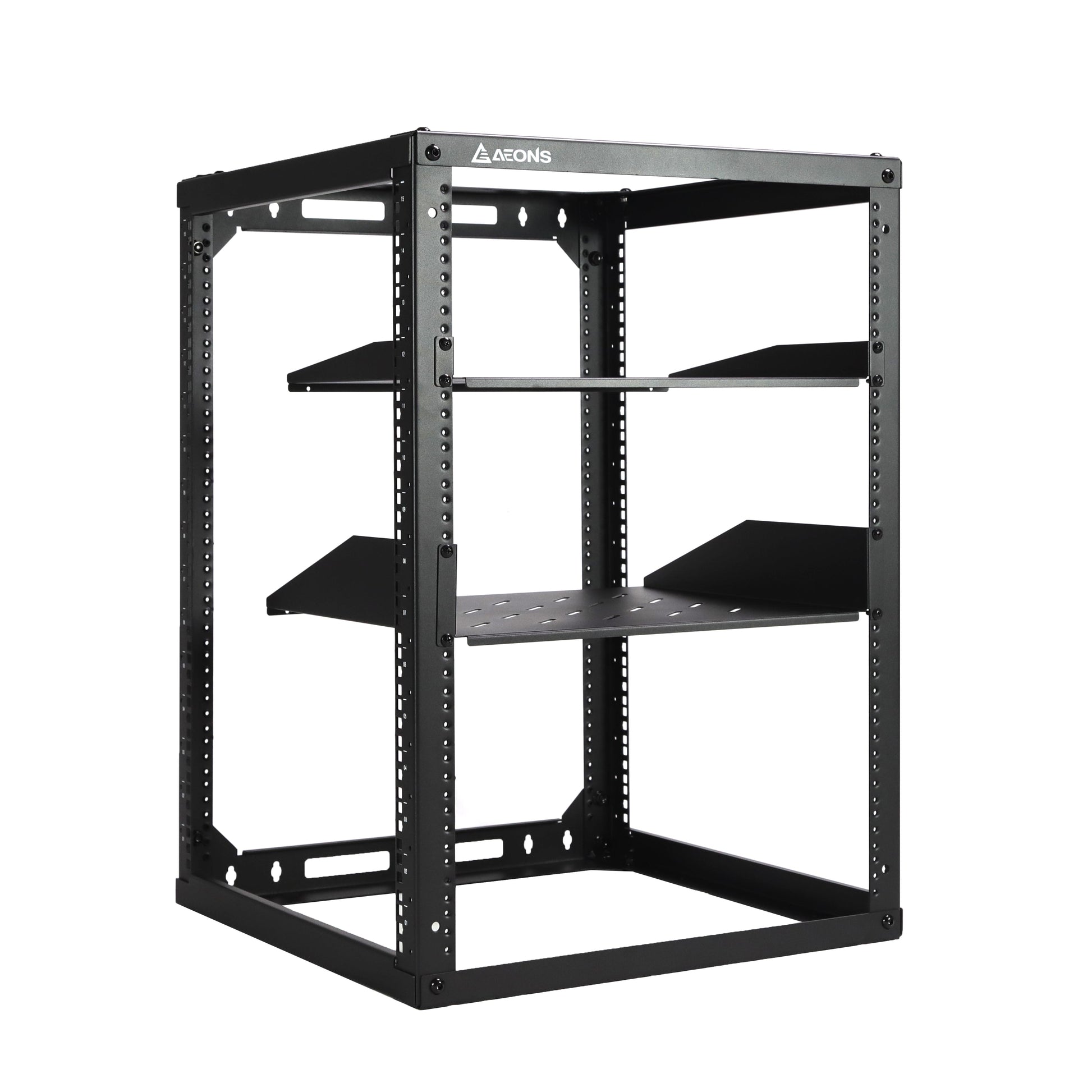

This Ready-to-hang Rack kit supports both front and side mount, enabling 19-inch servers, A/V or network equipment to be installed parallel or perpendicular to the wall, ideal for applications in closets, back offices, or anywhere where space is limited.

A side mount configuration allows for a greater mounting depth with the elimination of a wall barrier, also enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable management and servicing.

Available in a variety of heights and depths. Comes flat-packed for easy assembly. Hardware is included for hassle-free installation.

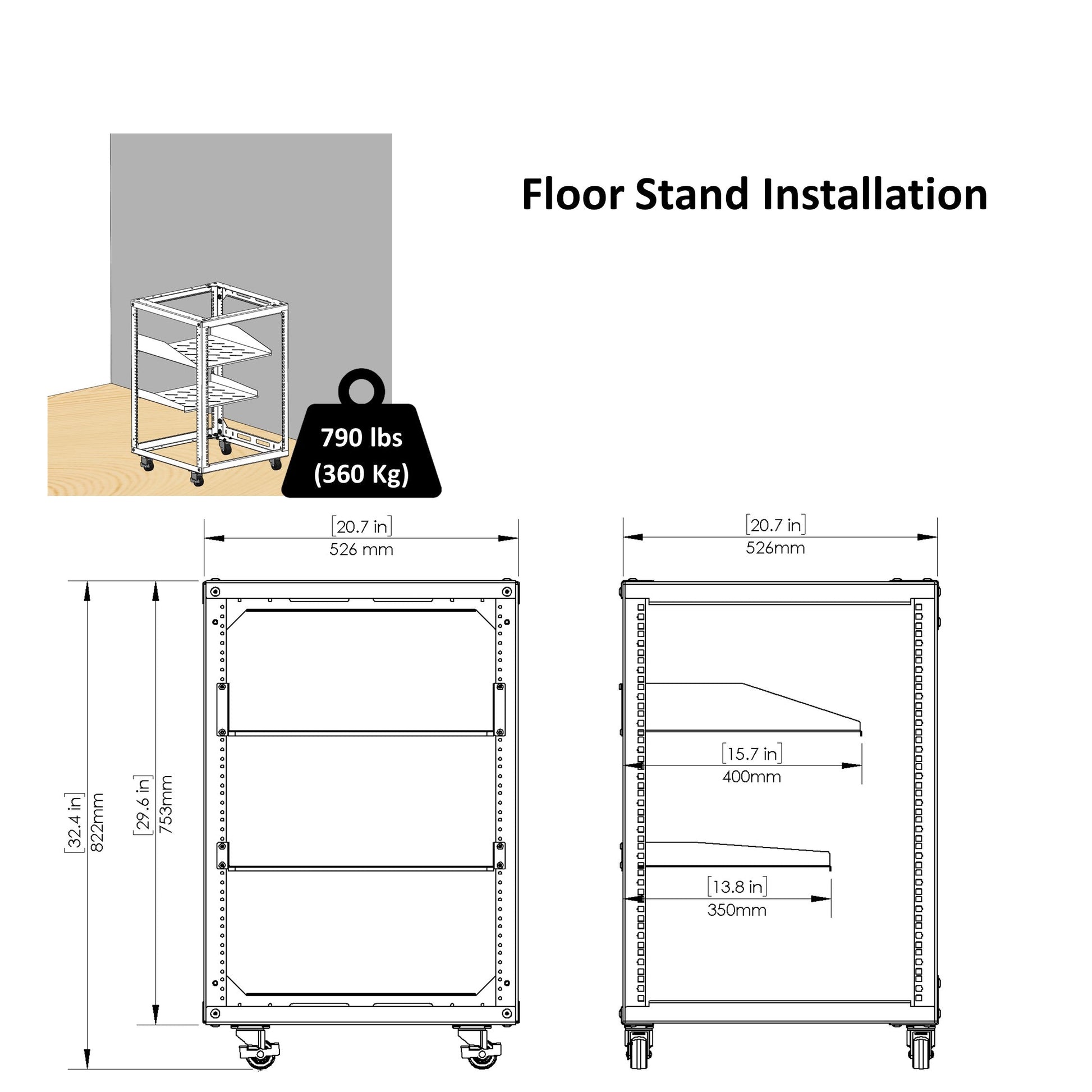

  • Rack dimensions: 15U (30" w/o casters) height, 20.7” width, and 20.7" depth.
  • Shelf:1U x 14" deep, 2U x 16" deep.
  • Rack weight capacity: 790lbs on the floor, 200lbs wall mounted
  • Shelf weight capacity: 1U 30lbs, 2U 50lbs
  • Mounting: #10-32 x 3/4 Screws, M6 Square Nuts, Washers and Screws, Wall Anchors
  • Expandable and stack-able (for purchase of multiple racks)
  • Material: 2.0mm SPCC steel

Package Includes

  • 1 x 4-Post rack (Easy Assembly Required)
  • 1U x 14" shelf & 2U x 16" shelf
  • 4 x Casters (2 with brake)
  • 1 x Mounting screws and wall anchors package
  • Owner’s manual

Complete Kit and Ready for quick deployment

  • Includes everything you need to rack 'em up! Entire 15U open frame rack structure, 1x 1U vented shelf (14" deep), 1x 2U vented shelf (16" deep), and rack mounting screws.
  • The rack comes flat packed and is easy to assemble with included hardware.

Universal and Optimal:

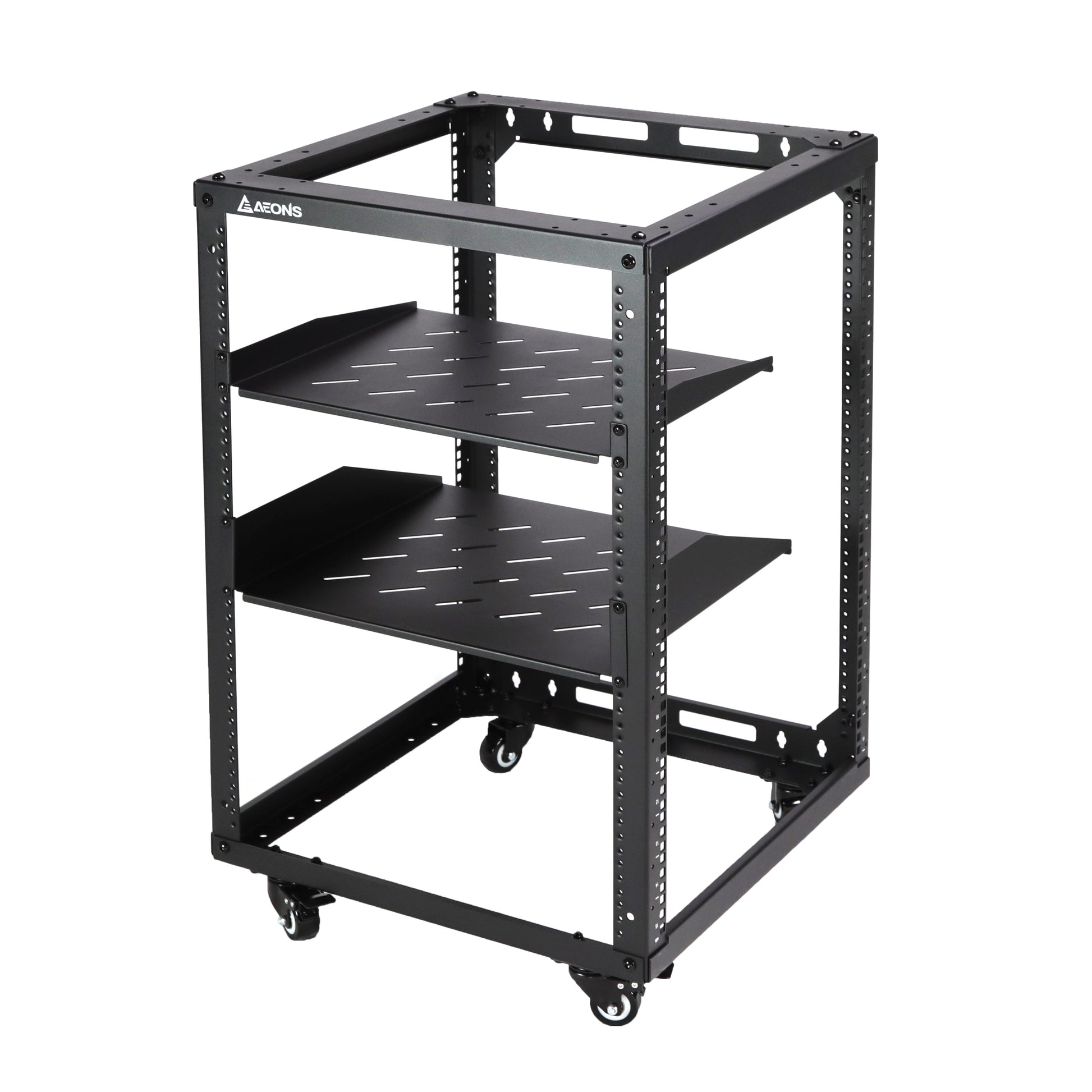

  • Wall-mounted or floor-standing with included brake casters.
  • Pre-drilled Base frames support securely fastening to the ground and stacking.
  • Easy assembly and installation. The compact design helps you maximize use of limited space.
  • From front and rear of your equipment, flexible Cable Management with access from any side.
  • Open design and included vented shelves optimize air flow

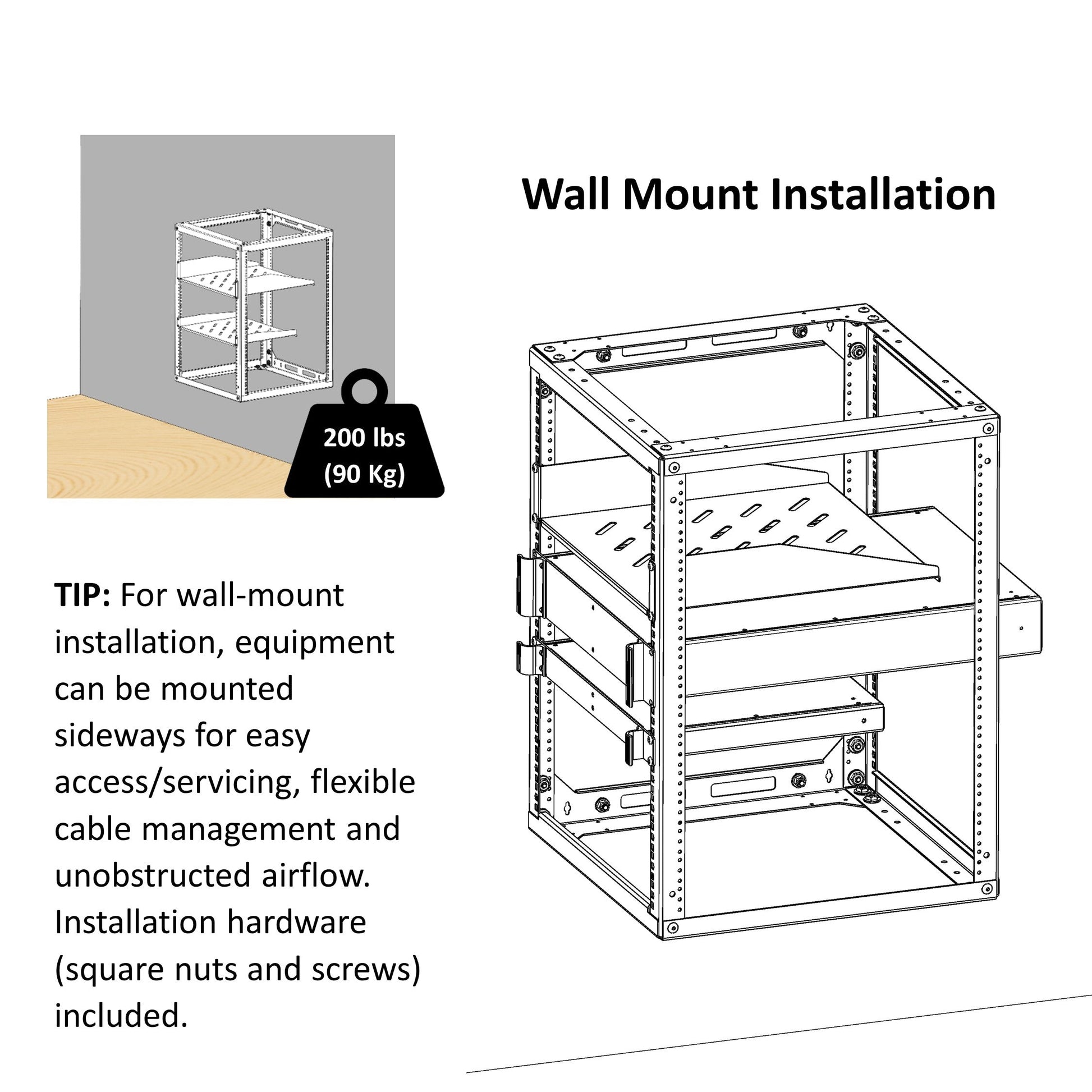

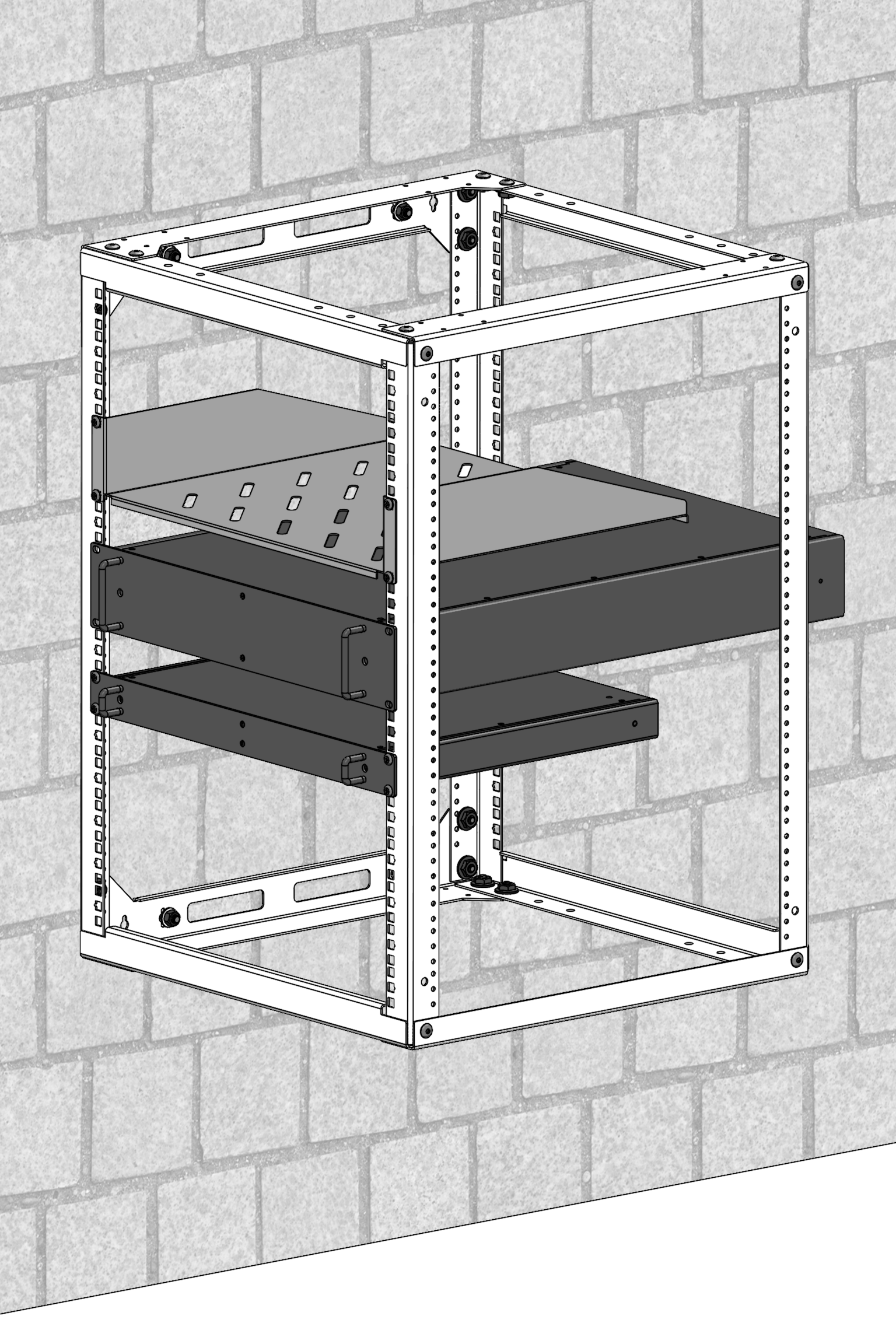

Side Mount Option:

  • The side mount configuration allows for a greater mounting depth with the elimination of a rear wall barrier.
  • Unobstructed back-end of equipment reduces hot spots for efficient operation and longer lifespan of networking equipment.

Quality Construction and Equipment Security

  • Sturdy and Durable 4-post construction, heavy-duty SPCC cold-rolled steel
  • Support maximum load capacity up to 790 lbs (360kg) for floor standing, 200 lbs (90kg) for wall mounting.
  • The black RAL9005 powder coat finish makes rack resistant to scratching and rusting.

Complete Kit and Ready for quick deployment

  • Includes everything you need to rack 'em up!
  • The rack comes flat packed and is easy to assemble with included parts and hardware: entire open frame rack structure, vented shelves, rack mounting screws, wall anchors.

Model

SRC5515

Type

Open-Frames

Style

4-Post; Floor-Standing; Wall-Mount

Rack Height

15U

Rack Depth (in. / mm)

20.7 / 526

Maximum Device Depth (in. / mm)

N/A

Minimum Device Depth (in. / mm)

N/A

Load capacity (lbs)

790 (200 for wall-mount)

Number of vertical mounting rails

4

Number of L brackets

0

Shelves

No

Door Type

No

Unit Dimensions (H x W x d / in.)

30 x 20.7 x 20.7

Unit weight (lbs)

55

Shipping Dimensions (W x D x H / in.)


Shipping weight (lbs)


Color

Black

Grounding lug

No

Grounding Wire kit

No

Built-in cable management

No

Compliance

RoHS, CE, EIA/ECA-310-E

Warranty Period

10-year limited warranty
