Description
Overview

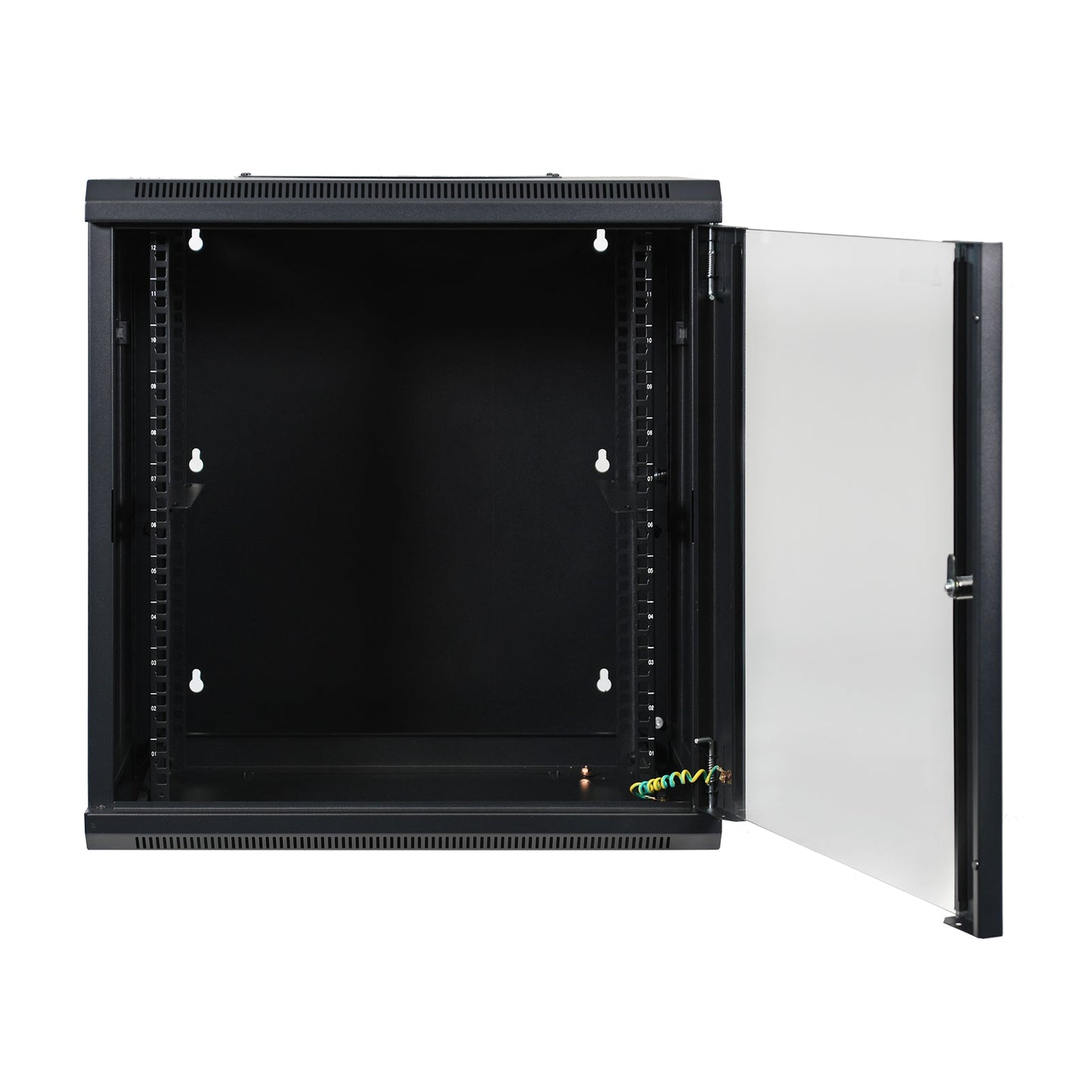

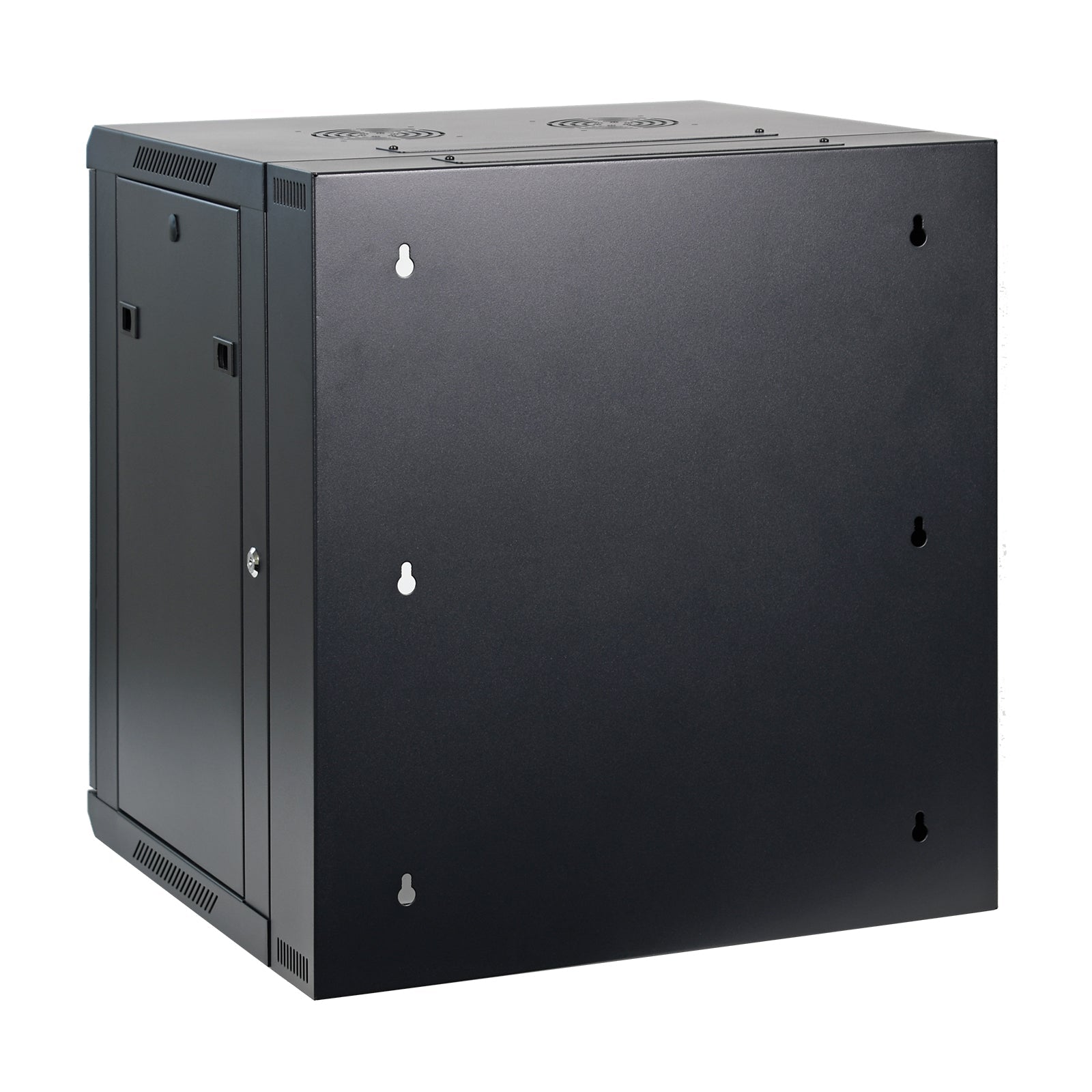

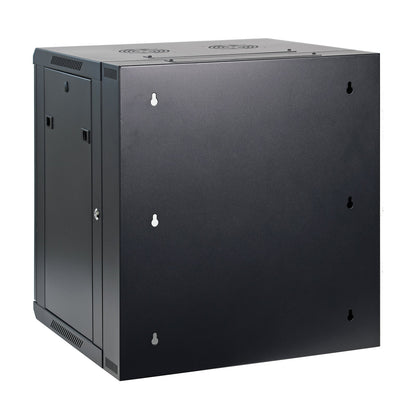

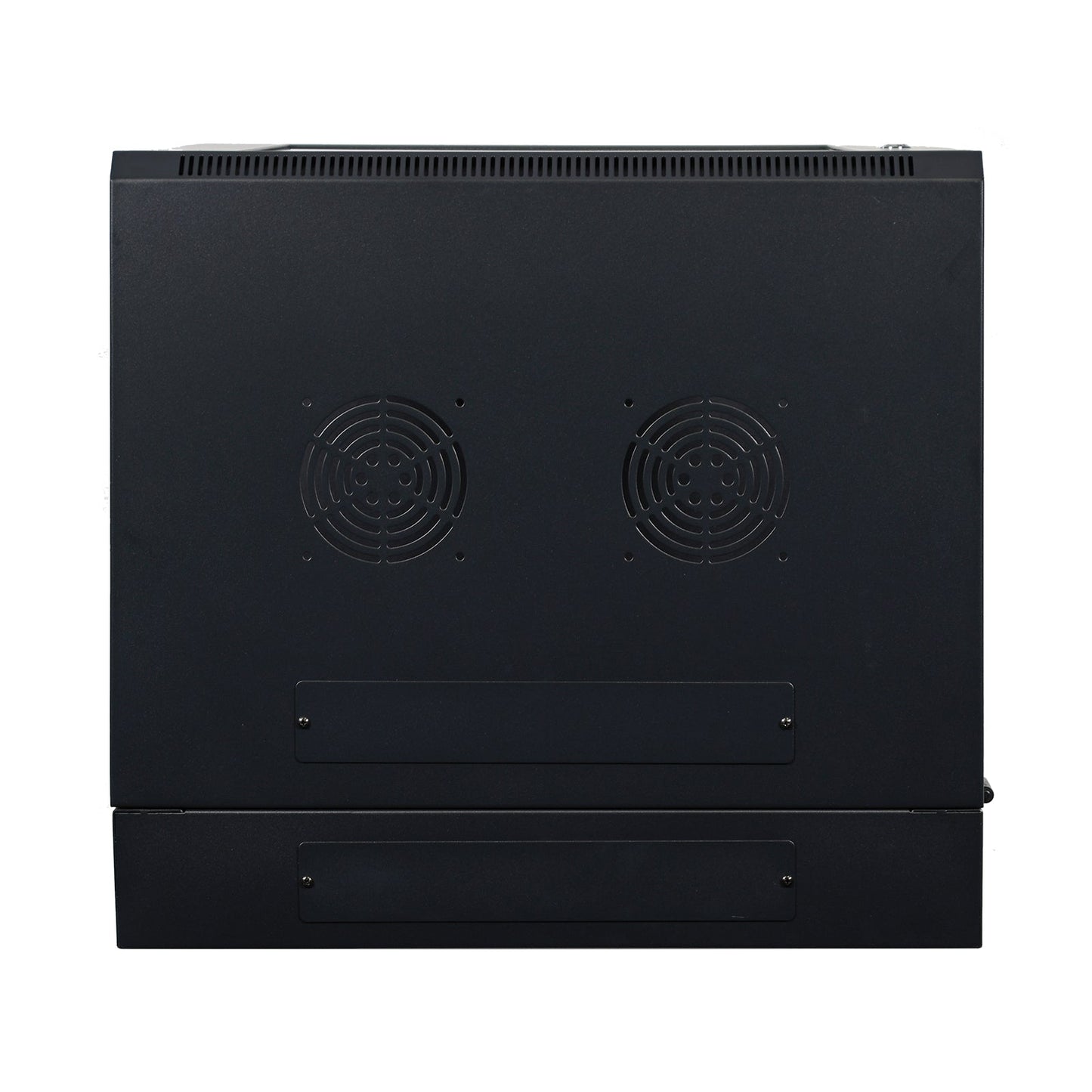

Aeons Signature SB-Series Double Section Swing-Out Wall Mount Cabinets is your turnkey solution for EIA-standard 19-inch rackmount equipment in network closets, offices, classrooms, and other locations with limited floor space. The cabinet swings away from the wall for easy back-door access to equipment and cabling during installation and maintenance. The front and rear doors lock securely. The vented frames and optional cooling fans provide excellent air ventilation.- Fits rack equipment up to 16.5 in deep. Maximum load capacity of 200 lbs.
- Swing away from wall on hinge for easy access to the rear of equipment.
- Reinforced lockable door and main chassis for increased security.
- Removable door and side panel; Cable pass-through on top and "&"bottom.
- Rugged welded structure with ventilation at front, sides, top and bottom.
- 10-year limited warranty"
Package Includes
- Wall mount network server cabinet (flat packed)
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- (2) Keys
Features
Contemporary Aesthetic Design
- Save valuable workspaces; design for network wiring in closets, offices, classrooms, and other areas with limited floor space but needs to keep everything organized, secure and efficient.

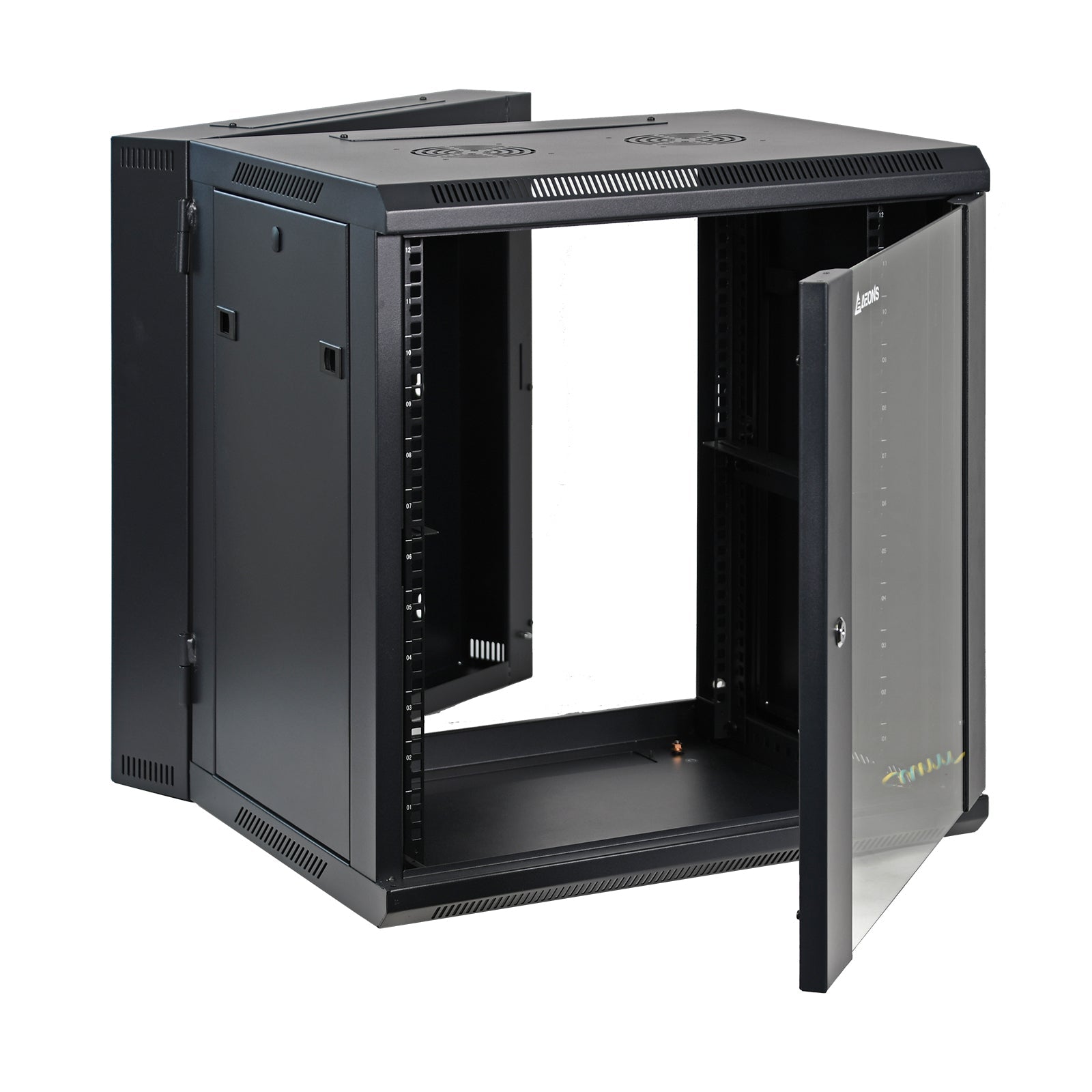

- Removable and reversible front door and removable side panel design, each with quick-release mechanism allows easy access to equipment.
Quality Construction and Equipment Security
- Heavy-duty cold rolled steel and sturdy welded frame construction with durable powder coating finish.
- Reinforced, lockable front door and side panel (optional lock) ensure equipment security.
- The vented frames and optional cooling fans provide excellent air ventilation. Vented door with permeability up to 80%.
Easy installation and quick deployment

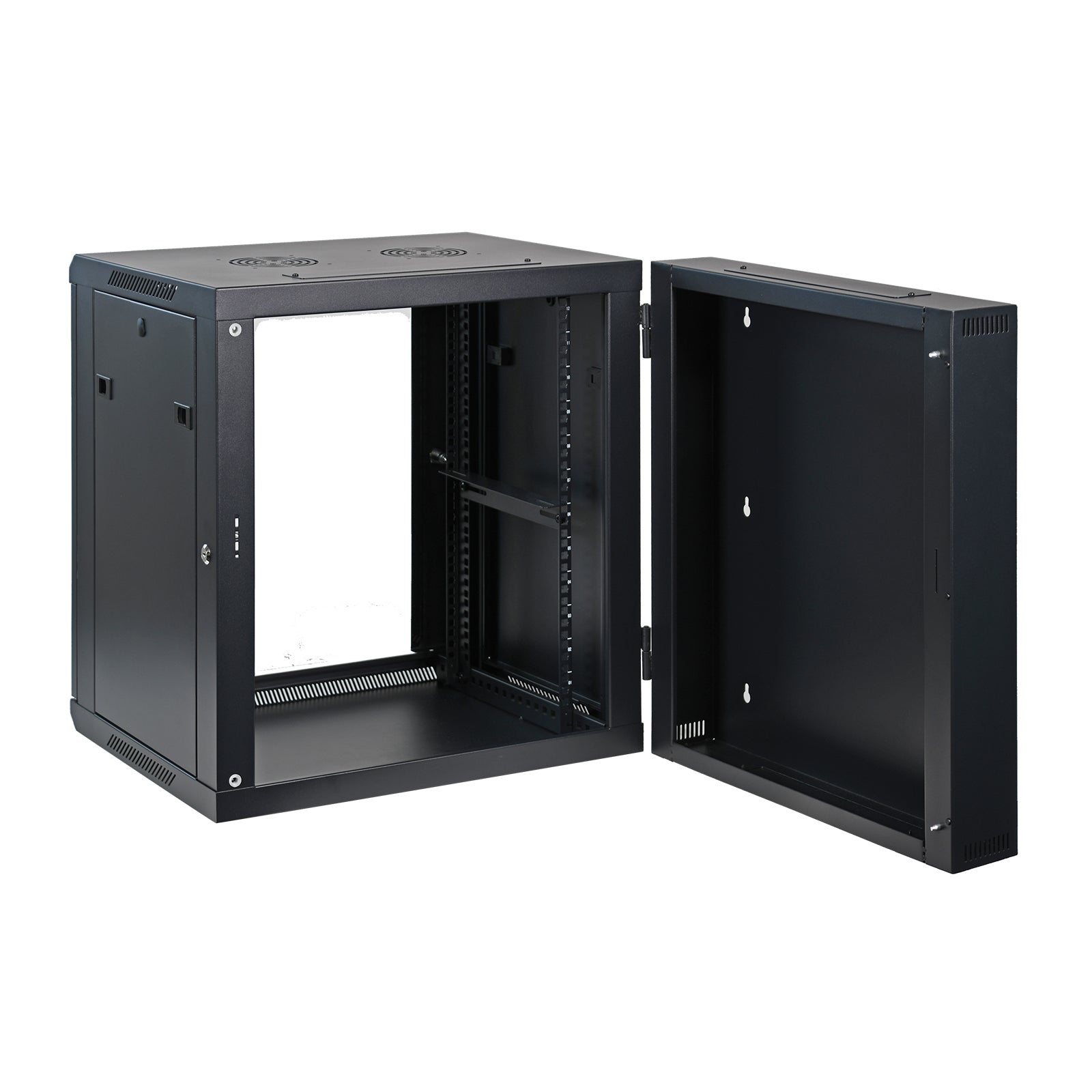

- Swing out feature enables easy access to rear for servicing and management even after the rack is wall mounted.

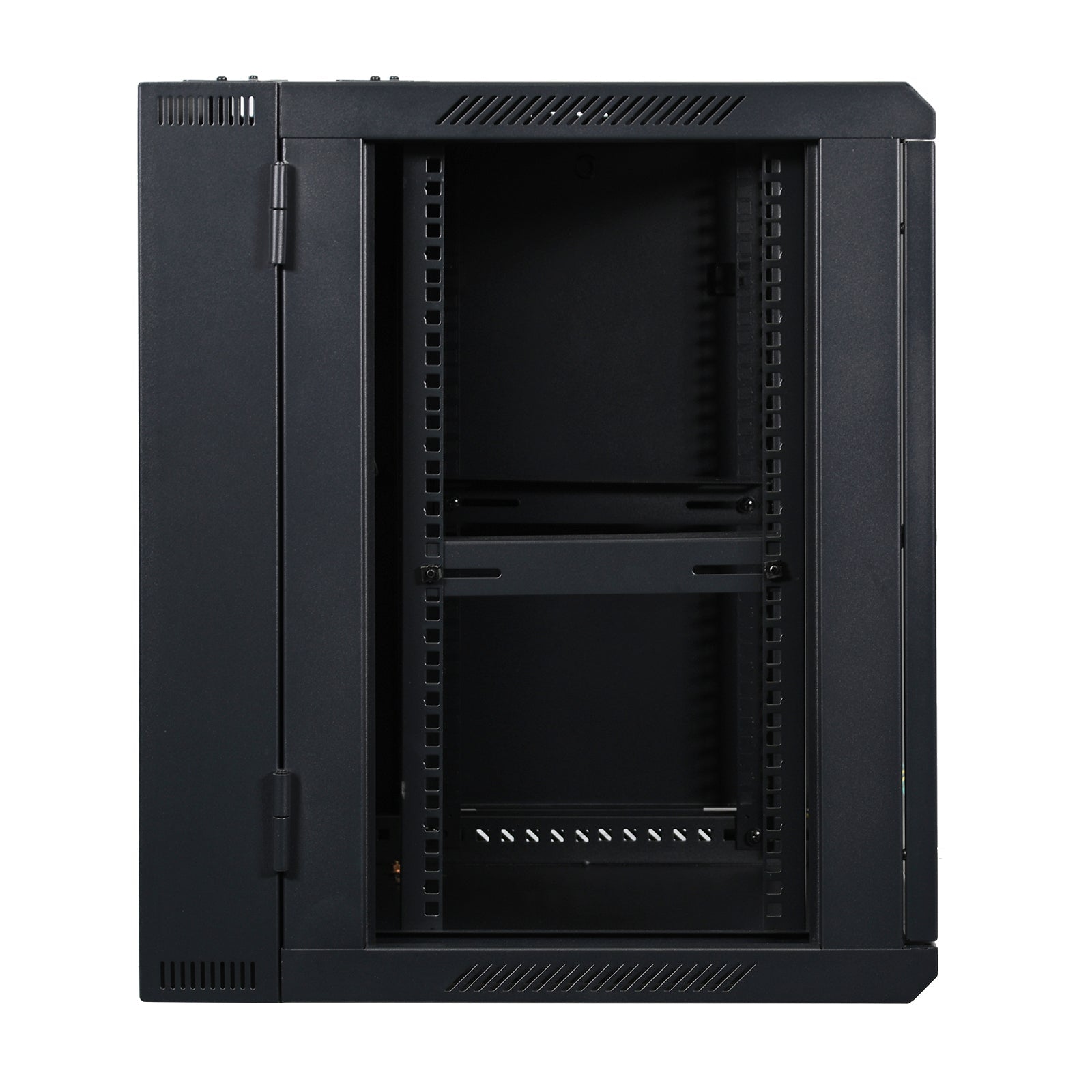

- Adjustable vertical mounting rails can accommodate various depth rack equipment.

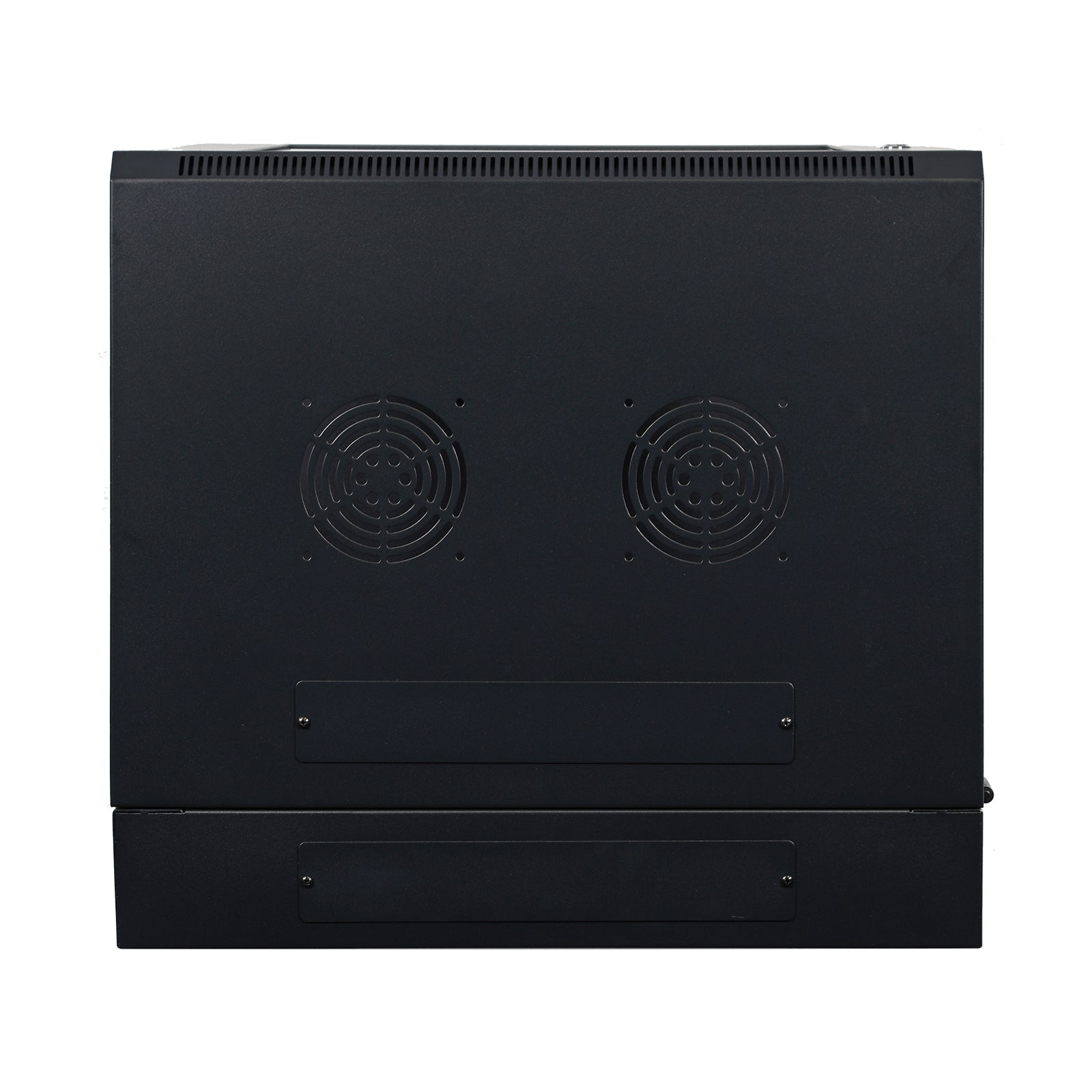

- Top and bottom panels have cable pass-through knockouts help keep cable neat and organized.
Specification
Model |
SB6412 |
Type |
Enclosure |
Style |
Wall-Mount |
Rack Height |
12U |
Rack Depth (in. / mm) |
22 / 550 |
Maximum Device Depth (in. / mm) |
16.5 / 415 |
Front Door Type |
Tempered Glass |
Load capacity (lbs) |
200 |
Number of vertical mounting rails |
4 |
Number of L brackets |
2 |
Shelves |
No |
Cable access |
Top, Bottom |
Unit Dimensions (W x D x H / in.) |
23.5 x 22 x 25 |
Unit weight (lbs) |
58 |
Shipping Dimensions (W x D x H / in.) |
26 x 24 x 28 |
Shipping weight (lbs) |
64 |
Color |
Black |
Grounding lug |
Front, bottom and back panels |
Grounding Wire kit |
Yes |
Built-in cable management |
No |
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E, IP20 Protection |
Warranty Period |
10-year limited warranty |
