Description
Overview

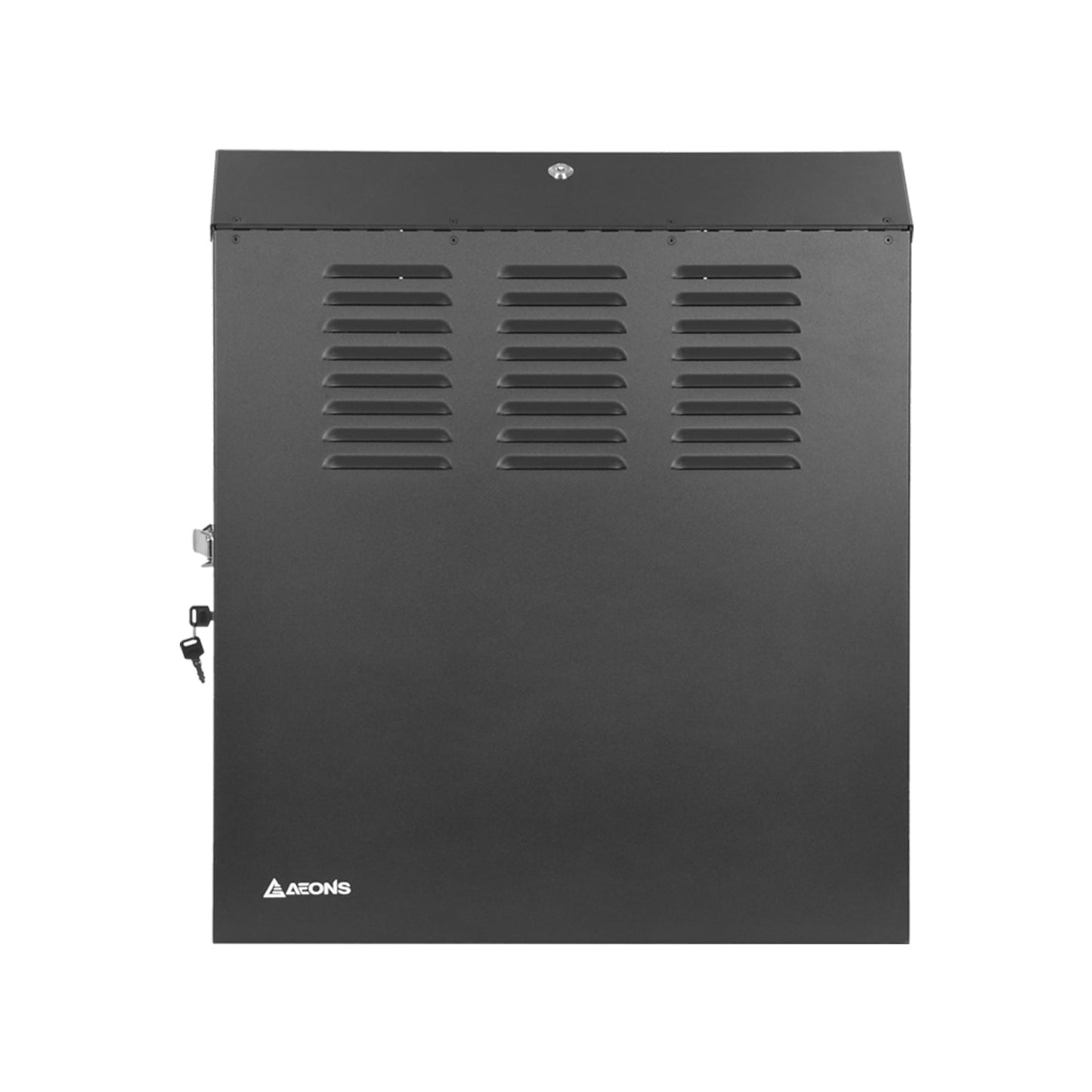

Our Vertical Wall-Mount Rack Cabinet is your turnkey solution for storing EIA-standard 19-inch rack equipment if you don’t have enough space for a full-size rack or cabinet in network closets, offices, classrooms, retail stores and other areas with limited floor space but high demand for secure and organized storage.

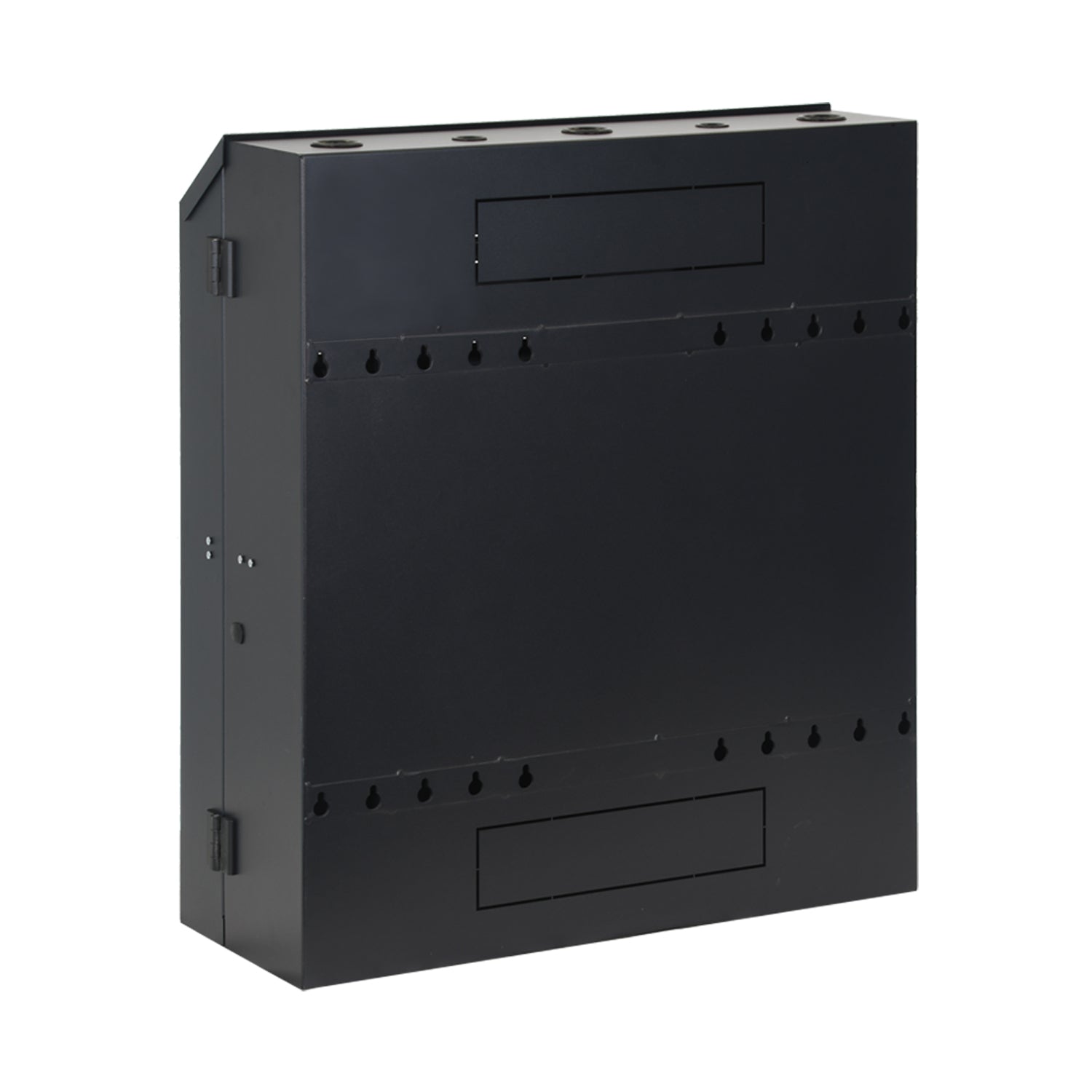

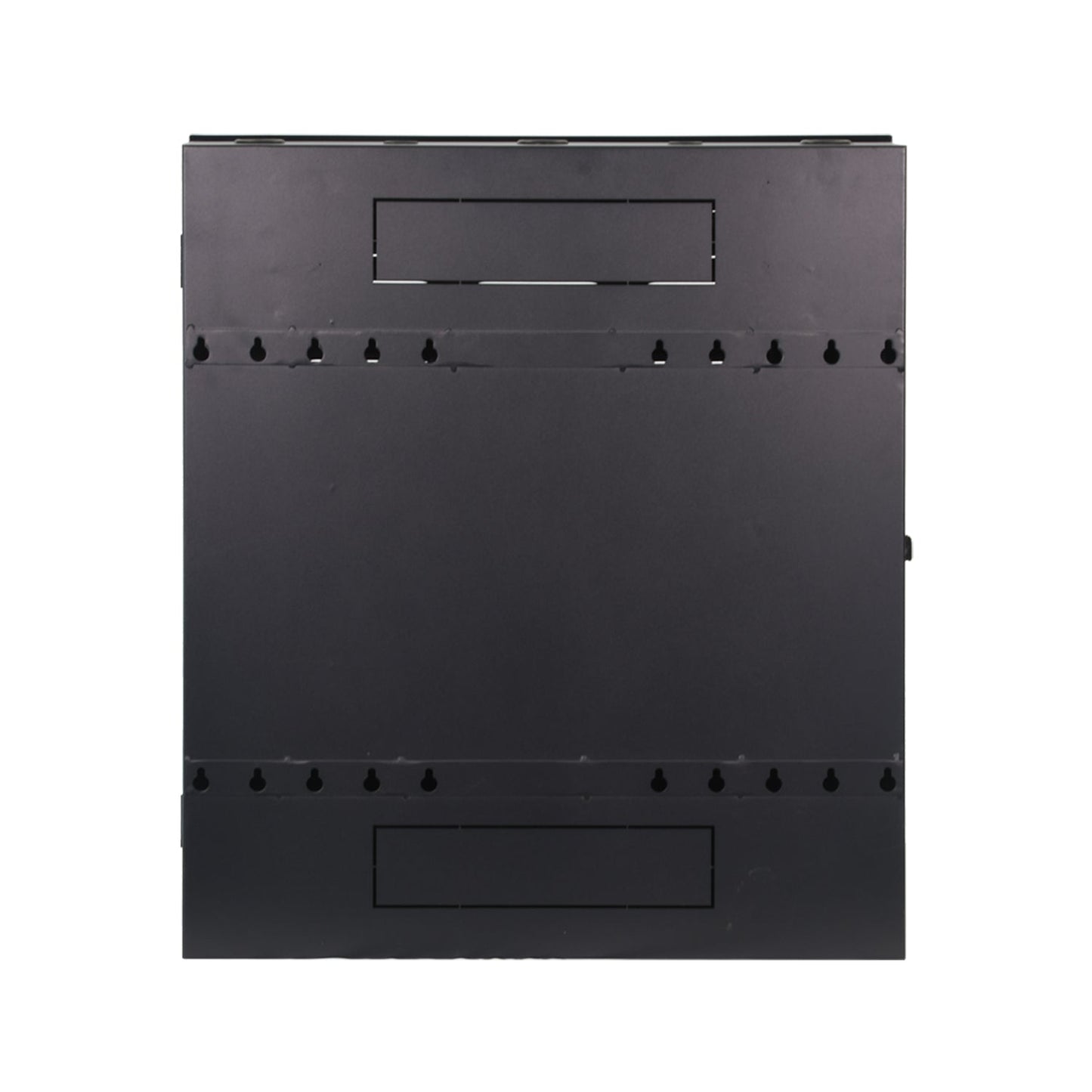

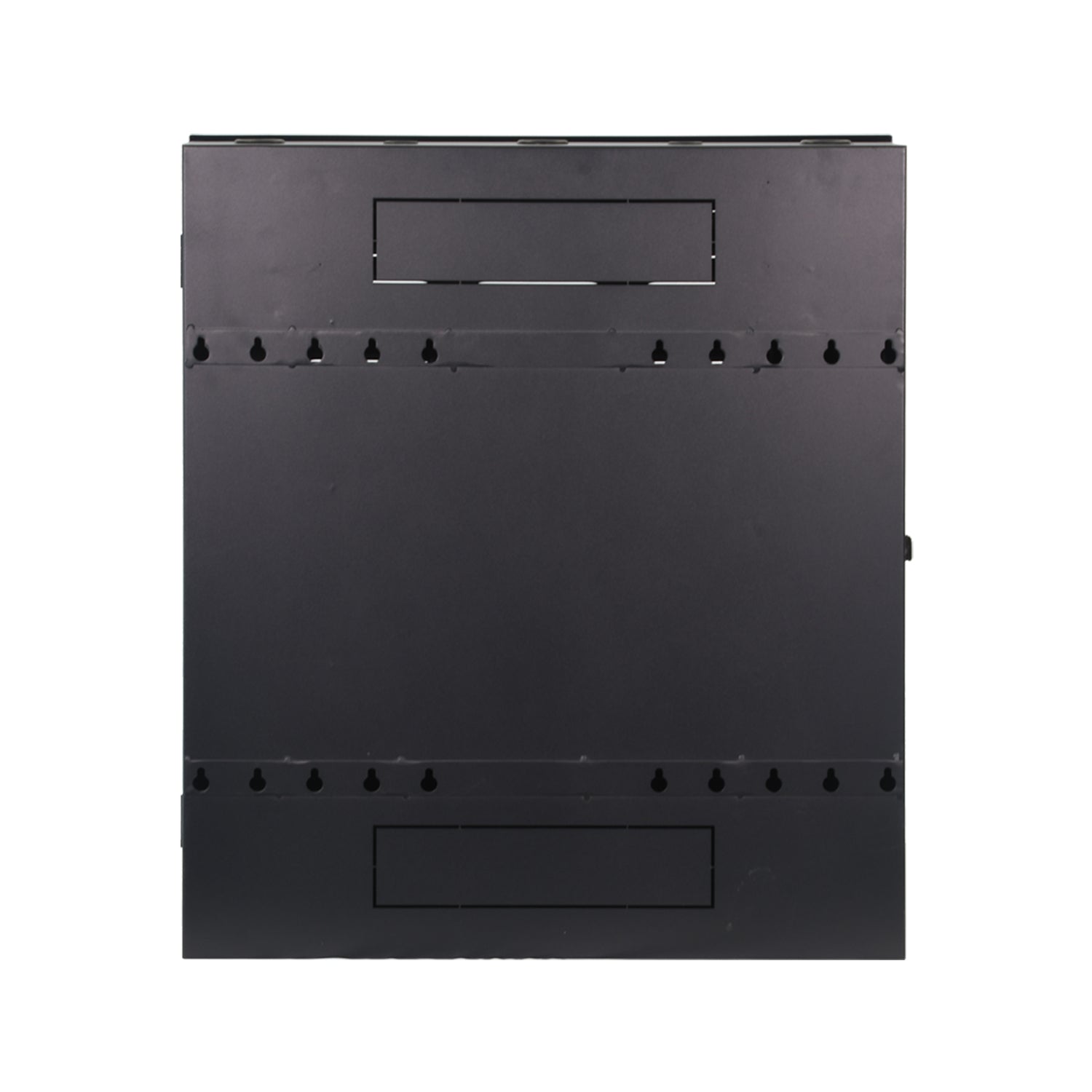

These low-profile cabinets save space by extending only minimal depth from the wall while housing the length of your equipment vertically.
Sturdy welded frame construction made of high quality SPCC Cold Rolled Steel with durable powder coating finish. Reinforced, lockable, suitable for both indoor and outdoor applications. Available in 2U, 3U, 4U, 5U and 6U configurations.
- Low profile vertical mount space-saving design
- Convenient top and bottom ports and grommet for easy cable routing.

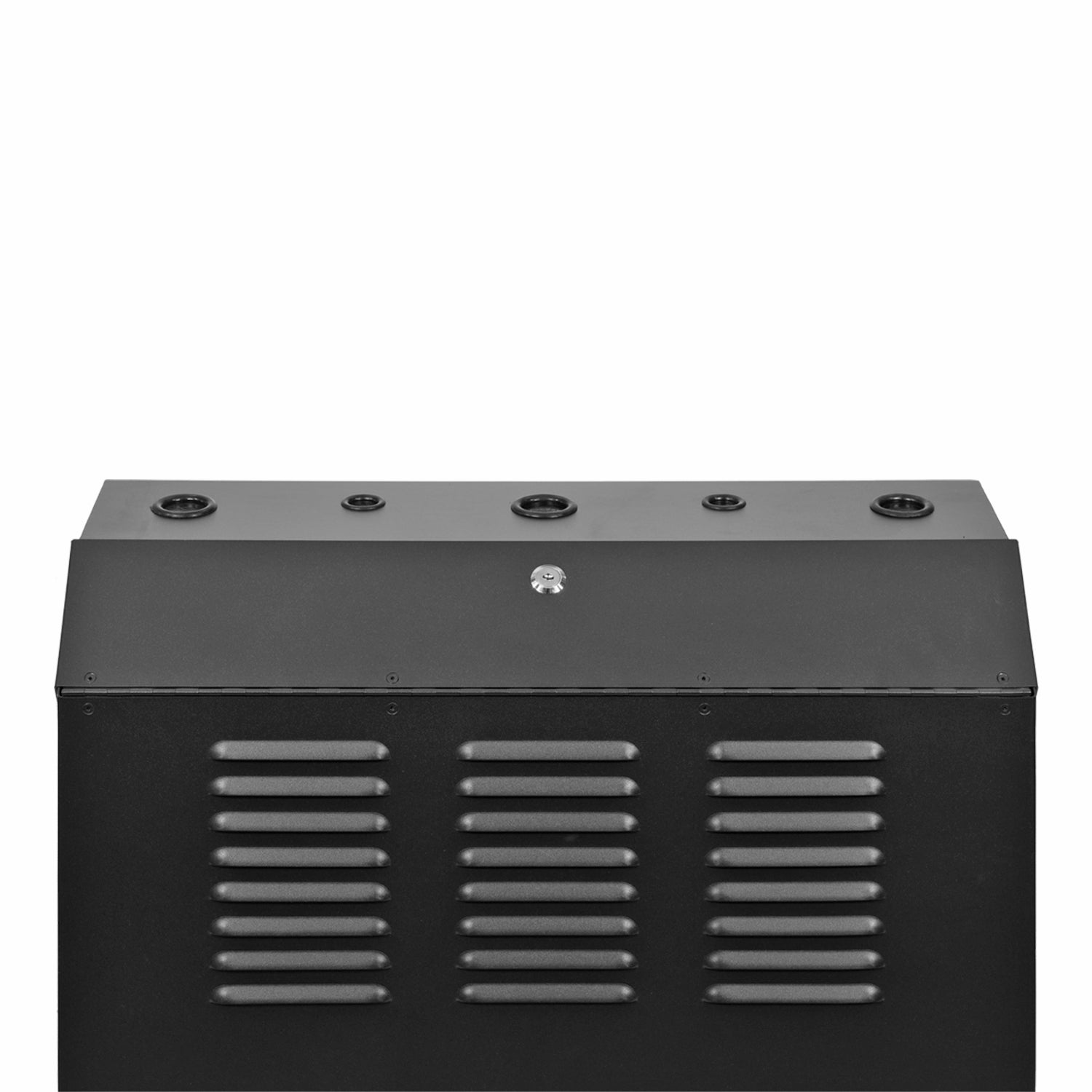

- Ventilated to keep equipment cool.
- Sturdy heavy duty welded frame cold rolled steel construction for durability.

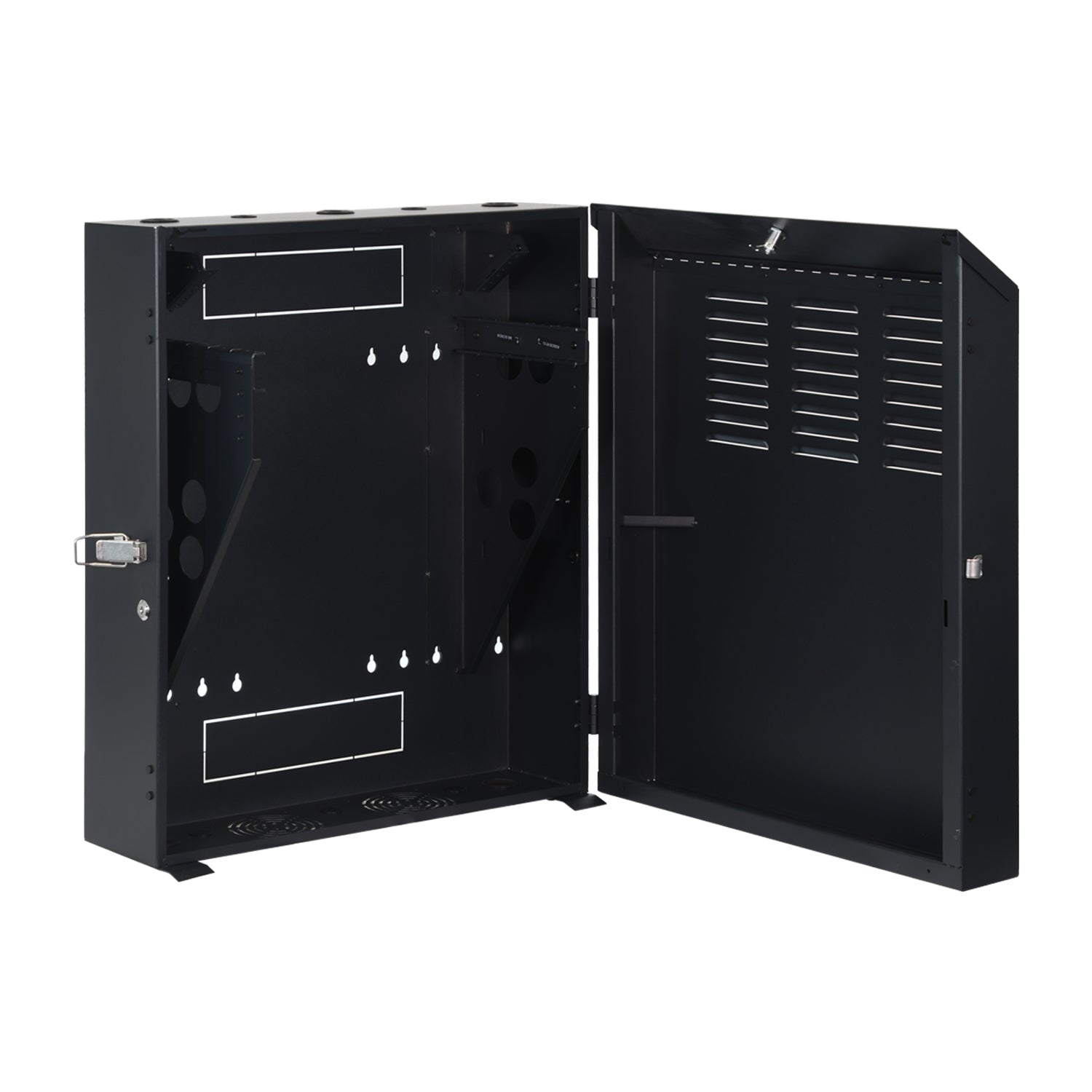

- Mounting rails have both cage nut and threaded #12-24 mounting options.
- A dedicated additional rail for patch panel.
- Rails are detachable for easy removal and maintenance.
- Mount standard 19” rack equipment up to 23 inch deep.
- Dimensions: 9.75"H x 25.25"W x 29"D / Max Load Capacity: 200 lbs.
Package Includes
- Vertical Wall Mount network server cabinet (fully assembled)
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- (2) Keys
Features
Space-Saving Design:
- Convenient low profile vertical mount space-saving designed to mount standard 19” rack equipment with extra depth.
- Features cable access grommets and punch out for easy cable management.
- The vents and optional cooling fans provide excellent air ventilation.
Quality Construction and Equipment Security:

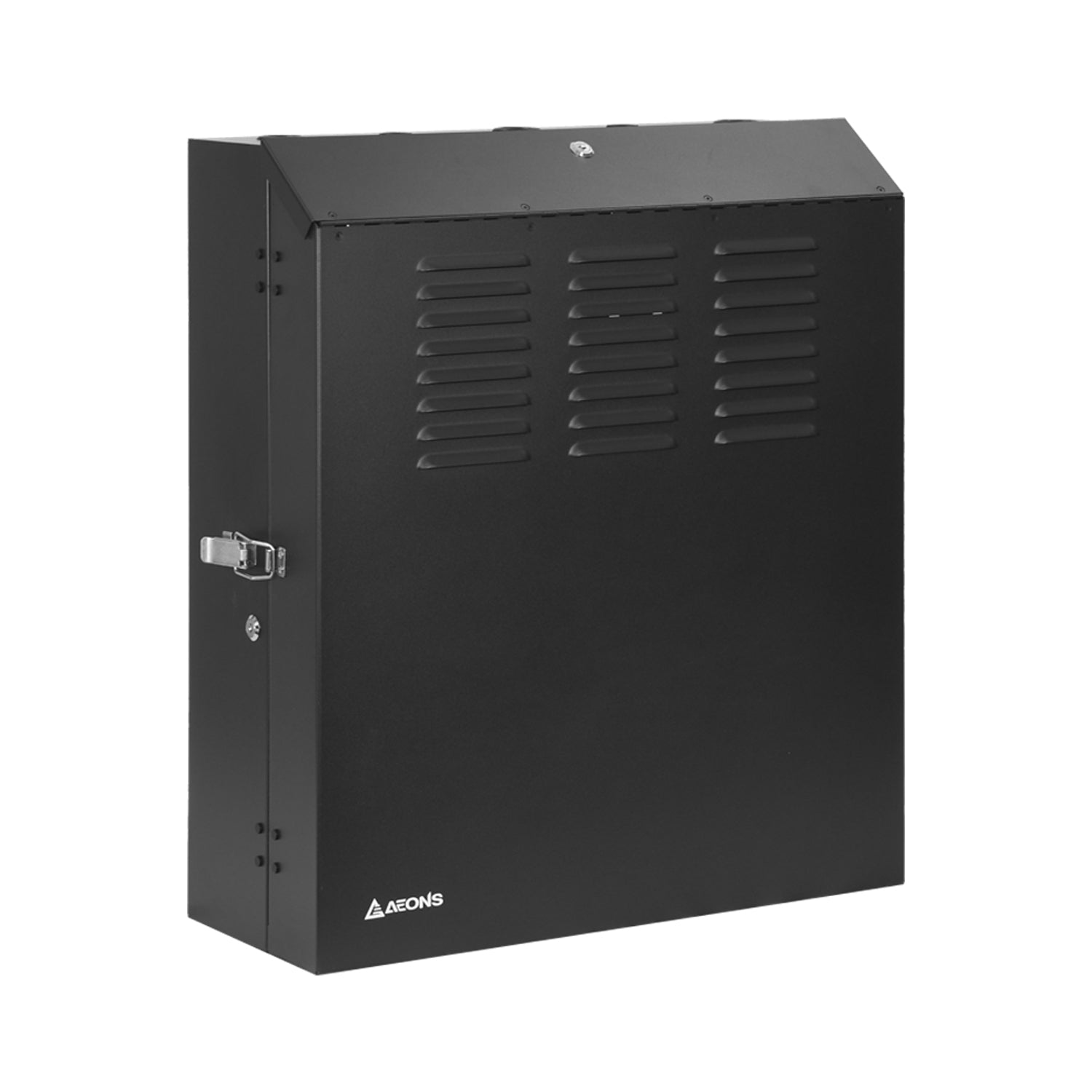

- Sturdy heavy duty welded frame cold rolled steel construction for durability. Meet requirements towards Payment Card Industry (PCI) Data Security compliance. Locking front door for security.

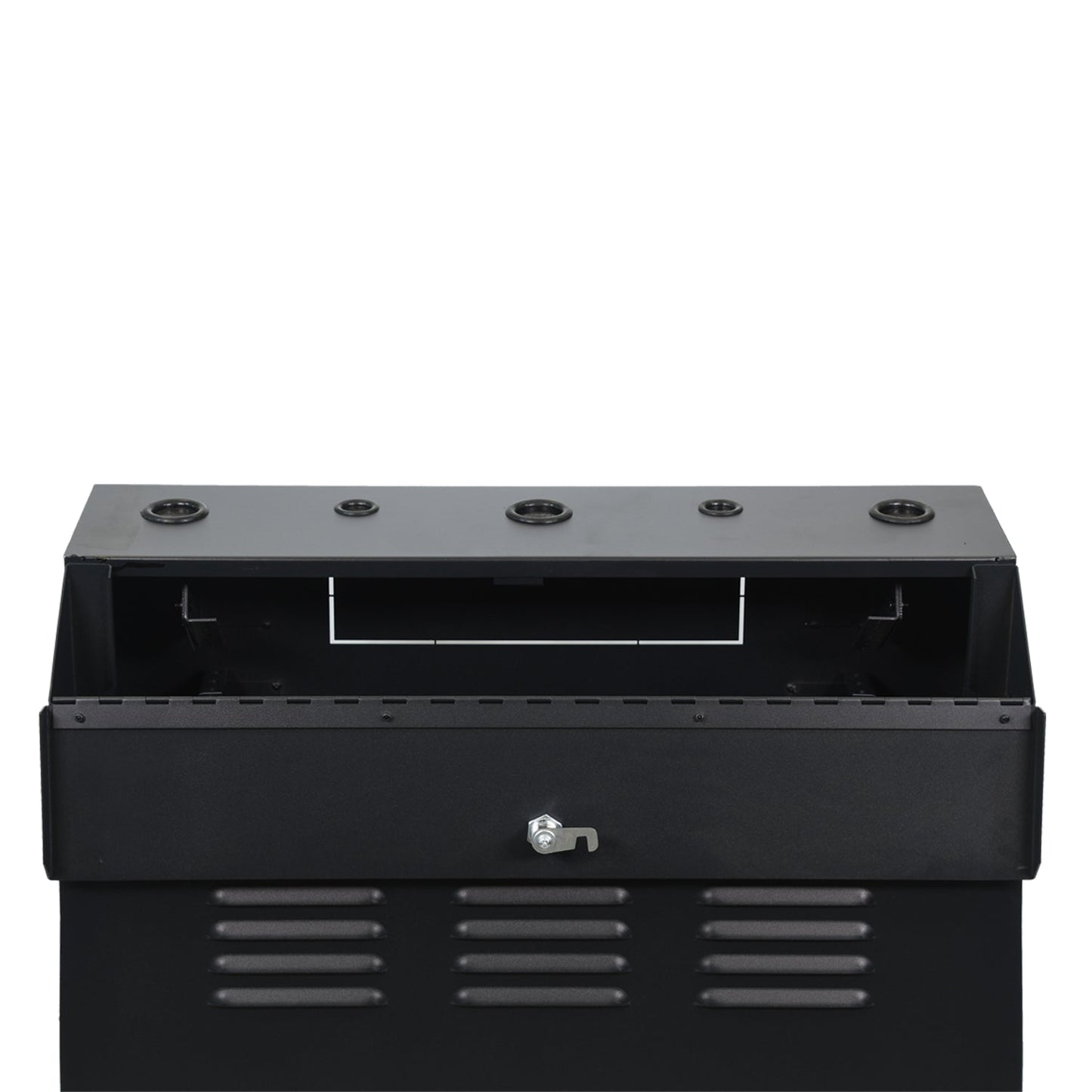

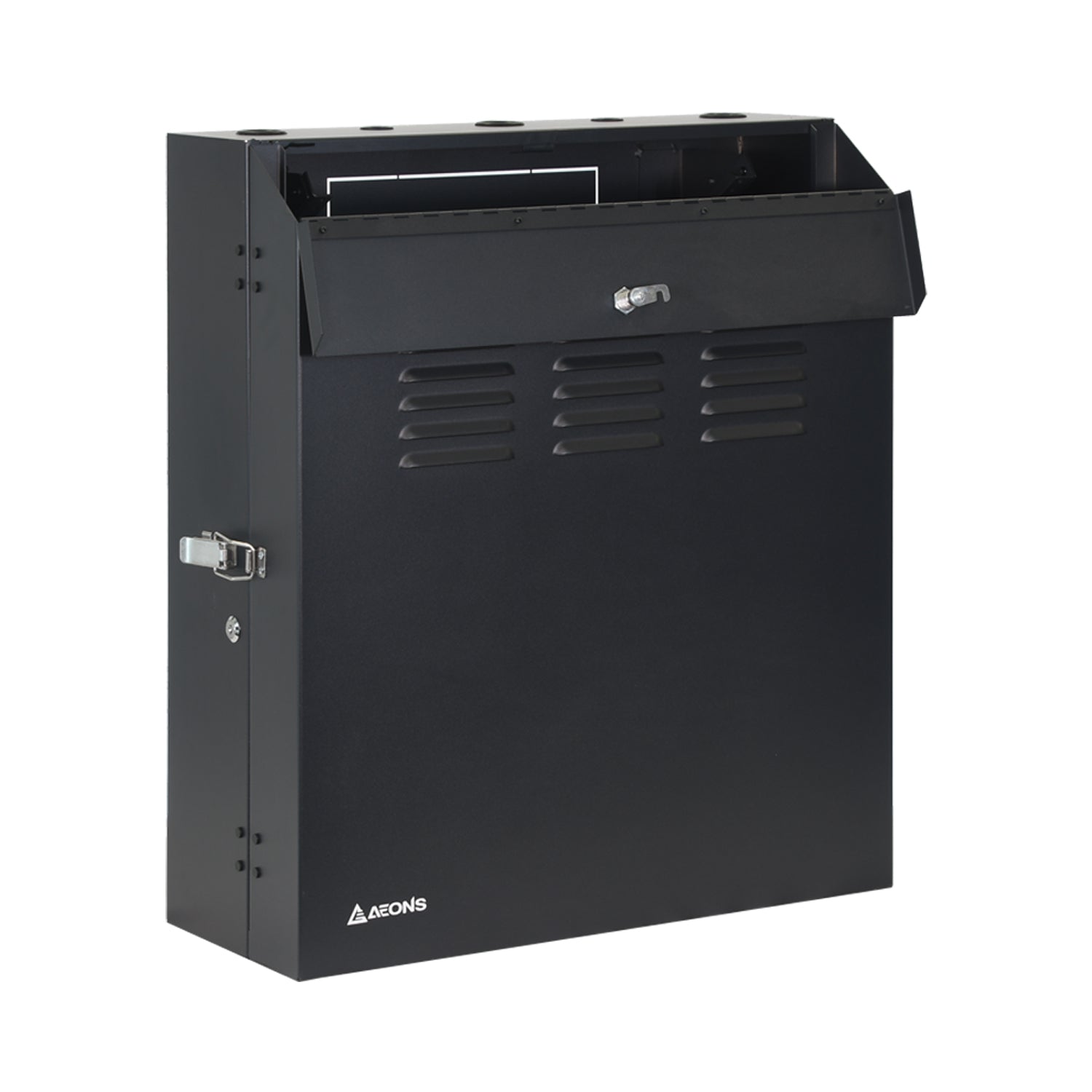

- The locking top panel flips open to allow quick access to connected equipment.
- Provide EIA/ECA 310-E compliant mounting rails, and meet compliance with CE, RoHS, NEMA Rated Type-1, IP20 Protection Grade, PCI, HIPAA.
Easy Equipment Installation:
- The server rack comes fully assembled and ready to mount to the wall, including all the necessary hardware to install equipment.
- Mounting rails have both cage nut and threaded #12-24 mounting options. A dedicated additional rail for patch panel. Rails are detachable for easy removal and maintenance.
Specification
|
Model |
SWF6705 |
|
Type |
Enclosure |
|
Style |
Wall-Mount |
|
Rack Height |
6U |
|
Rack Depth (in. / mm) |
29 / 729 |
|
Maximum Device Depth (in. / mm) |
23 / 585 |
|
Front Door Type |
Solid |
|
Load capacity (lbs) |
200 |
|
Number of mounting rails |
4 |
|
Number of L brackets |
N/A |
|
Shelves |
N/A |
|
Cable access |
Top, Bottom |
|
Unit Dimensions (H x W x D / in.) |
9.75" x 25.25" x 29" |
|
Unit weight (lbs) |
|
|
Shipping Dimensions (H x W x D / in.) |
|
|
Shipping weight (lbs) |
|
|
Color |
Black |
|
Grounding lug |
Yes |
|
Grounding Wire kit |
No |
|
Built-in cable management |
No |
|
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E, IP20 Protection |
|
Warranty Period |
10-year limited warranty |
