Aeons SWS Seires 6U Wall-Mount Rack Cabinet, Server-Depth, Vertical/Side Mount, Assembled

Overview

This newly developed 5U Wall Mount Enclosure offers an innovative and space-efficient solution for deploying server and networking equipment for edge computing applications. Supporting a maximum weight capacity of 250 lbs, this compact, low-profile server rack extends only 14.5 inches (353mm) off the wall and supports server and networking equipment up to 30 inches (762mm) deep. Locking, removable doors and side panel allow easy installation and service.

Mission Critical Application:

• Compact, Low-Profile Design with Extra depth to supports latest generation edge server and networking equipment up to 30” (762mm),
• Low profile only extends 5” (353mm) of the wall while mounting on its side, ideal for application requiring a secure enclosure in limited floor space.

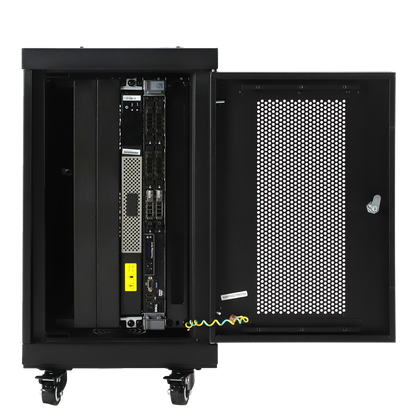

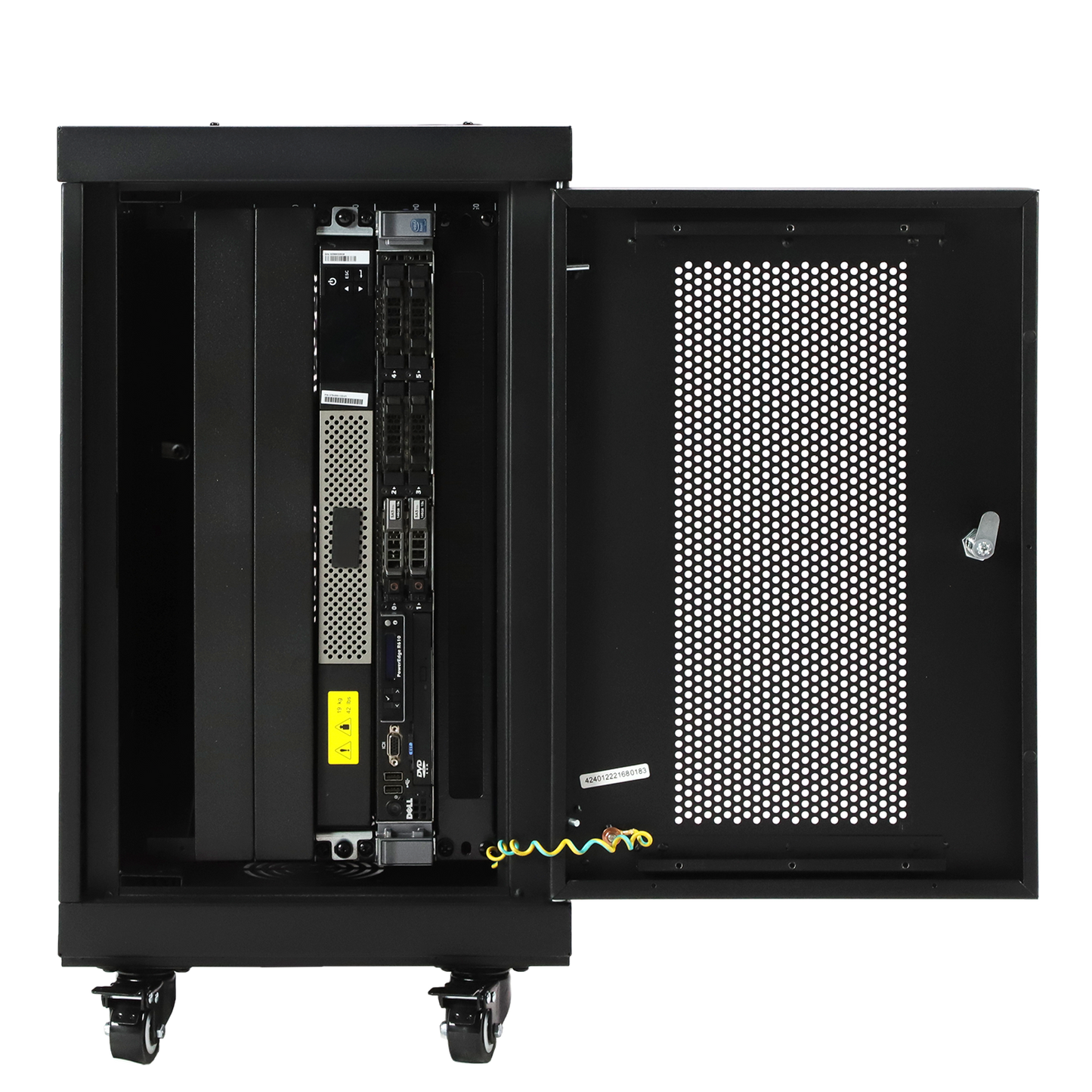

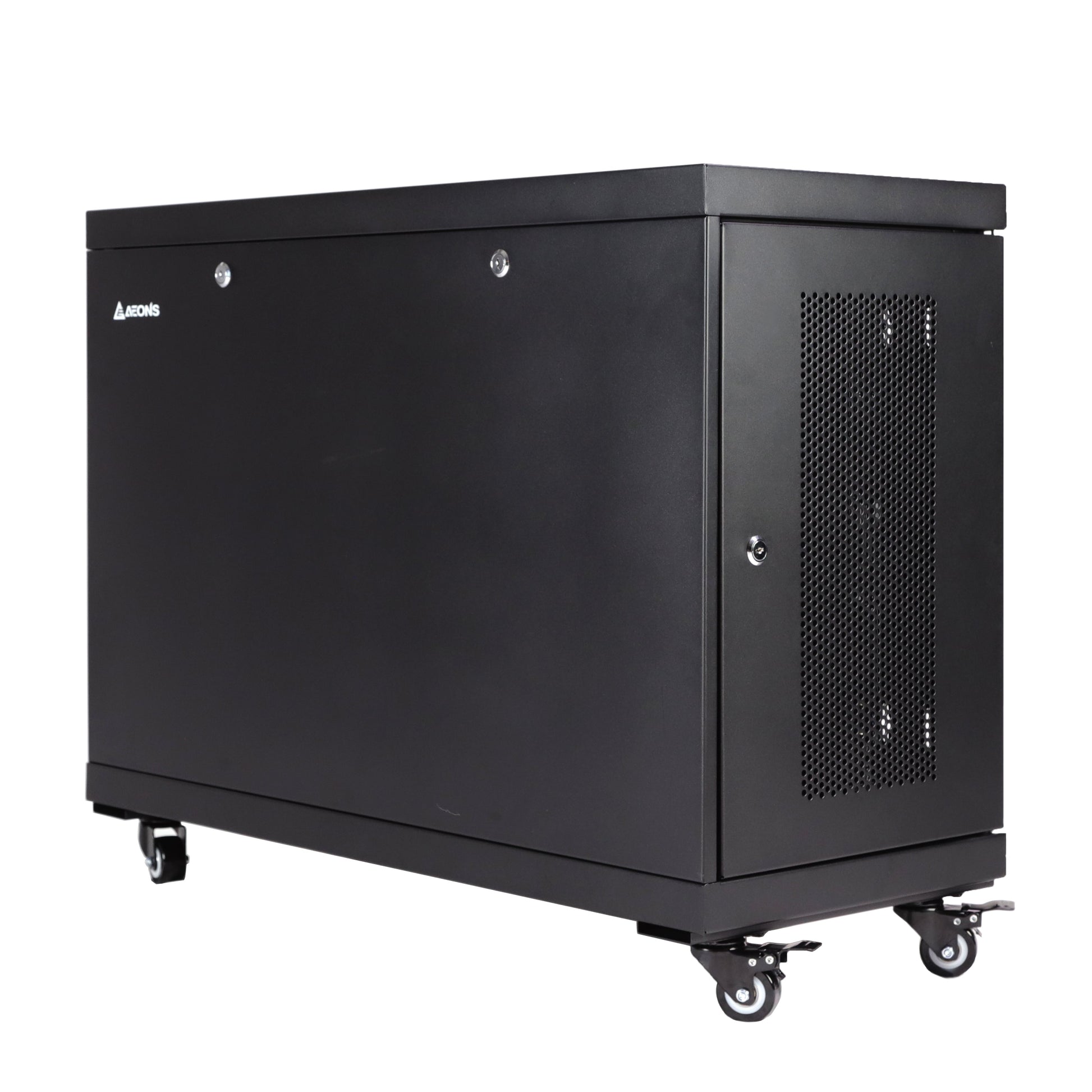

• Wall Mount or Floor Standing Configuration with casters.

Equipment Security:

• Sturdy heavy-duty welded frame construction for high Weight Load Capacity – up to 250lb (113kg).

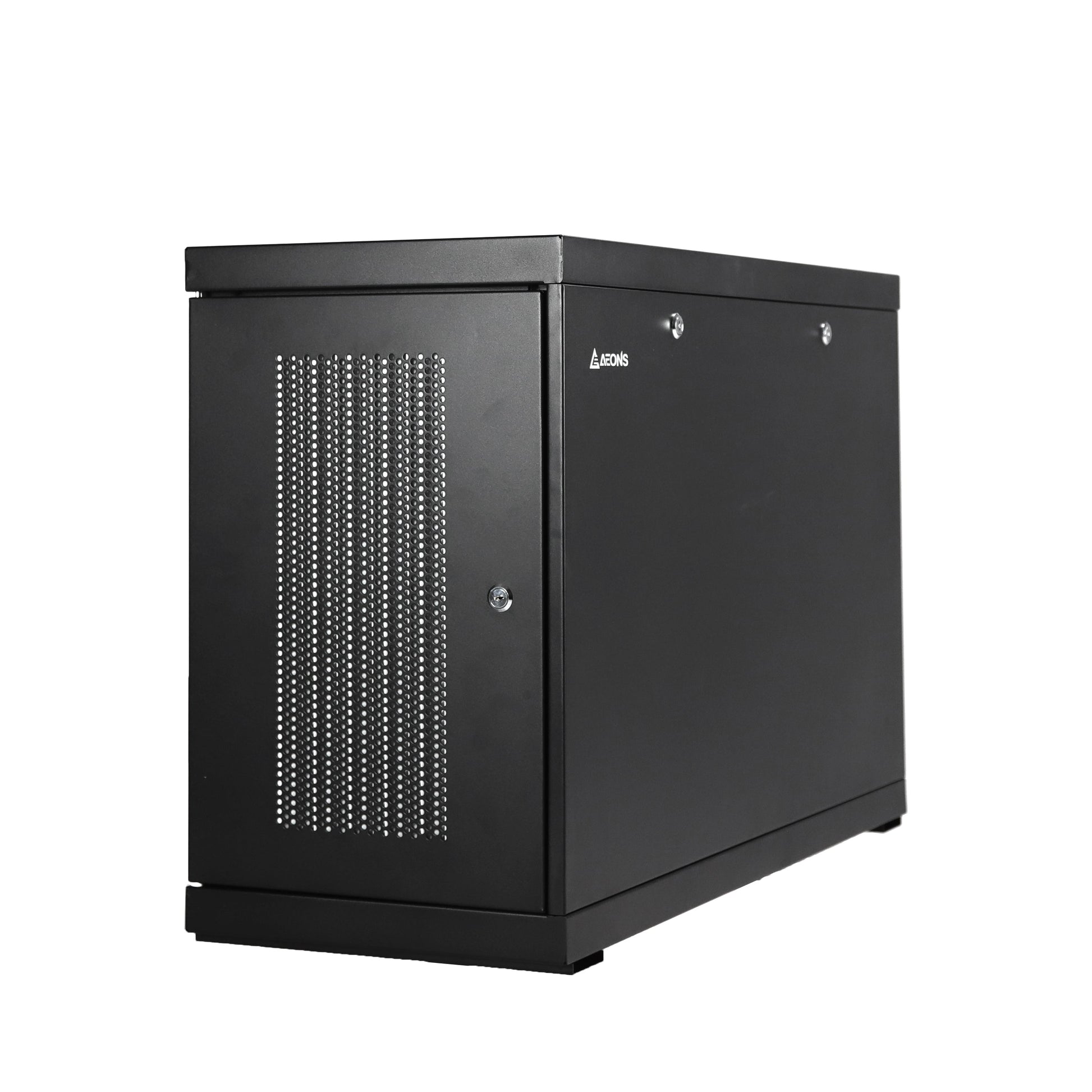

• Enhanced security with lockable side, front and rear doors. Meet requirements towards Payment Card Industry (PCI) Data Security compliance.

Cooling Efficiency:

• Perforated door promotes efficient airflow.

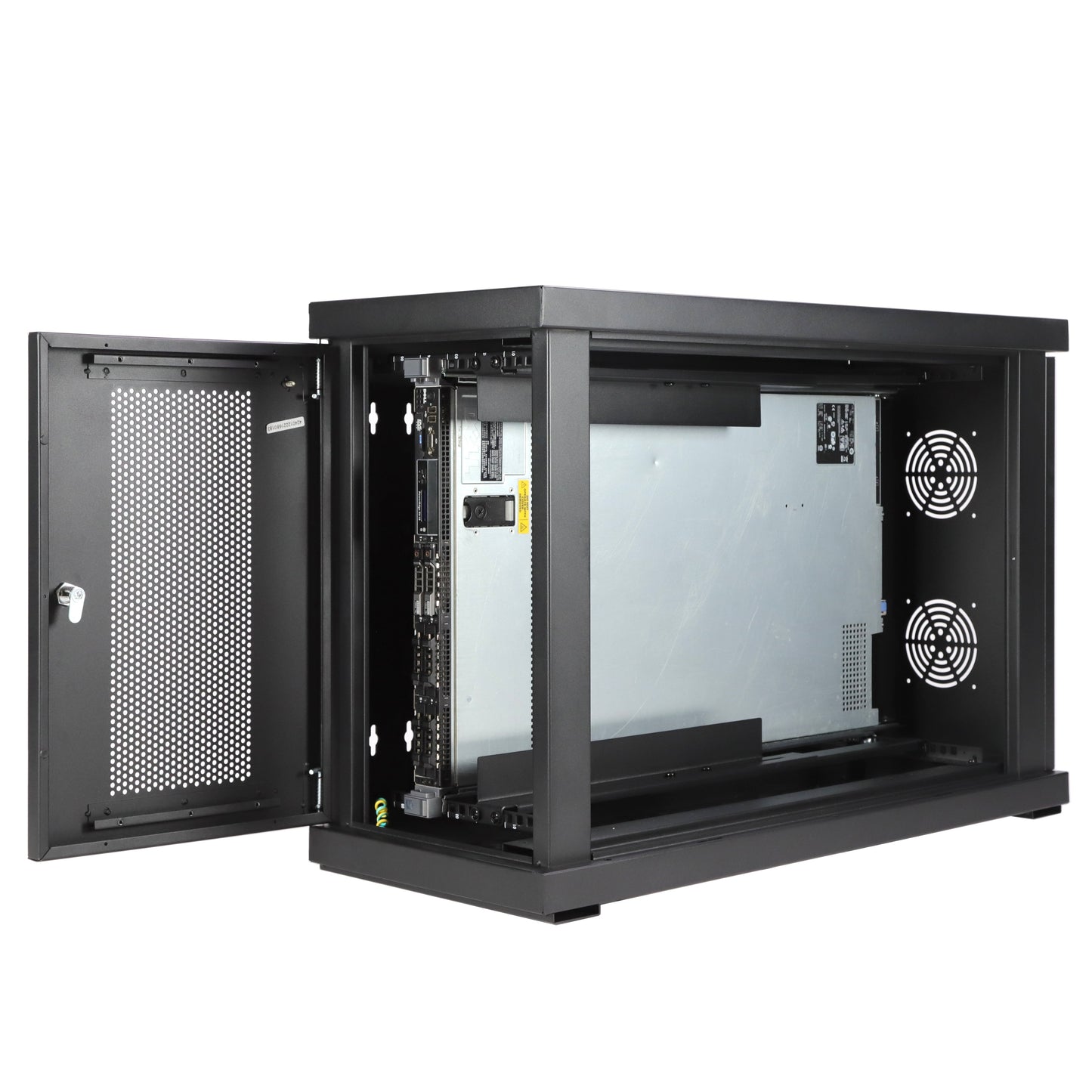

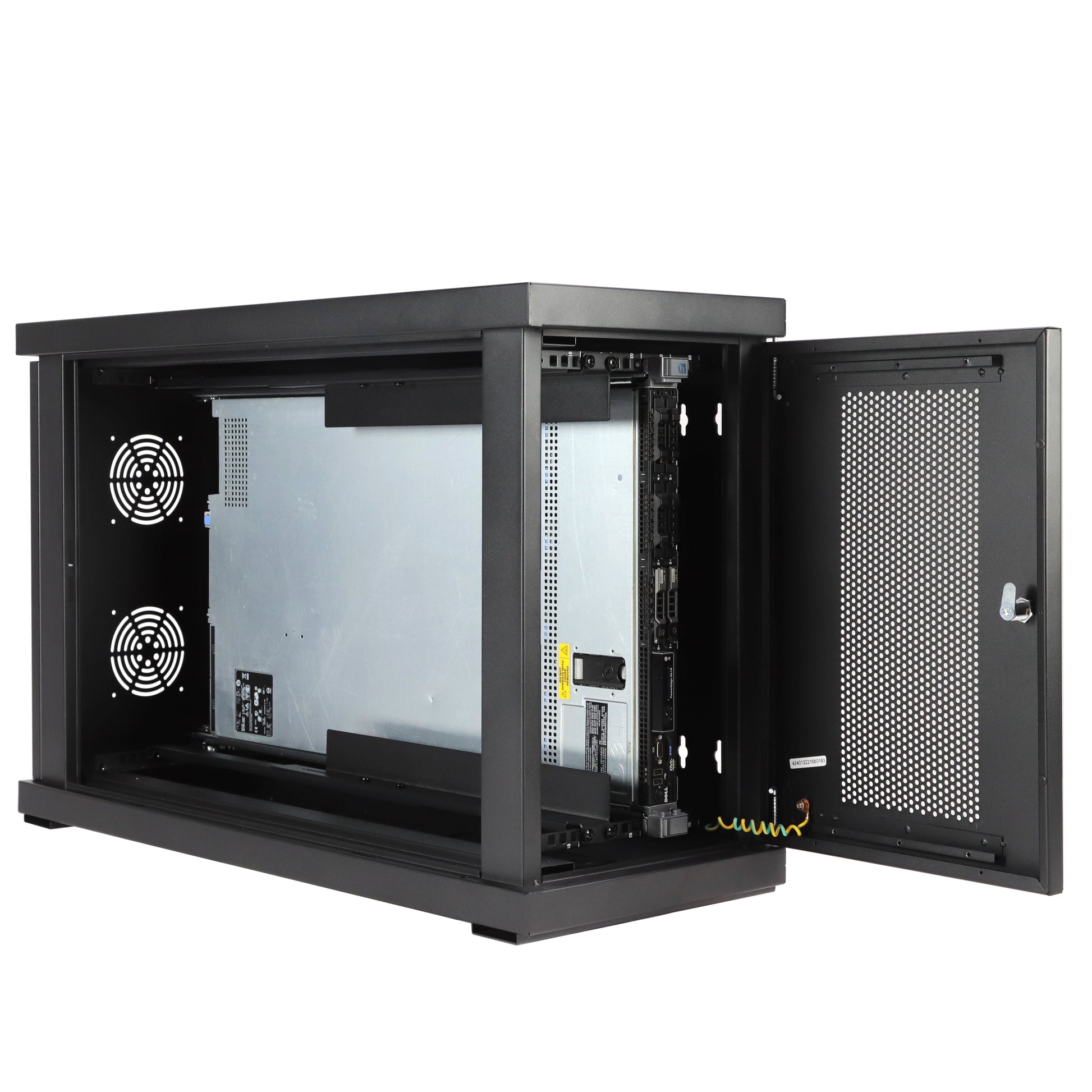

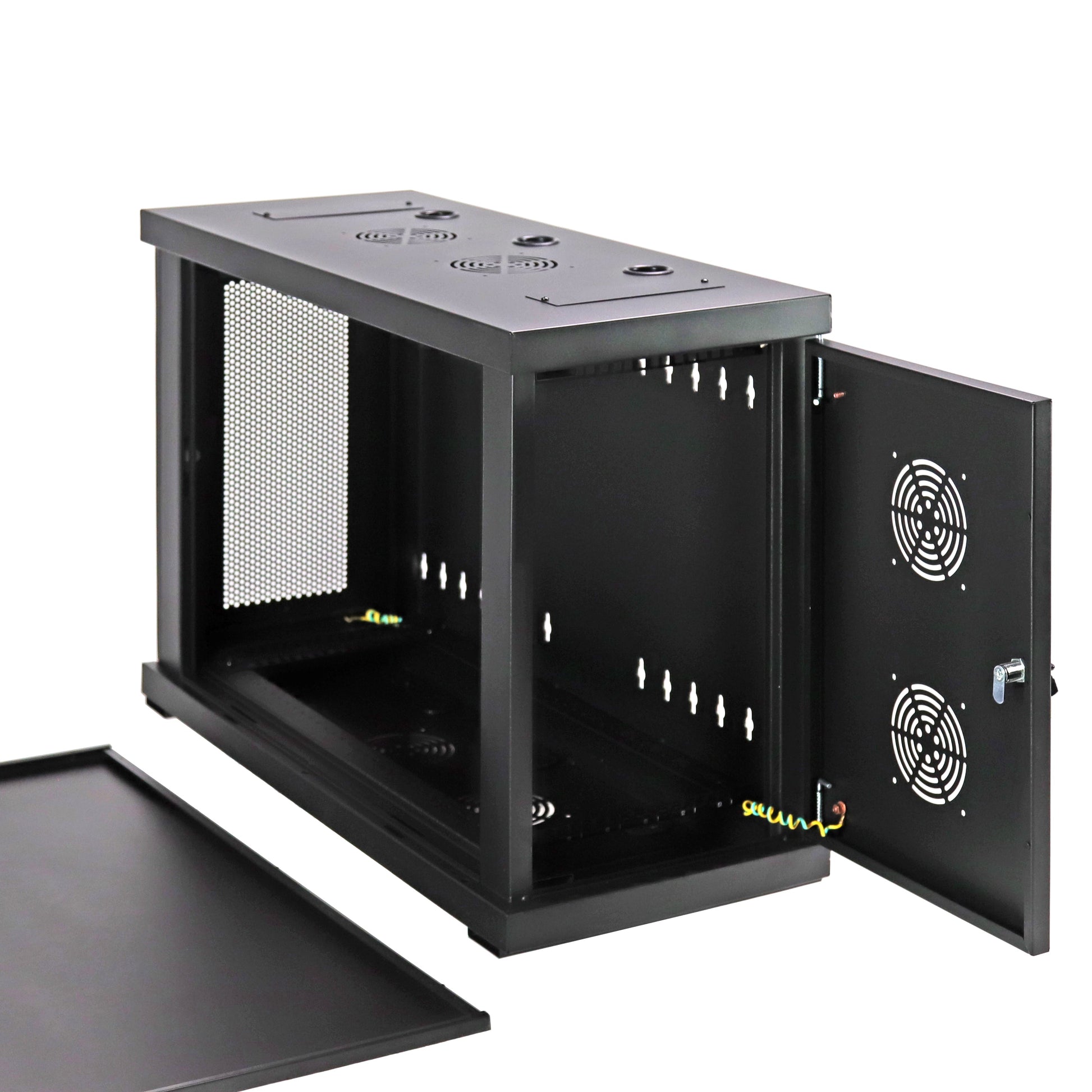

• The rear, top and bottom panels support installation of standard 120mm case fans to help remove warm air from the enclosure and draw in cool air by convection.

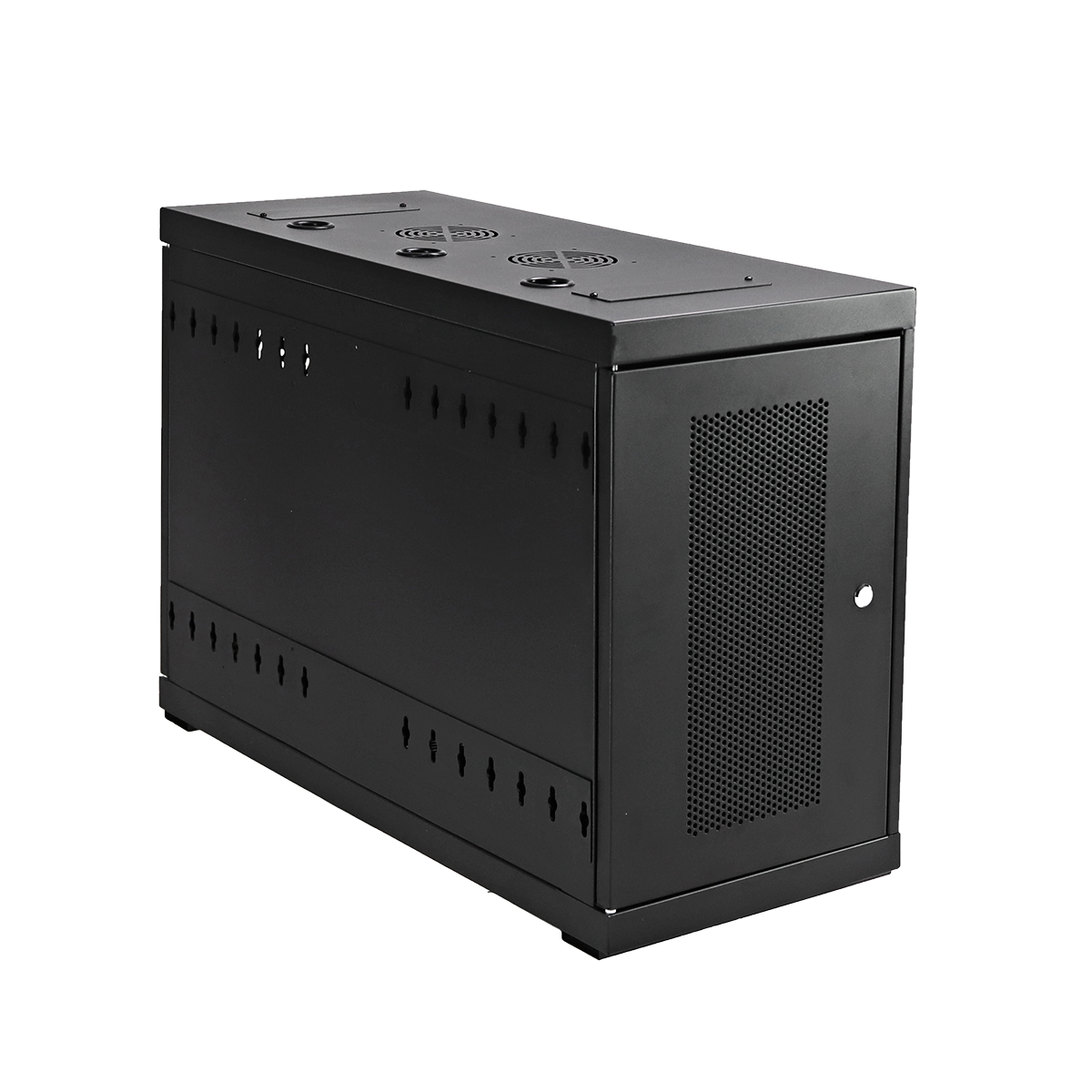

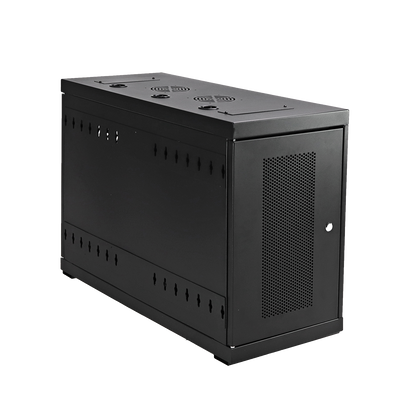

• The top and bottom panels include cable access ports for cable routing through the removable covers and grommets.

Quality and Versatility:

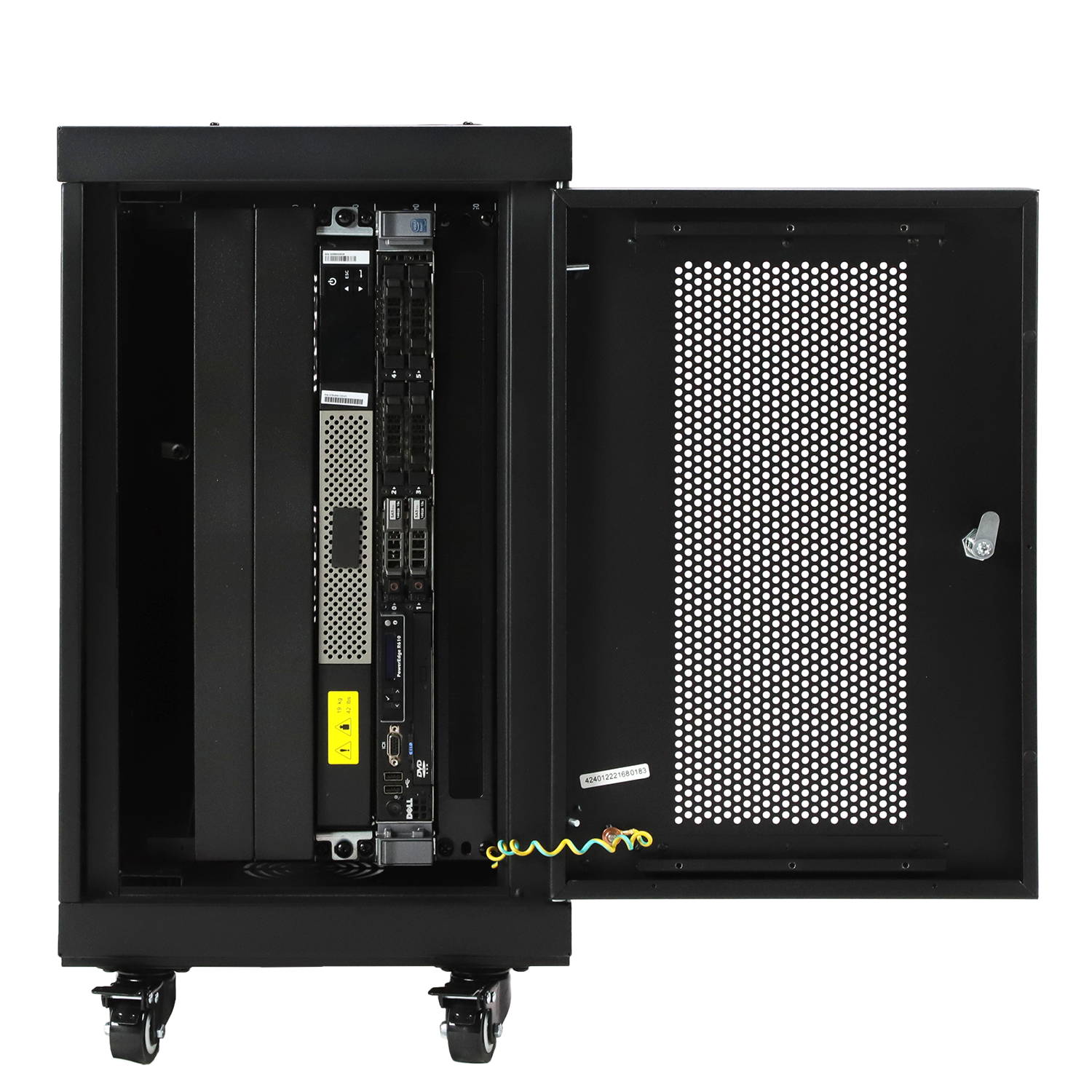

• The front and rear pairs of mounting rails can adjust quickly and conveniently in 3/4 inch (20mm) increments. Square mounting holes and included hardware support any standard 19-inch rack equipment.
• 4 post welded frame construction, heavy-duty SPCC cold-rolled steel with black RAL9005 powder coat finish makes rack resistant to scratching and rusting.
• Cable Entry and Cover: 4 x slots of 7in x 2.2in with covers; 6 x f2in (50mm) NEMA 1.5
• Fan Grille: 6 x 120mm fan mounting grille (fans are not included)

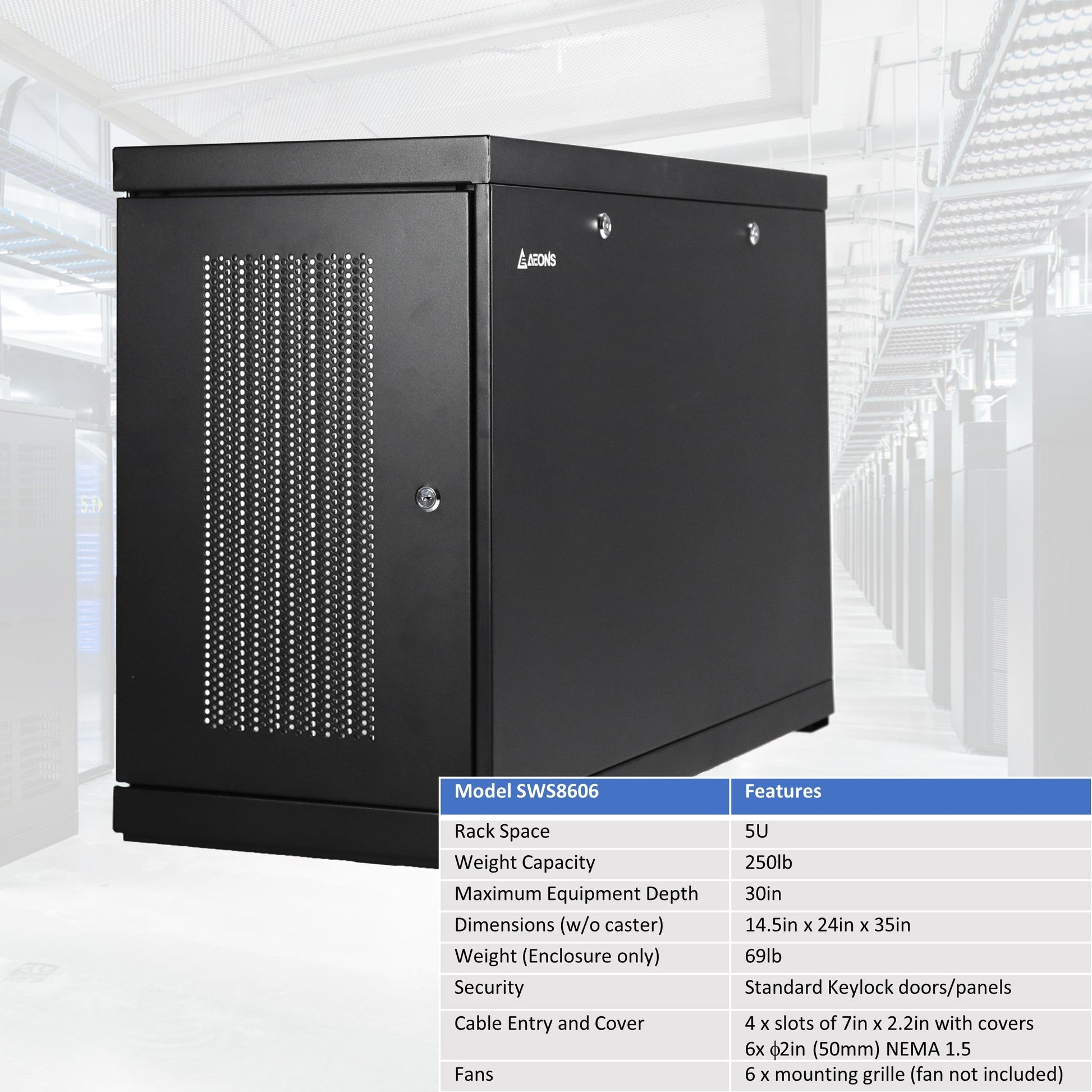

Dimensions: 14.5”W x 24”H x 35”D (w/o casters); Max Load Capacity: 250 lbs (Wall Mount).

Package includes: 1 x Wall-Mount cabinet / 1 x Hardware package / 2 x Keys.

Features

Compact Server Cabinet:

• Low-Profile Design with Extra depth provides an innovative way to deploy server and networking equipment at the Edge.

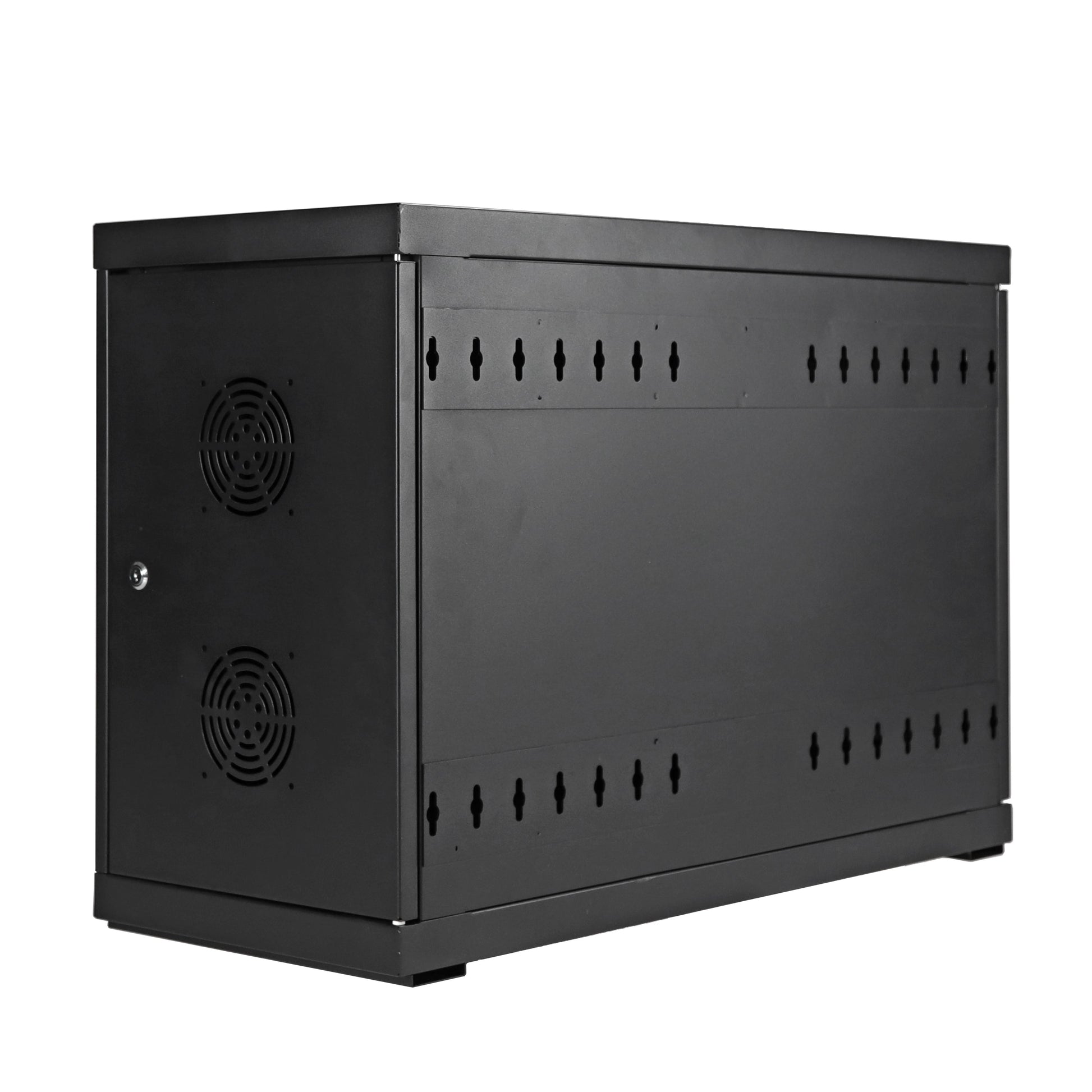

• Wall Mount (for mounting on its side) or Floor Standing with casters.
• The top and bottom panels include cable access ports for cable routing through the removable covers and grommets, designed for NEMA conduits.

Quality Construction and Equipment Security:

• Sturdy heavy-duty welded frame construction for high Weight Load Capacity.
• Enhanced security with lockable side, front and rear doors. Meet requirements towards Payment Card Industry (PCI) Data Security compliance.
• Perforated door and top/bottom panels promotes efficient airflow.

Easy to Mount and Hang:

• Fully assembled with hardware for easy mounting.
• The front and rear pairs of mounting rails can adjust quickly and conveniently in 3/4 inch (20mm) increments.
• Square mounting holes and included hardware support any standard 19-inch rack equipment.

Specification

Q&A

Resources

• Owner's Manual for Aeons SC-Series Wall-Mount Cabinet
