Description
Overview

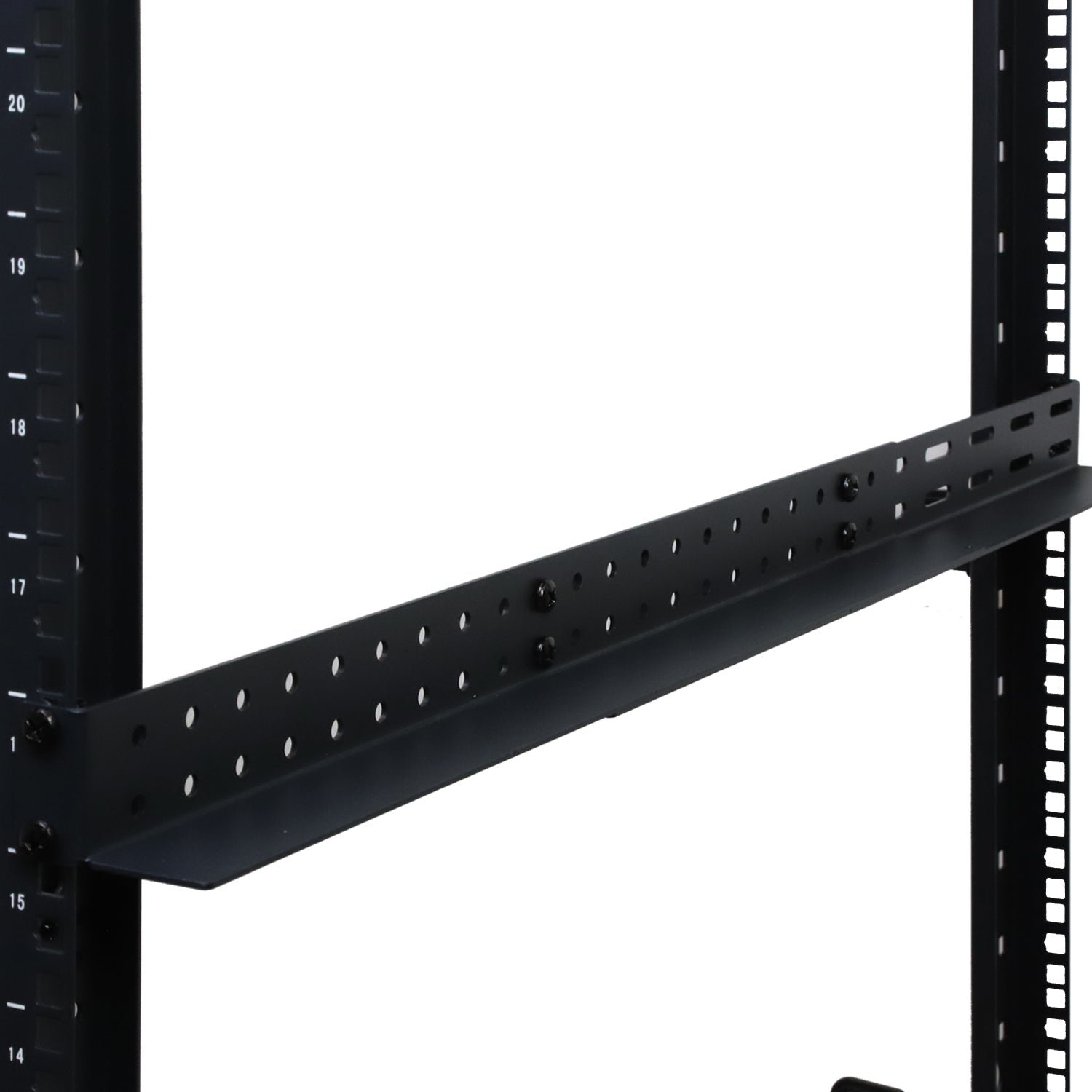

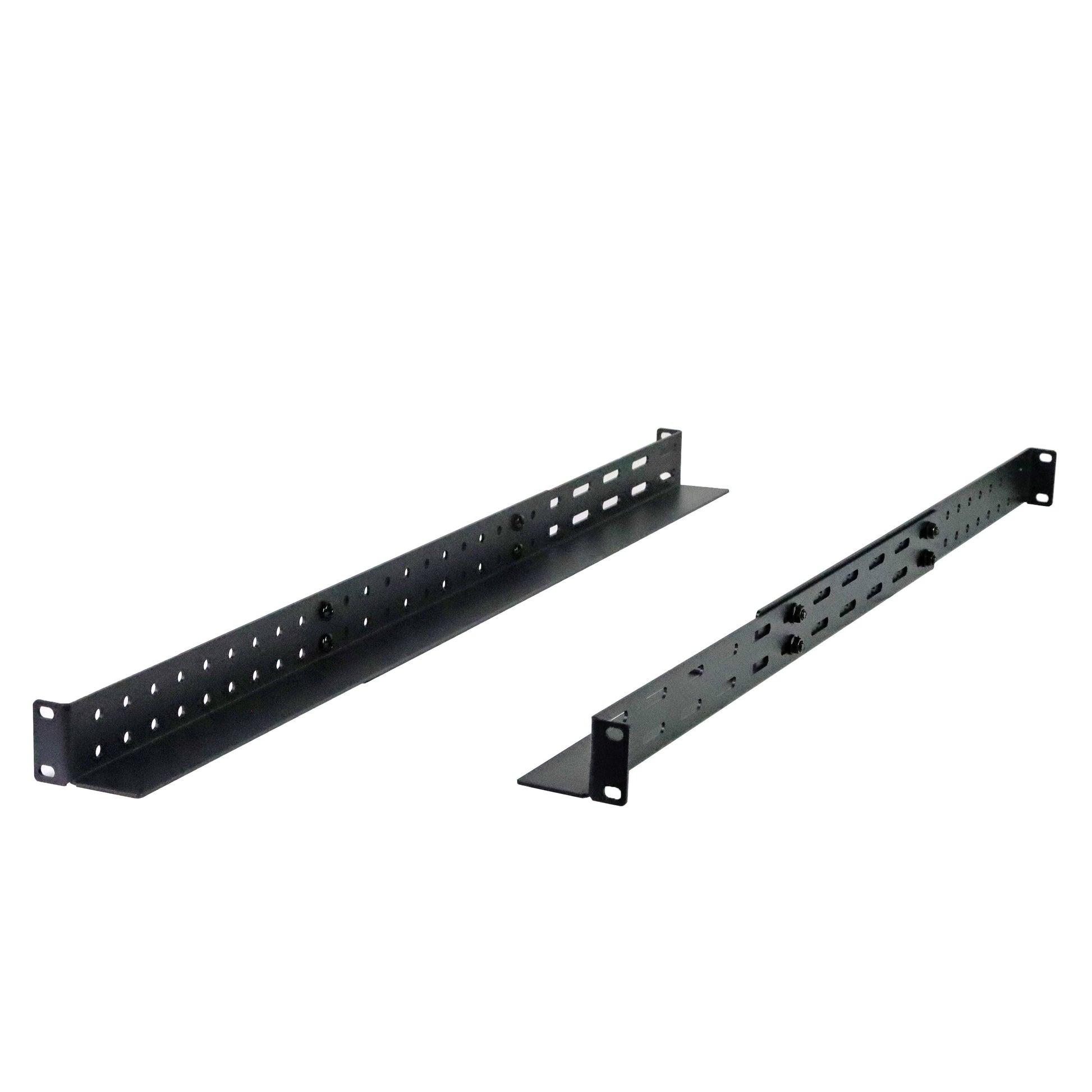

The Universal Heavy Duty Rack L-Rails are for use with all standard 19”, 23” and 30” Server Racks and Cabinets. Supply additional installation option for non-rack mountable equipment. Ideal for use with Apple, Dell, IBM, APC, Compaq and HP server/UPS equipment. Heavy duty construction with 14 gauge cold rolled steel to support at least 120 pounds and are finished with a satin black coating.
Adjustable mounting depth for variety of rack depth configurations. They occupy 1 RU of rack space, continuously adjustable mounting depth from 20 - 33.5 inch. Mounting screw kit is included.
Specifications:
- Color: Black
- Material: 2mm SPCC steel
- Rack Space: 1U
- Mounting depth: 20” to 33.5”
- Weight capability: 120 lbs.

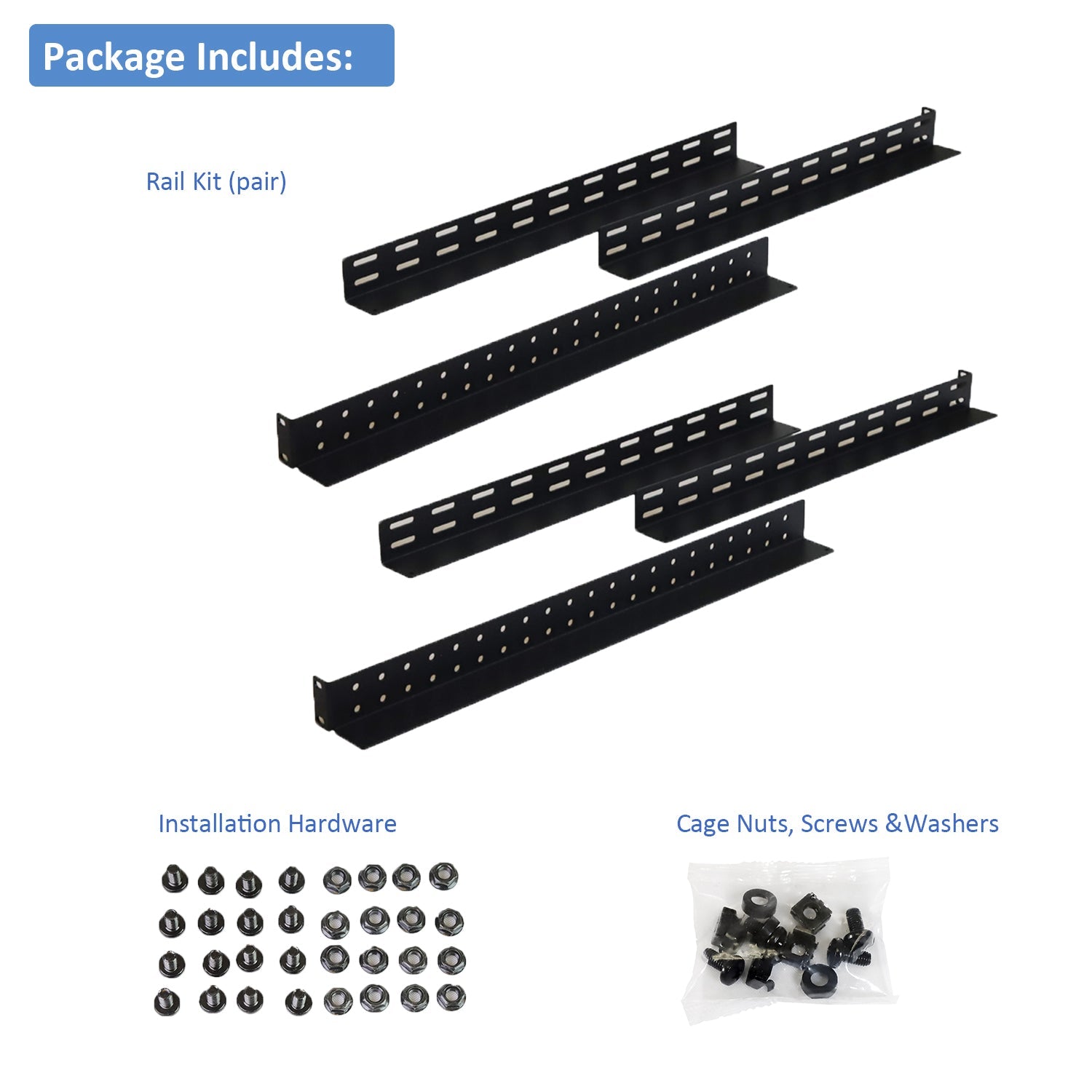

- Package includes: 1 set of 1U Adjustable Depth Rails, Mounting screw kit.
Features
Universal Fit and Compact Design
- Fits all standard 19”, 23” and 30” racks and cabinets. Both depth and width can be adjusted.
- 1 RU rack space compact form factor ideal for use with Apple, Dell, IBM, APC, HP server UPS equipment or peripherals to replace OEM rails.
Heavy-Duty and Optimized Design
- Heavy-duty construction and multi-fold design for exceptional stability.
- 14-gauge 2.0mm SPCC commercial cold-rolled steel with powder coating for long term durability.

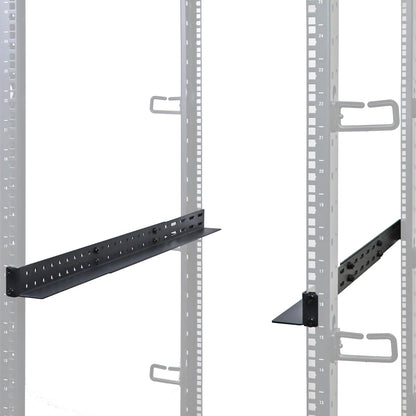

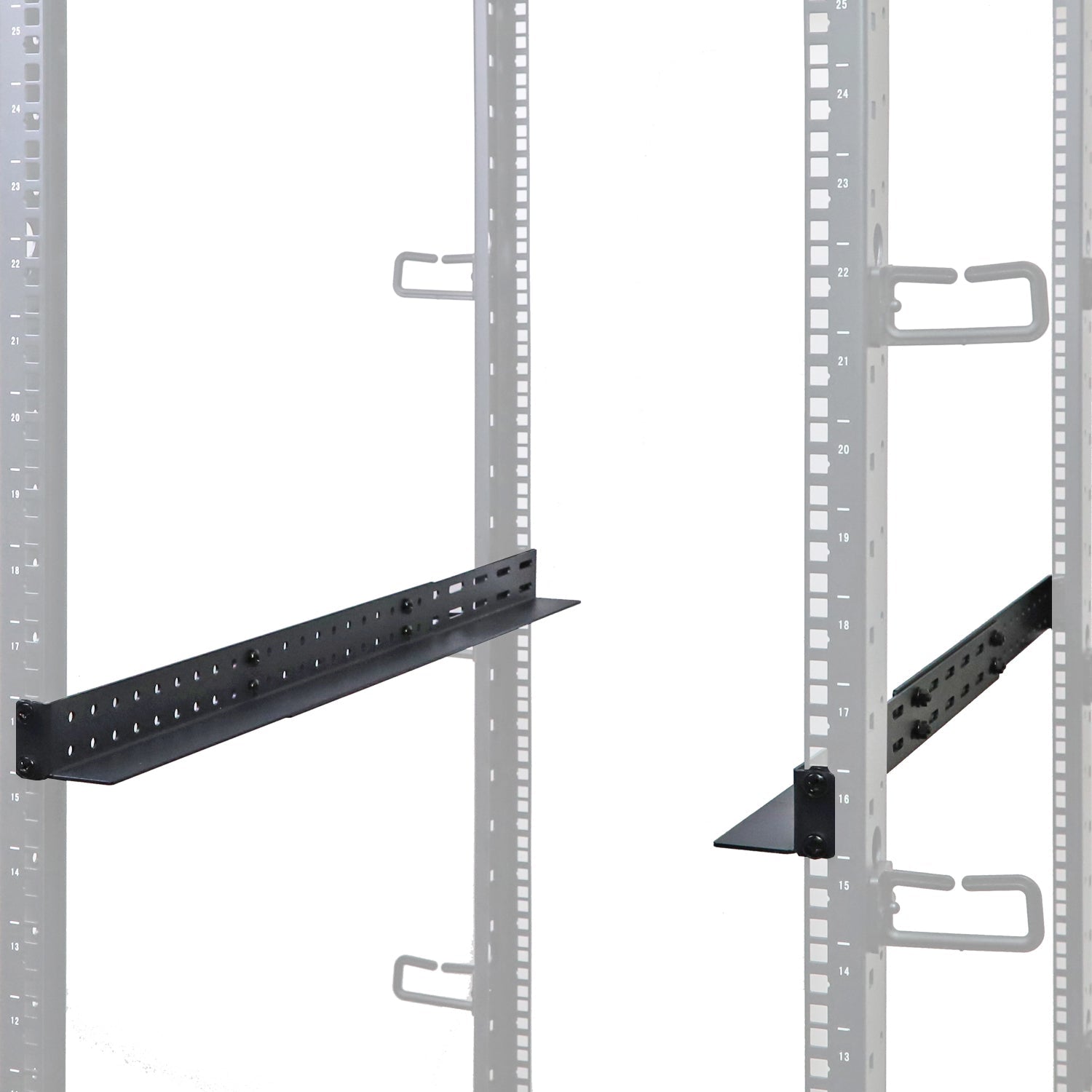

- Supports weight load up to 120 lbs. on a 4-post rack or cabinet.
- Continuously adjustable mounting depth providing flexibility to fit various installation of rack and cabinets.
Professional and Added Value
- Premium quality rails extend smoothly and allow easy installation and access to your device. Simply loose screws, slide to the desired depth and restore the screws.
- The rugged steel construction and matte scratch resistant black powder coating finish holds up to harsh industrial environments and help to keep your equipment safe.
Specification
|
Model |
SWA0106-560-B |
|
Type |
4-Post Rails |
|
Style |
Adjustable |
|
Rack Height |
1U |
|
Minimum Depth (in. / mm) |
22/ 550 |
|
Maximum Depth (in. / mm) |
40 / 1,016 |
|
Front Door Type |
N/A |
|
Load capacity (lbs) |
120 |
|
Number of vertical mounting rails |
N/A |
|
Number of L brackets |
2 |
|
Shelves |
N/A |
|
Cable access |
Top, Bottom |
|
Unit Dimensions (H x W x D / in.) |
|
|
Unit weight (lbs) |
18 |
|
Shipping Dimensions (H x W x D / in.) |
|
|
Shipping weight (lbs) |
|
|
Color |
Black |
|
Grounding lug |
Mp |
|
Grounding Wire kit |
No |
|
Built-in cable management |
No |
|
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E |
|
Warranty Period |
10-year limited warranty |
