Description
Overview

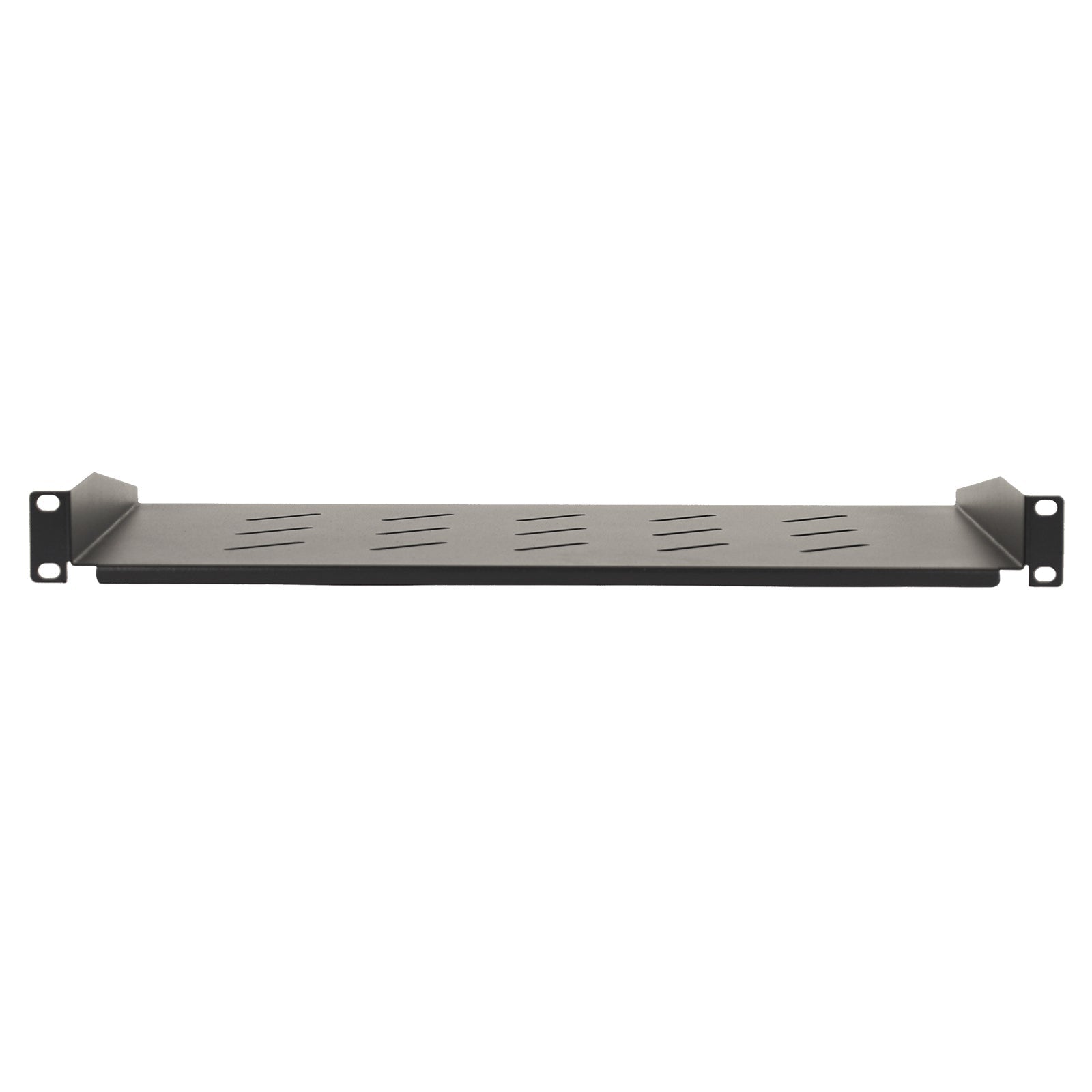

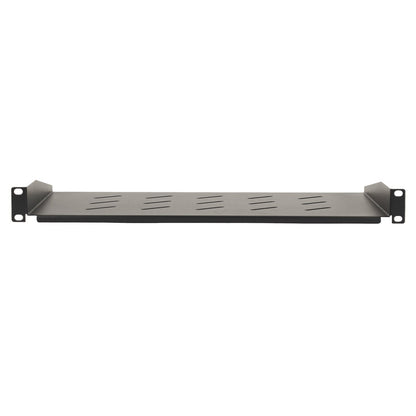

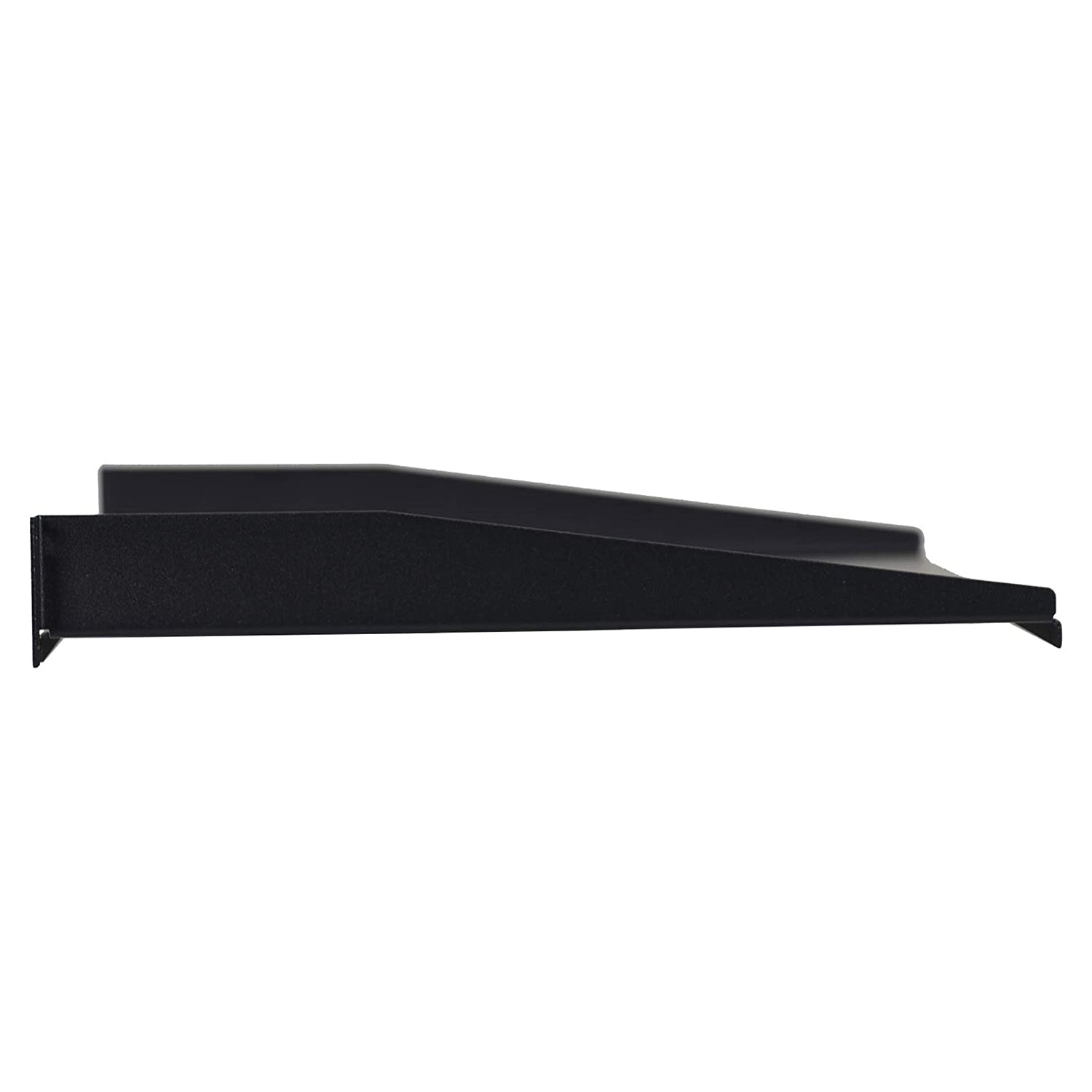

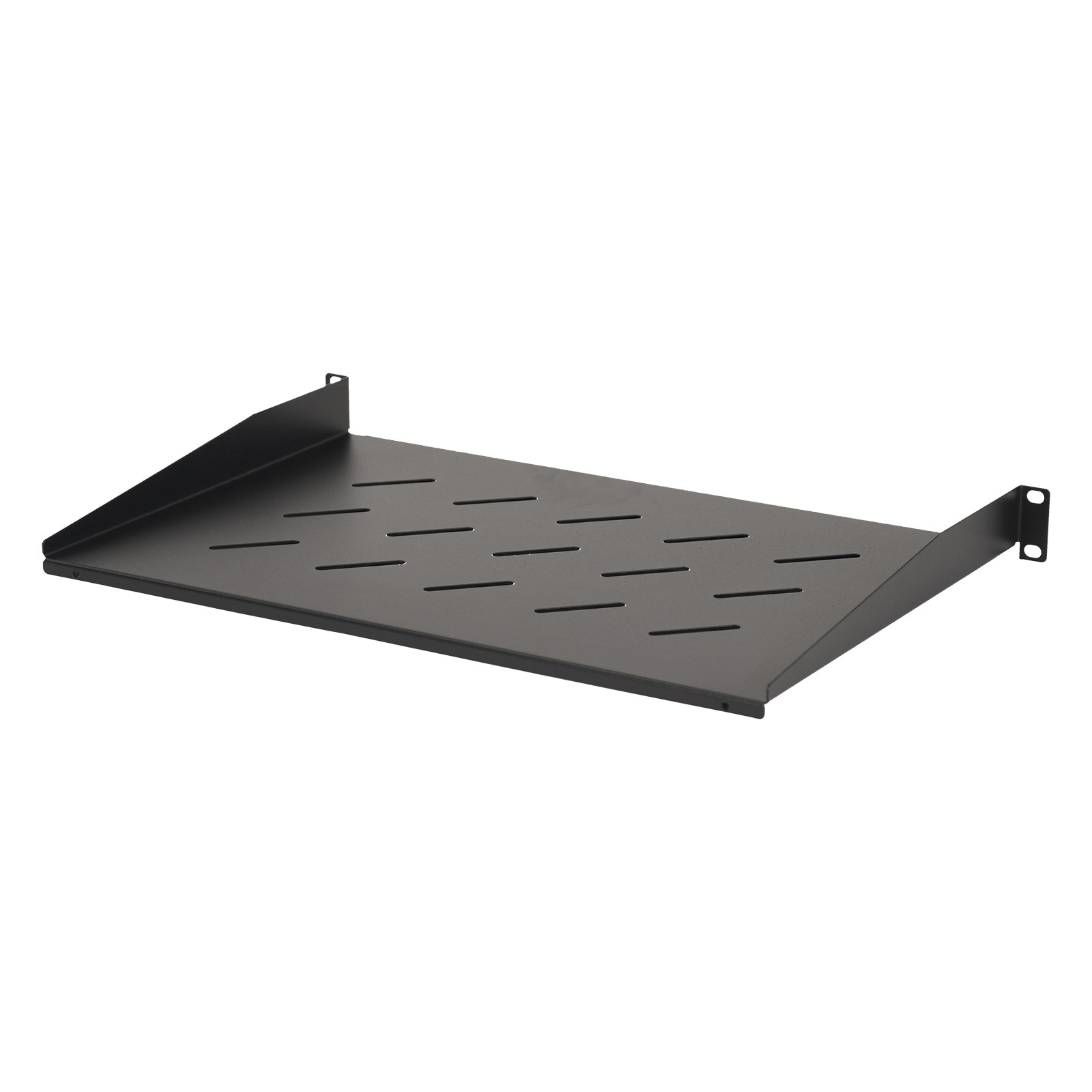

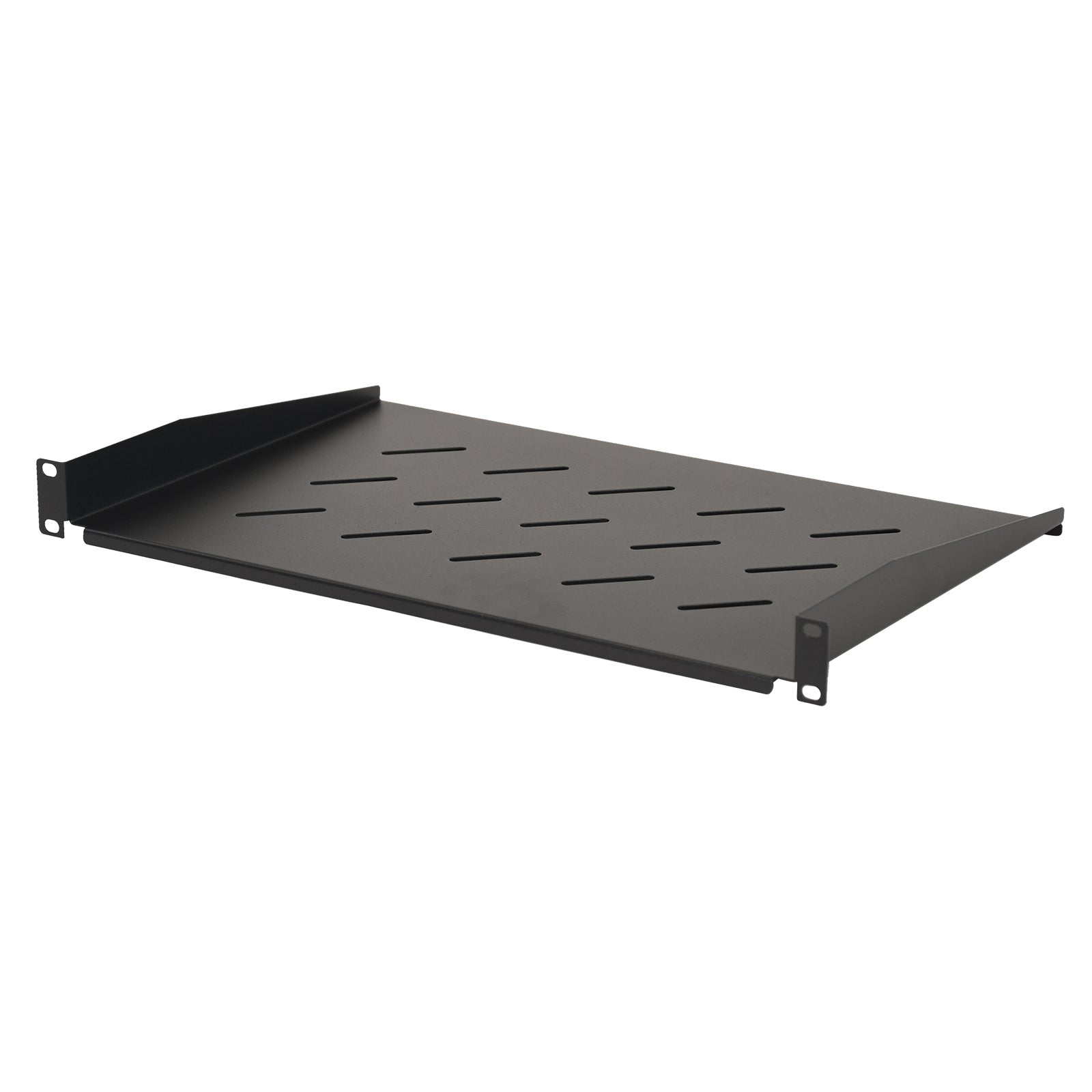

The SW Series Universal Rack Shelf is your perfect solution for mounting your date, network, audio video, and other non-rack mount equipment.
High quality SPCC Cold Rolled Steel with durable powder coating finish construction holds up to even the harshest industrial environments as a durable solution for easy installation and readily accessible of your equipment. Our uniquely designed vent hole pattern ensures maximal airflow and optimal weight distribution to keep your equipment safe and cool for long time use.
Available in 1U/2U heights and a variety of depth configurations.
- Fits all standard 19” racks and cabinets to hold various IT, network, and AV equipment
- Two mounting ears fixed shelf, SPCC cold rolled steel with powder coated finish
- Vented design maximizes airflow while maintaining structural integrity
- Dimensions: 1.75"H x 19"W x 12"D; 45 Pound weight capacity
- 1U height, 12” deep, includes screw and cage nut set

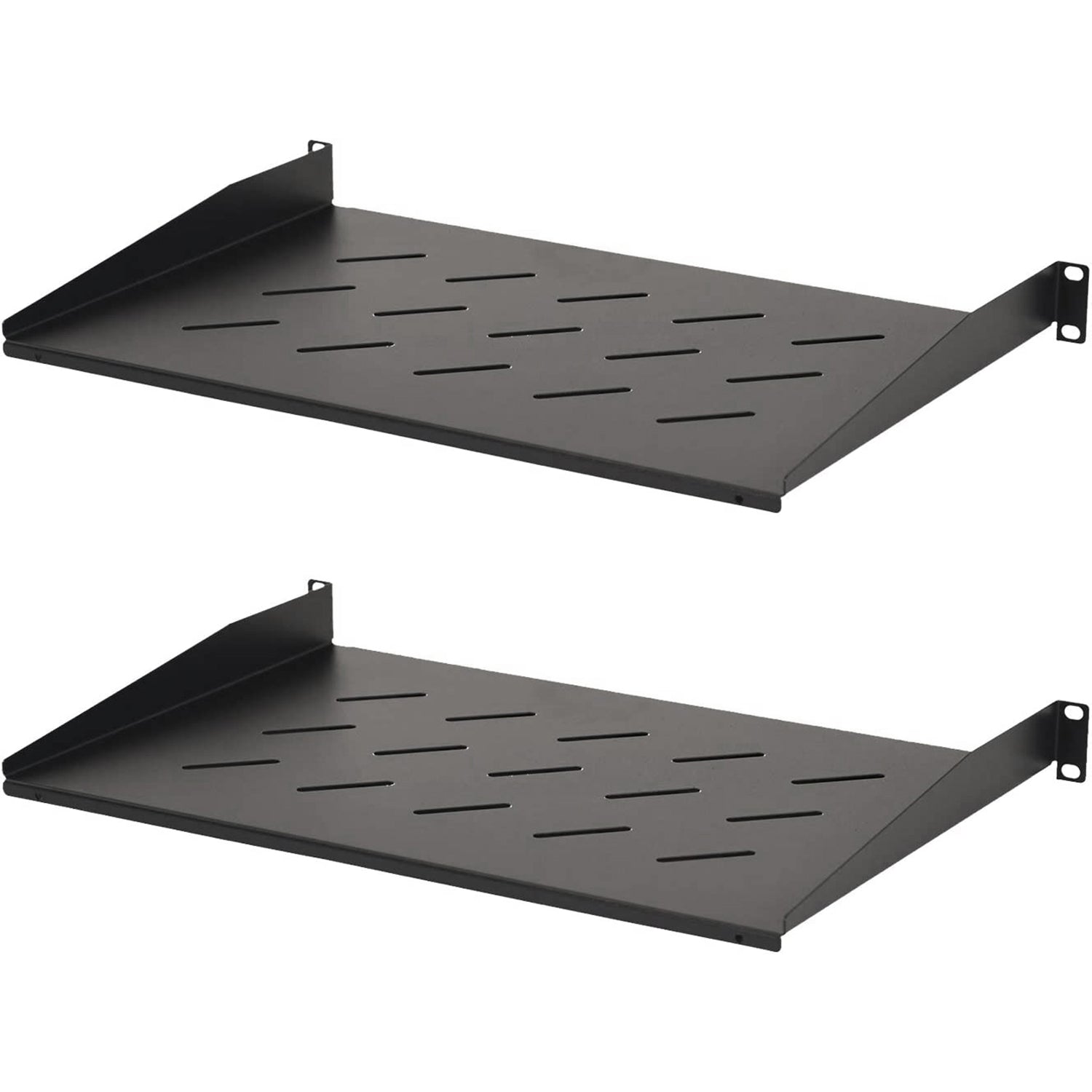

- Package includes 2 Shelves
Features
Universal Fit and Easy Installation
- Our universal rack shelf is ready to mount with included hardware to any standard 19-inch rack for your data, network, audio video, or other non-rack mount equipment installation.
- Available in 1U and 2U height with various depth configurations.
- Shelf comes with mounting screws, washers and cage nuts.
Heavy-Duty and Optimized Design
- Made of SPCC commercial cold-rolled steel, the sturdy rack shelf is a durable solution for your mission critical equipment rack.

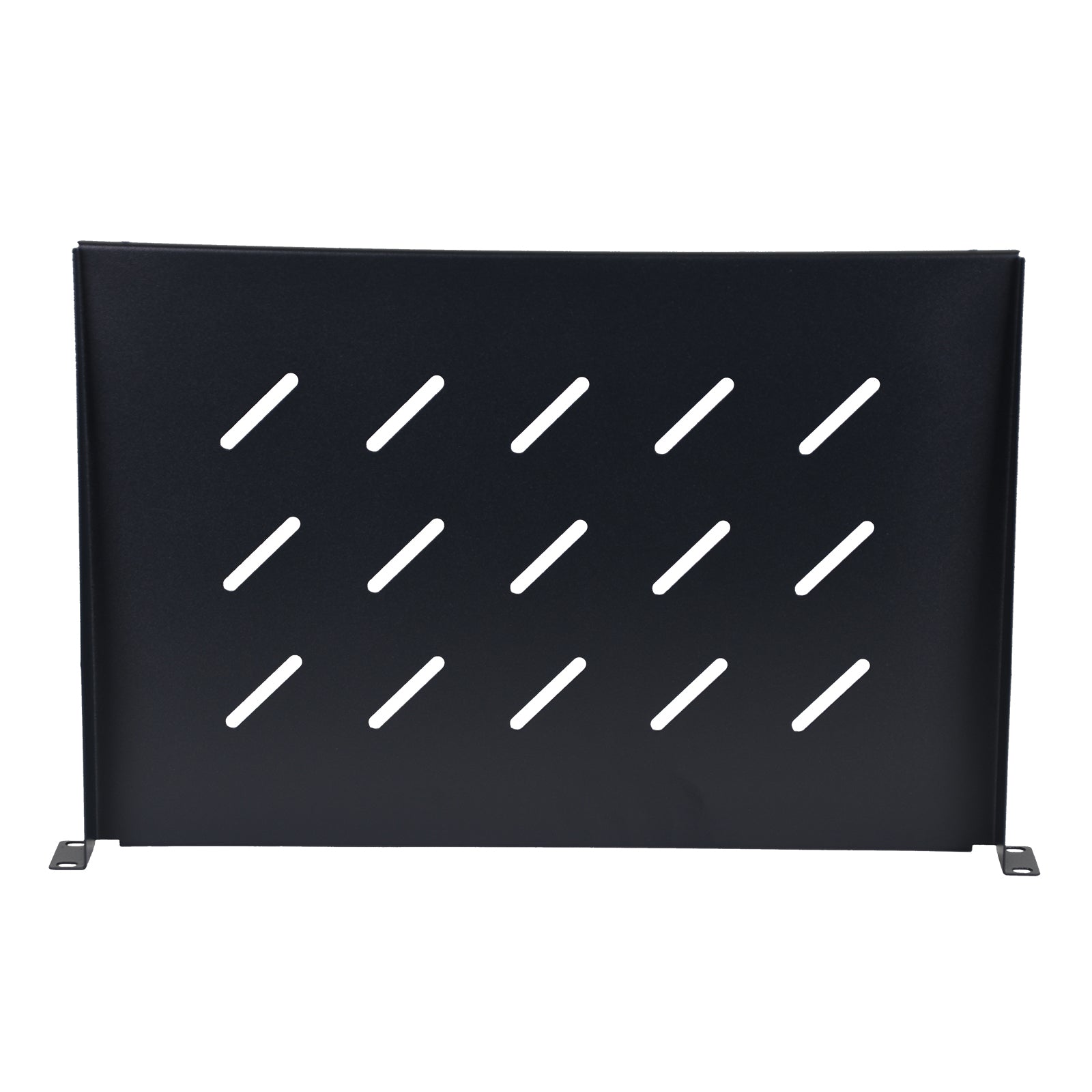

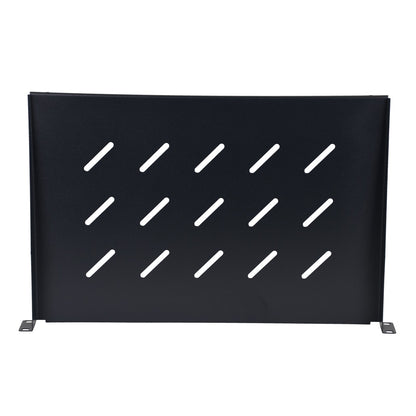

- The uniquely designed vent hole pattern on the shelf ensures maximal airflow, optimal weight distribution thus prevent hot spots or structural degradation over time.
Professional and Added Value
- The versatile design ensures our shelves work great for all your computer, AV, network and data equipment. The added ventilation helps to improve air flow ultimately extend the life of your equipment.
- The rugged steel construction and matte scratch resistant black powder coating finish holds up to harsh industrial environments and help to keep your equipment safe.
Specification
|
Model |
SW2P1USHELF-300 |
|
Type |
Shelves |
|
Style |
2-Post Shelves |
|
Rack Height |
1U |
|
Rack Depth (in. / mm) |
12 / 300 |
|
Maximum Device Depth (in. / mm) |
N/A |
|
Front Door Type |
N/A |
|
Load capacity (lbs) |
45 |
|
Number of vertical mounting rails |
N/A |
|
Number of L brackets |
N/A |
|
Shelves |
Yes |
|
Cable access |
N/A |
|
Unit Dimensions (H x W x D / in.) |
|
|
Unit weight (lbs) |
|
|
Shipping Dimensions (H x W x D / in.) |
|
|
Shipping weight (lbs) |
|
|
Color |
Black |
|
Grounding lug |
No |
|
Grounding Wire kit |
No |
|
Built-in cable management |
No |
|
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E |
|
Warranty Period |
10-year limited warranty |
