Description
Overview
Aeons Pro-Series Wall Mount Cabinets organize and secure EIA-standard 19-inch rackmount equipment in network closets, offices, classrooms, and other locations with limited floor space. Flat-packed for easy installation and quick deployment. Removable and reversible front door and removable side panel design, each with quick-release mechanism, allow easy access to equipment during installation and maintenance. The vented frames and optional cooling fans provide excellent air ventilation.- Fits rack equipment up to 15.5 in deep. Maximum load capacity of 132 lbs.
- Reinforced lockable door for increased security.
- Removable door and side panel; Cable pass-through on top and bottom.
- Rugged welding frame structure with ventilation at front, sides, top and bottom.
- Ships flat-packed with hardware package; Easy assembly required.
- 10-year limited warranty
Package Includes
- Wall mount network server cabinet (flat packed)
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- (12) M5.5 self-tapping screws
- (4) M5.5 Conical screws
- (2) Keys
- Wrench tool
- Owner’s manual
Features
Contemporary Aesthetic Design
- Save valuable workspaces; design for network wiring in closets, offices, classrooms, and other areas with limited floor space but needs to keep everything organized, secure and efficient.

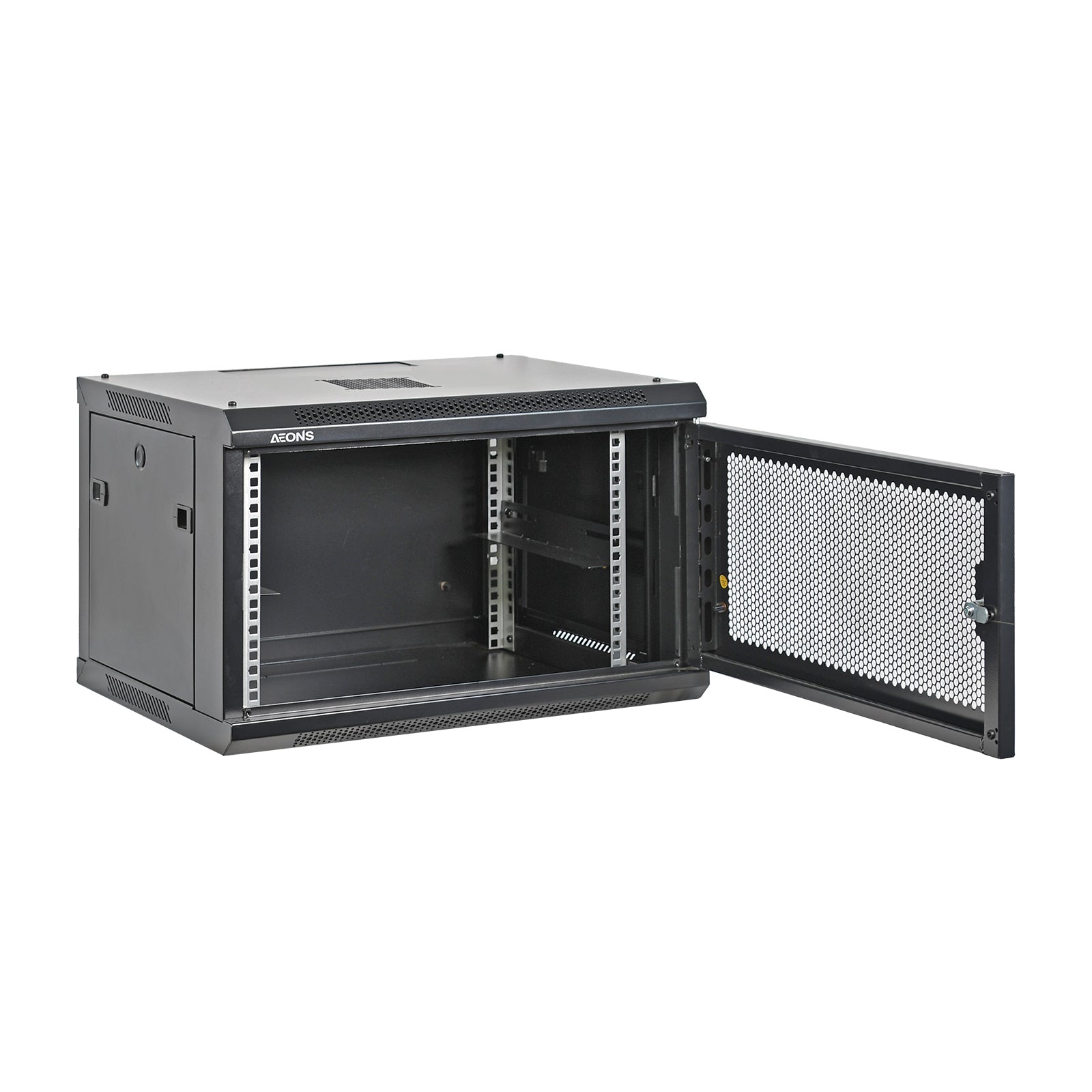

- Removable and reversible front door and removable side panel design, each with quick-release mechanism allows easy access to equipment.
- Wall mounting or floor standing with optional casters to turn it into a mobile rolling rack.
Quality Construction and Equipment Security
- Heavy-duty cold rolled steel and sturdy welded frame construction with durable powder coating finish.
- Reinforced, lockable front door and side panel (optional lock) ensure equipment security.
- The vented frames and optional cooling fans provide excellent air ventilation. Vented door with permeability up to 80%.
Easy installation and quick deployment
- Ergonomic knock-down design for quick and easy deployment and assembly to job sites.
- Adjustable vertical mounting rails can accommodate various depth rack equipment.
- Top and bottom panels have cable pass-through knockouts help keep cable neat and organized.
Specification
Model |
P6406 |
Type |
Enclosure |
Style |
Wall-Mount |
Rack Height |
6U |
Rack Depth (in. / mm) |
17.5 / 450 |
Maximum Device Depth (in. / mm) |
15.5 / 394 |
Front Door Type |
Vented |
Load capacity (lbs) |
132 |
Number of vertical mounting rails |
4 |
Number of L brackets |
2 |
Shelves |
No |
Cable access |
Top, Bottom |
Unit Dimensions (H x W x D / in.) |
14.5 x 23.5 x 17.5 |
Unit weight (lbs) |
35 |
Shipping Dimensions (H x W x D / in.) |
26 x 21 x 10 |
Shipping weight (lbs) |
41 |
Color |
Black |
Grounding lug |
Front, bottom and back panels |
Grounding Wire kit |
Yes |
Built-in cable management |
No |
Compliance |
RoHS, CE, PCI, EIA/ECA-310-E, IP20 Protection |
Warranty Period |
10-year limited warranty |
