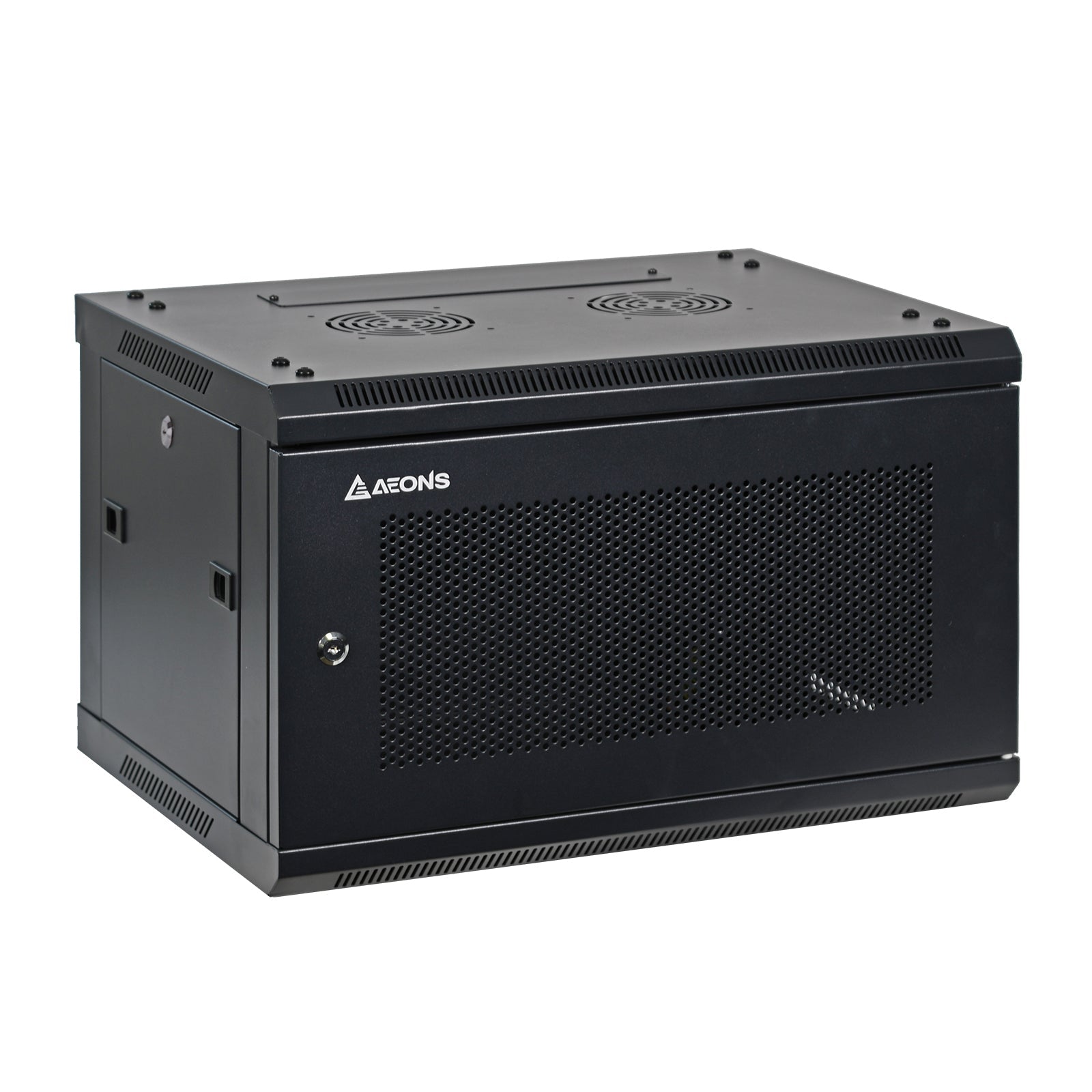

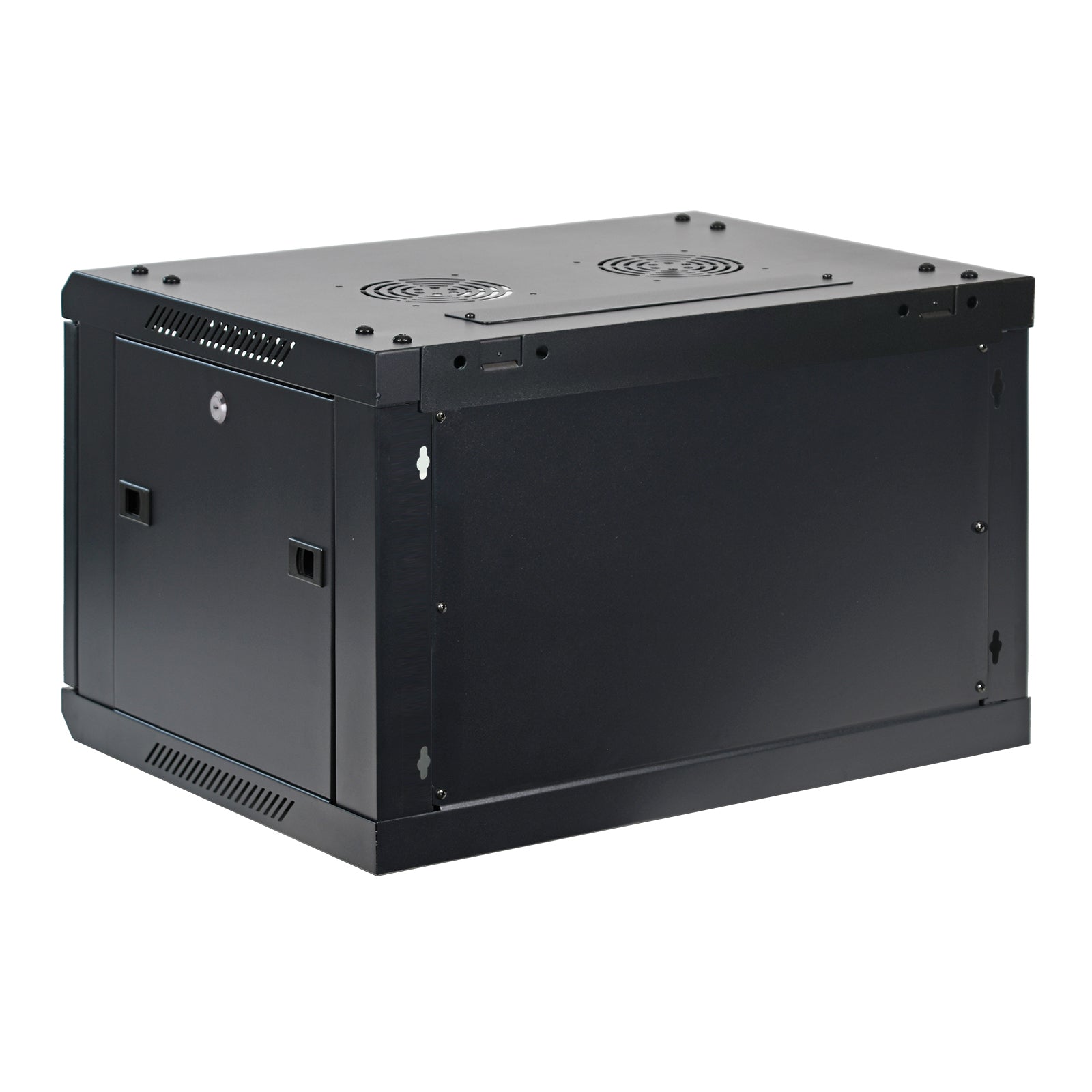

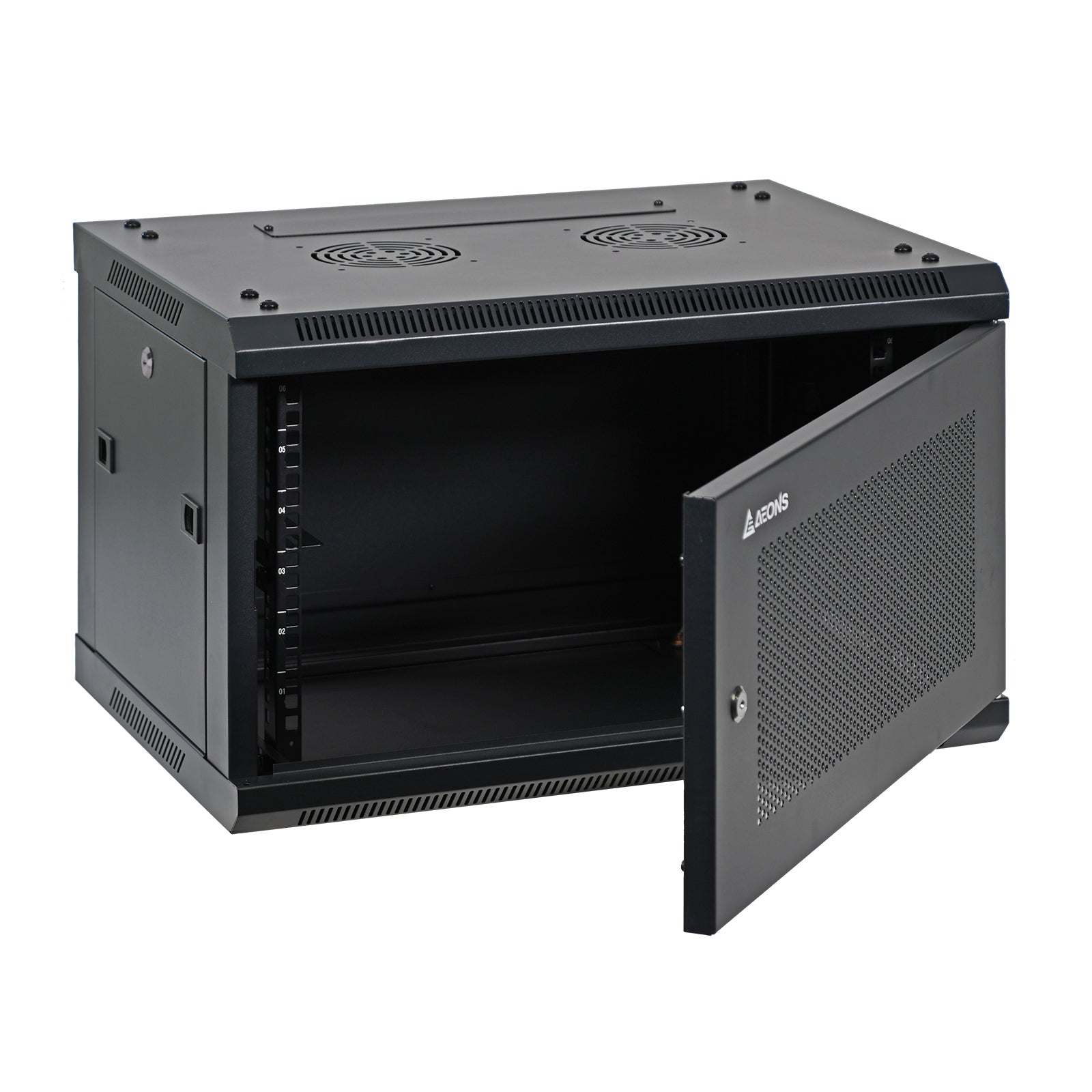

Aeons SP Seires 6U Wall-Mount Rack Cabinet, Switch-Depth, Vented Door

AEONSSKU: SP6406F
filler

Price:
$175.99
Stock:
Sold out

Description

Overview

Aeons Signature SP-Series Wall Mount Cabinets offer an elegant and versatile solution for organizing and securing EIA-standard 19-inch rackmount equipment in network closets, offices, classrooms, and other locations with limited floor space. Removable and reversible front door and removable side panel design, each with quick-release mechanism, allow easy access to equipment during installation and service. The vented frames and optional cooling fans provide excellent air ventilation.
  • Fits rack equipment up to 15.5 in deep. Maximum load capacity of 132 lbs.
  • Reinforced lockable door for increased security.

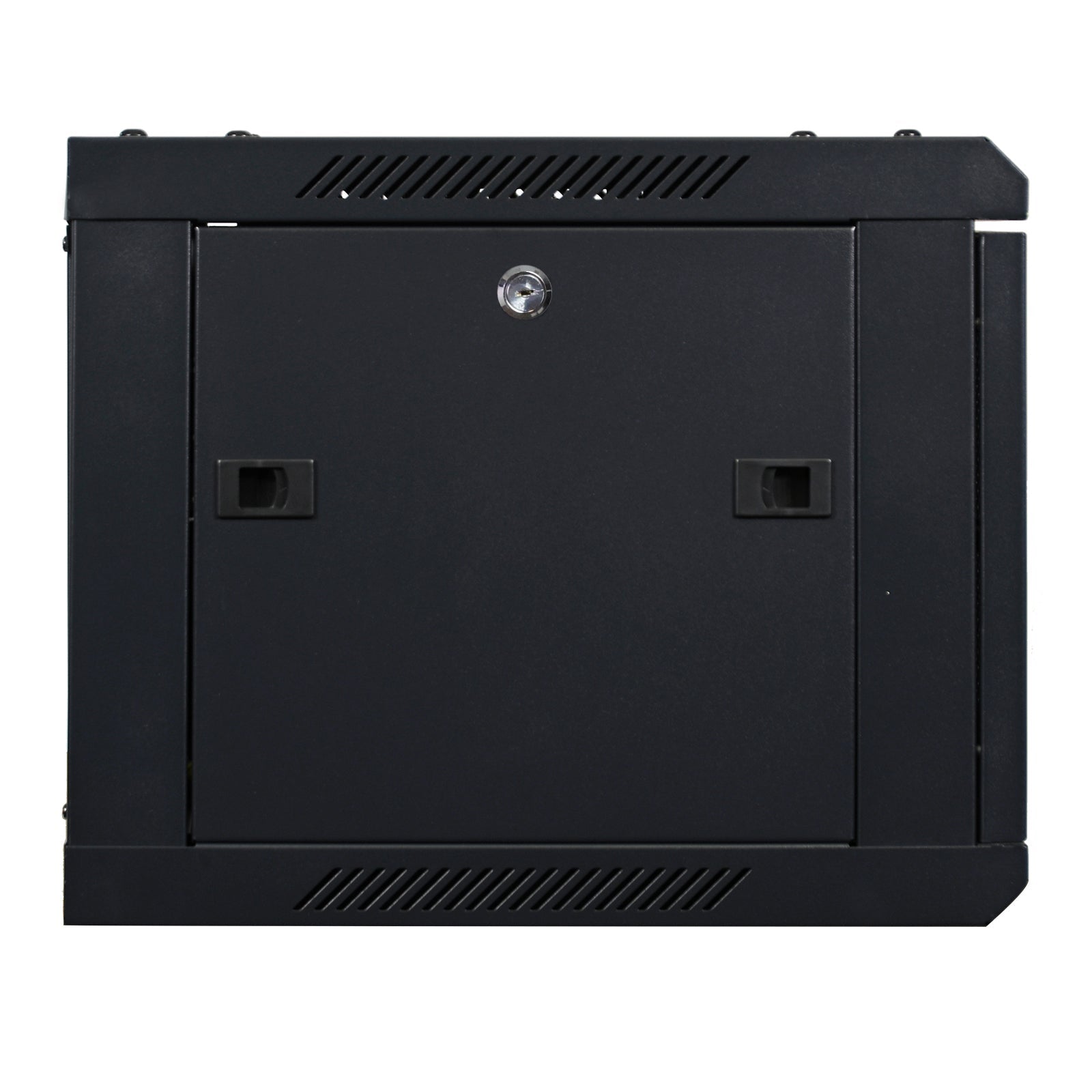

  • Removable door and side panel; Cable pass-through on top and bottom.
  • Rugged welding frame structure with ventilation at front, sides, top and bottom.
  • Ships flat-packed with hardware package; Easy assembly required.
  • 10-year limited warranty

Package Includes

  • Wall mount network server cabinet (flat packed)
  • (12) M6 screws
  • (12) M6 cage nuts
  • (12) M6 cup washers
  • (12) M5.5 self-tapping screws
  • (4) M5.5 Conical screws
  • (2) Keys
  • Wrench tool
  • Owner’s manual

Features

Contemporary Aesthetic Design

  • Save valuable workspaces; design for network wiring in closets, offices, classrooms, and other areas with limited floor space but needs to keep everything organized, secure and efficient.

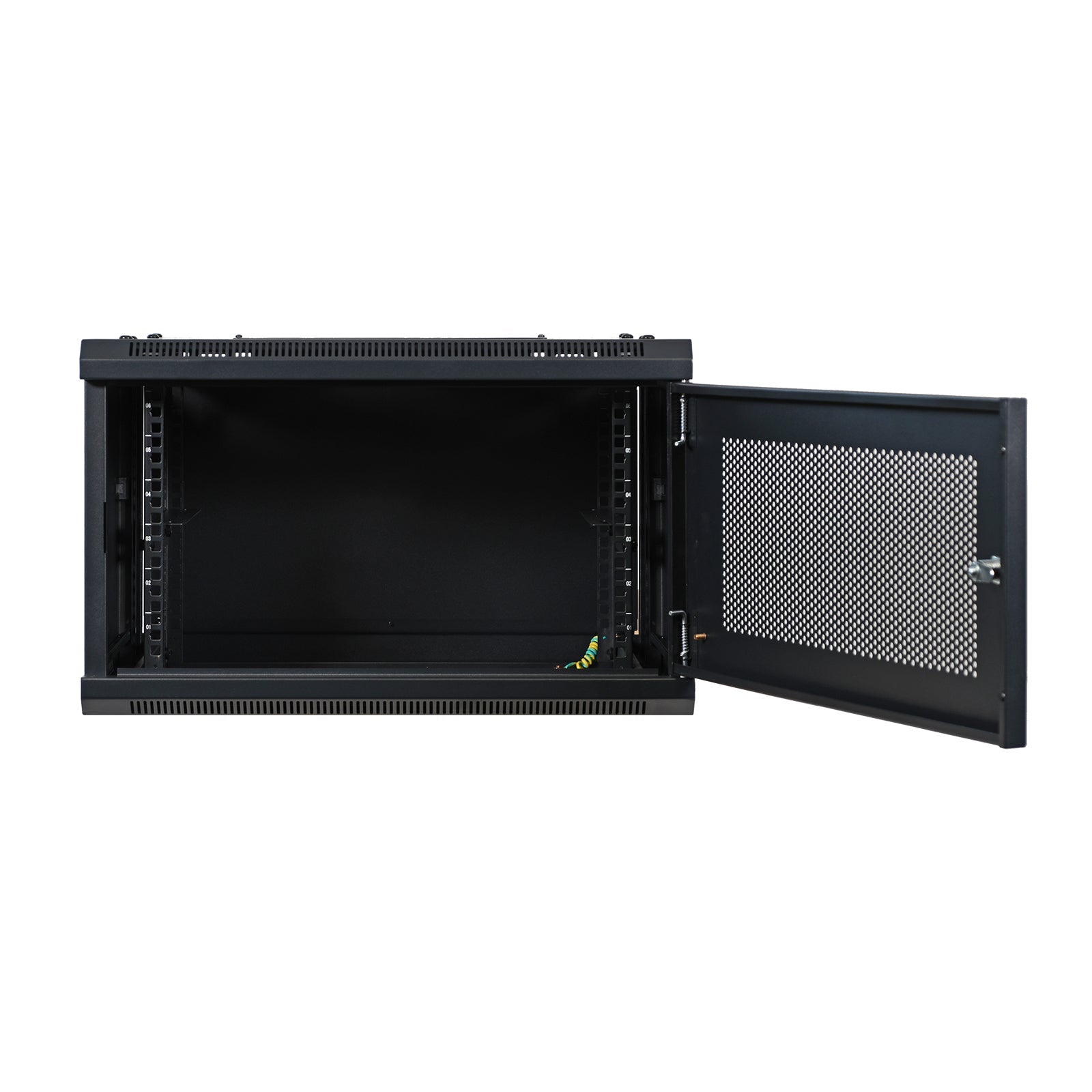

  • Removable and reversible front door and removable side panel design, each with quick-release mechanism allows easy access to equipment.

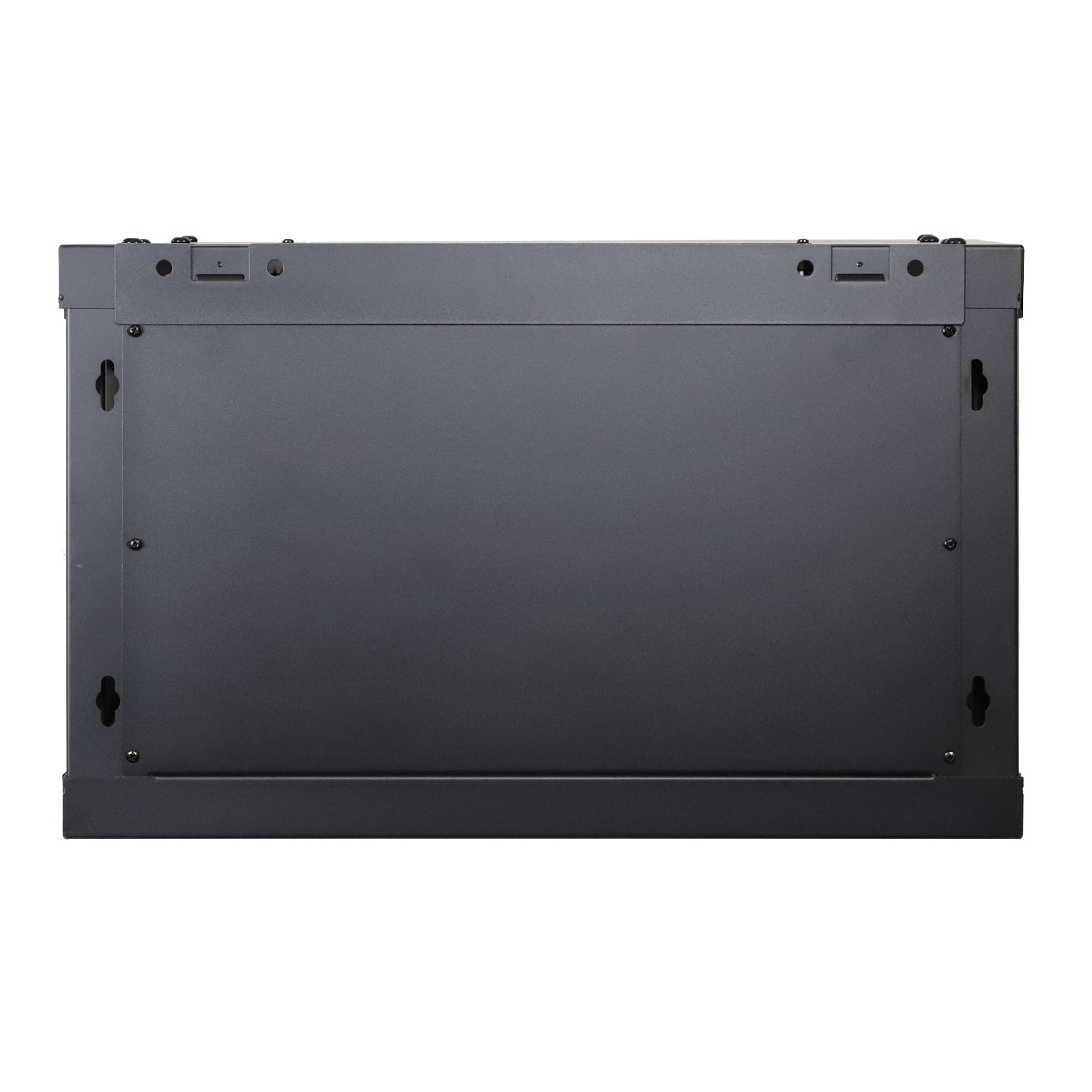

  • Wall mounting or floor standing with optional casters to turn it into a mobile rolling rack.

Quality Construction and Equipment Security

  • Heavy-duty cold rolled steel and sturdy welded frame construction with durable powder coating finish.
  • Reinforced, lockable front door and side panel (optional lock) ensure equipment security.

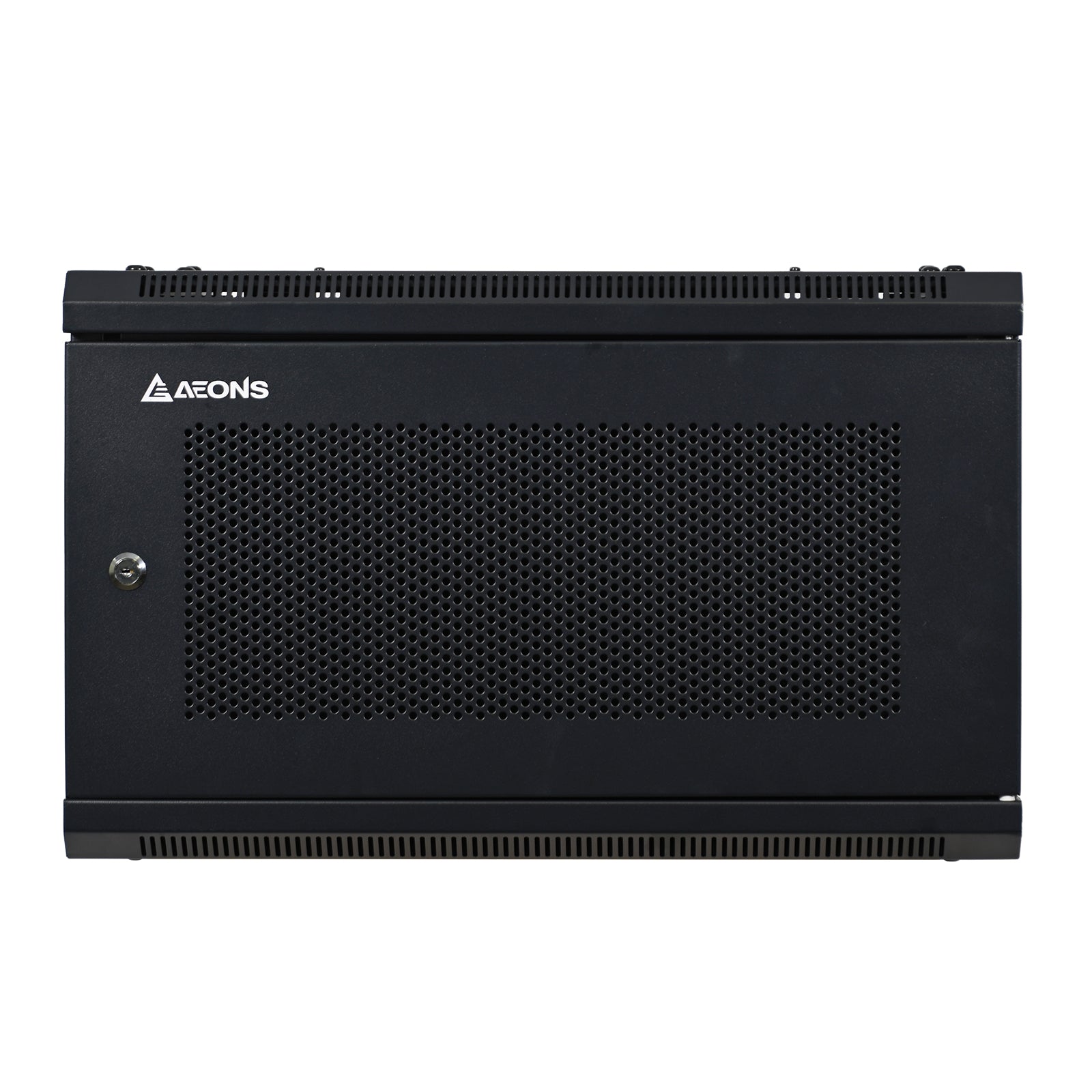

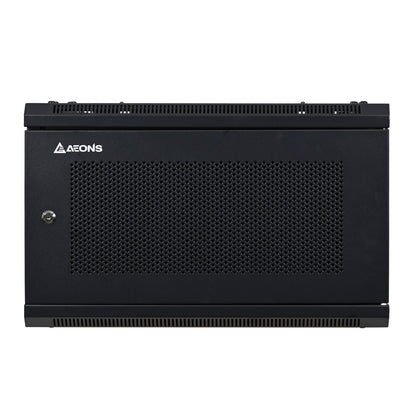

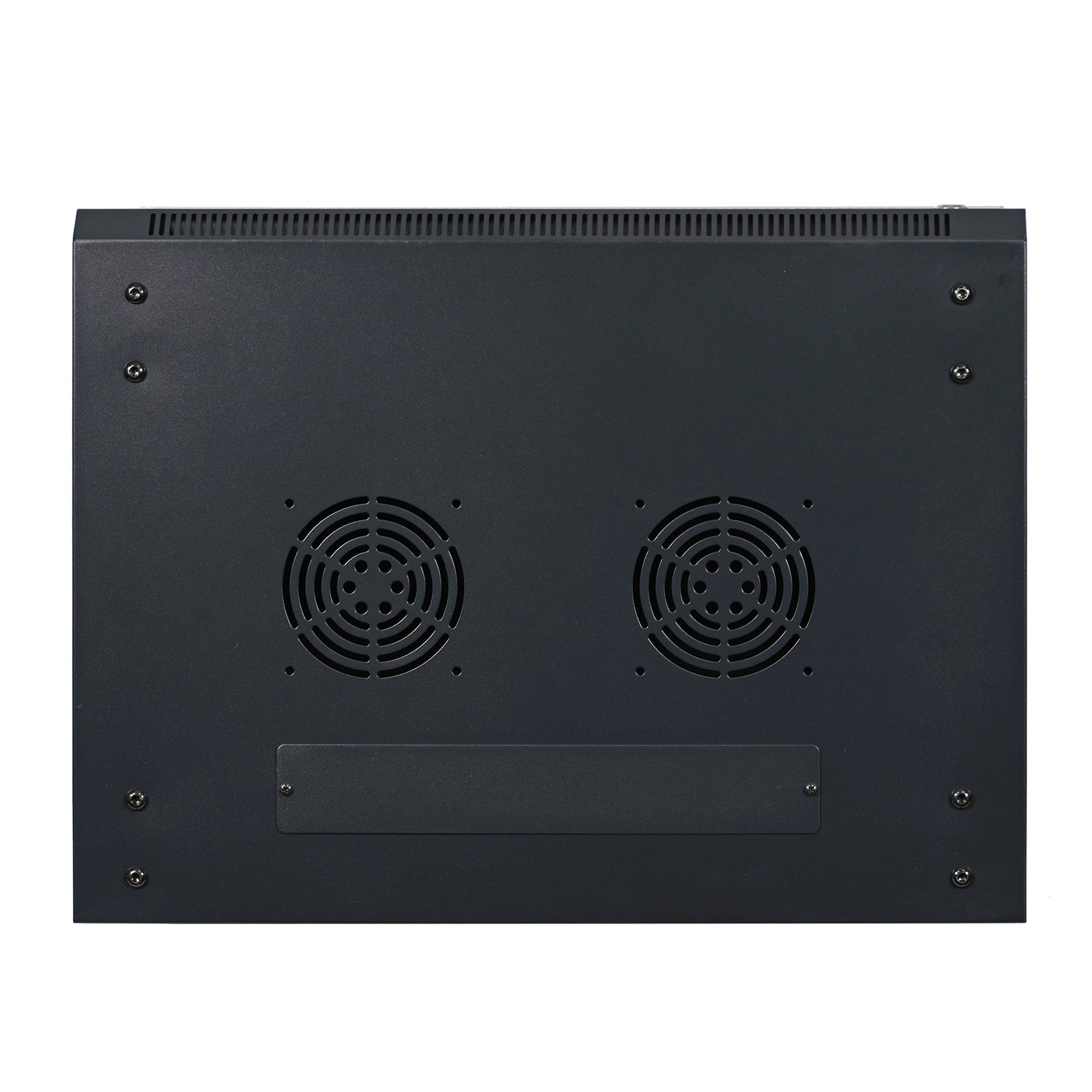

  • The vented frames and optional cooling fans provide excellent air ventilation. Vented door with permeability up to 80%.

Easy installation and quick deployment

  • Ergonomic knock-down design for quick and easy deployment and assembly to job sites.

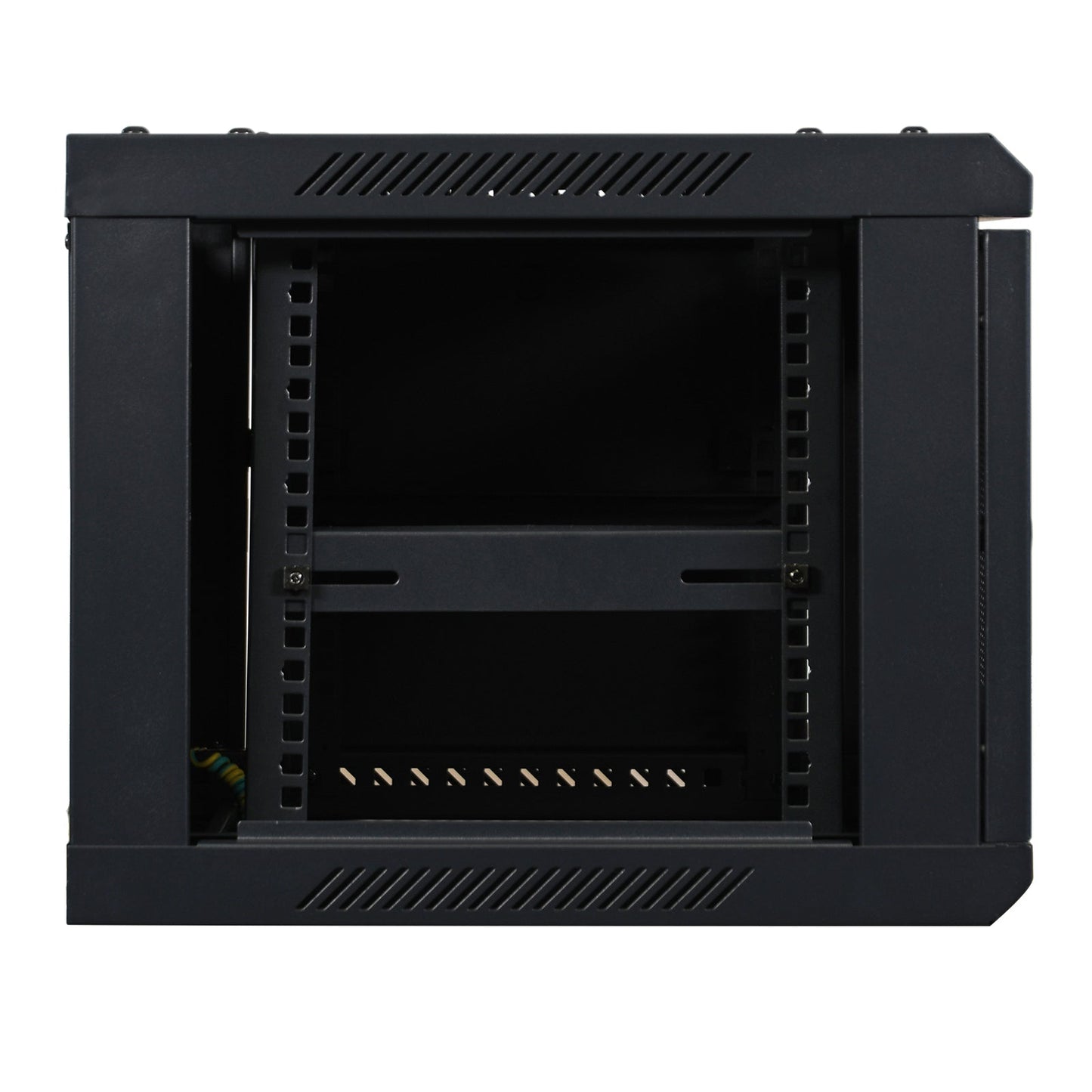

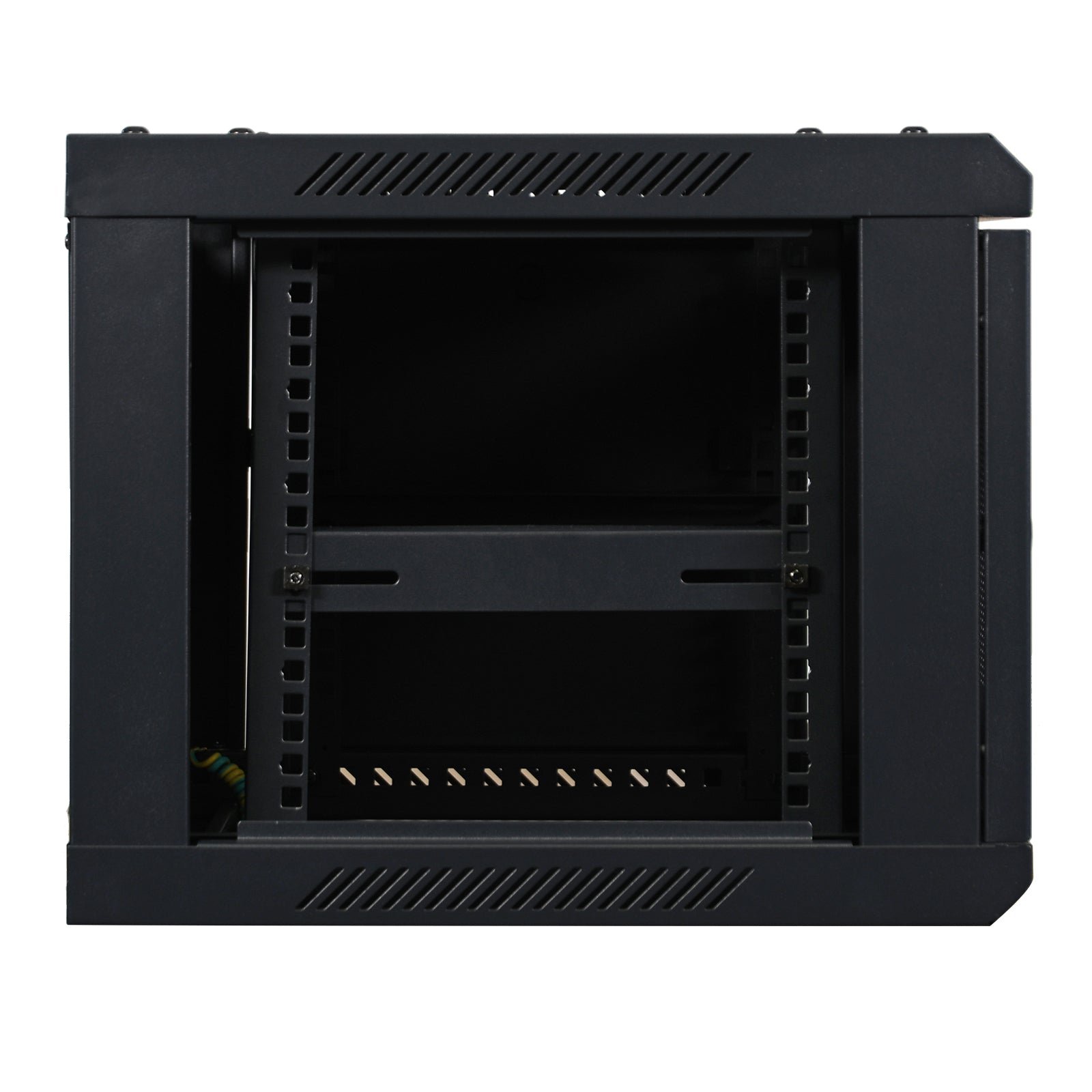

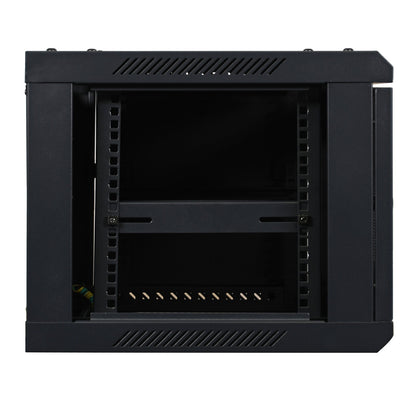

  • Adjustable vertical mounting rails can accommodate various depth rack equipment.
  • Top and bottom panels have cable pass-through knockouts help keep cable neat and organized.

Specification

Model

SP6406F

Type

Enclosure

Style

Wall-Mount

Rack Height

6U

Rack Depth (in. / mm)

17.5 / 450

Maximum Device Depth (in. / mm)

15.5 / 394

Front Door Type

Vented

Load capacity (lbs)

132

Number of vertical mounting rails

4

Number of L brackets

2

Shelves

No

Cable access

Top, Bottom

Unit Dimensions (H x W x D / in.)

14.5 x 23.5 x 17.5

Unit weight (lbs)

33

Shipping Dimensions (H x W x D / in.)

26 x 20 x 7

Shipping weight (lbs)

40

Color

Black

Grounding lug

Front, bottom and back panels

Grounding Wire kit

Yes

Built-in cable management

No

Compliance

RoHS, CE, PCI, EIA/ECA-310-E, IP20 Protection

Warranty Period

10-year limited warranty
